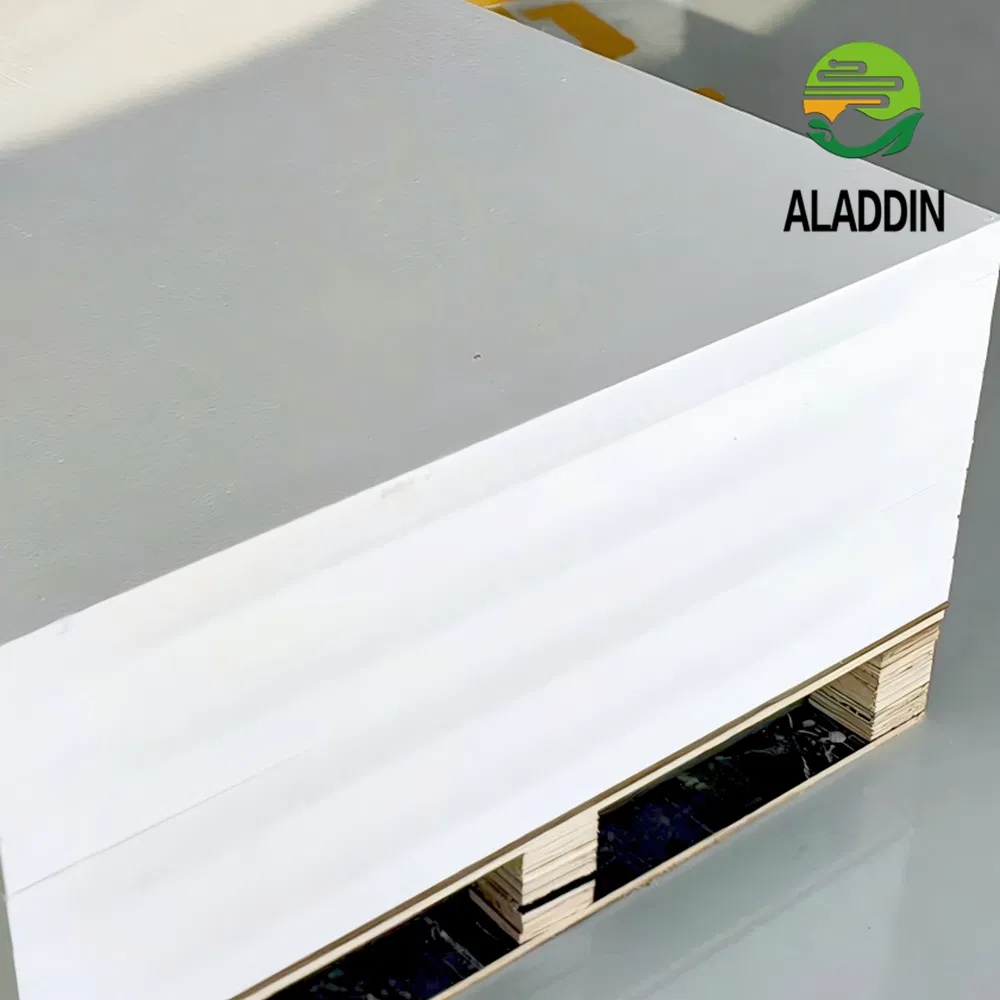

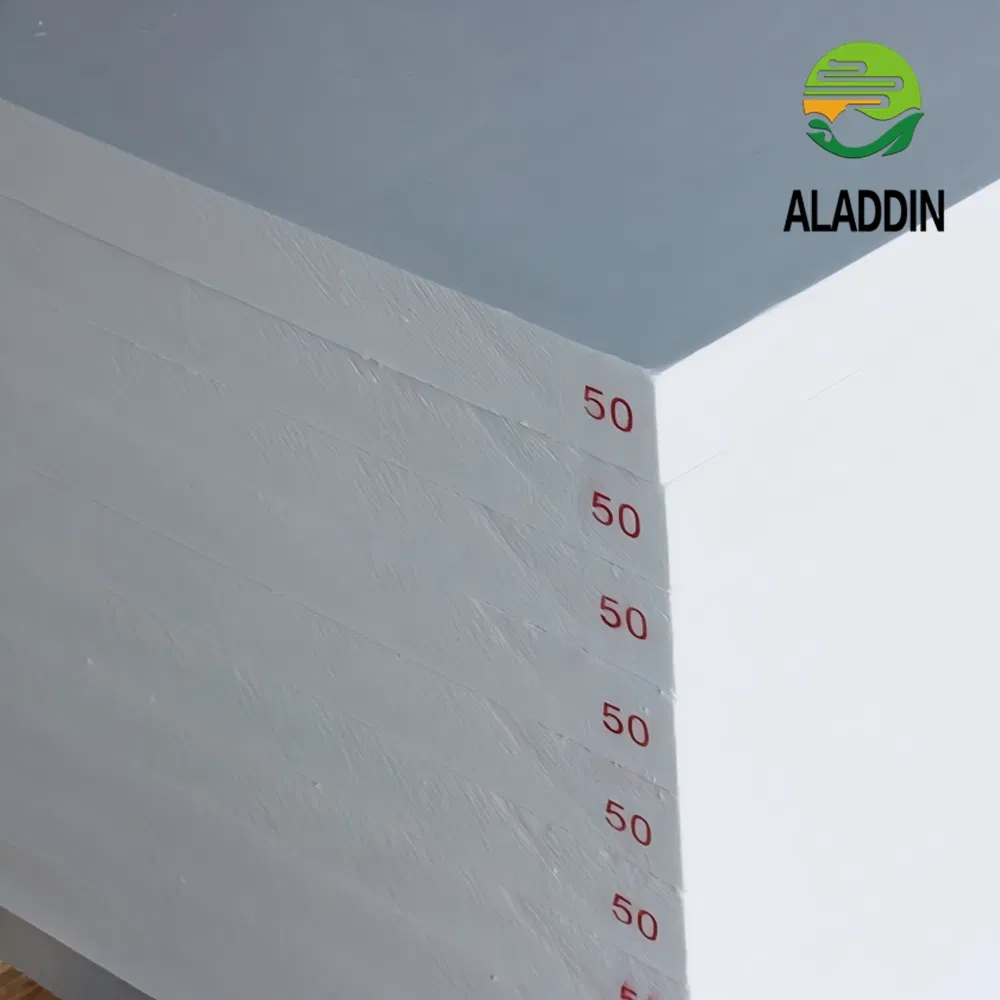

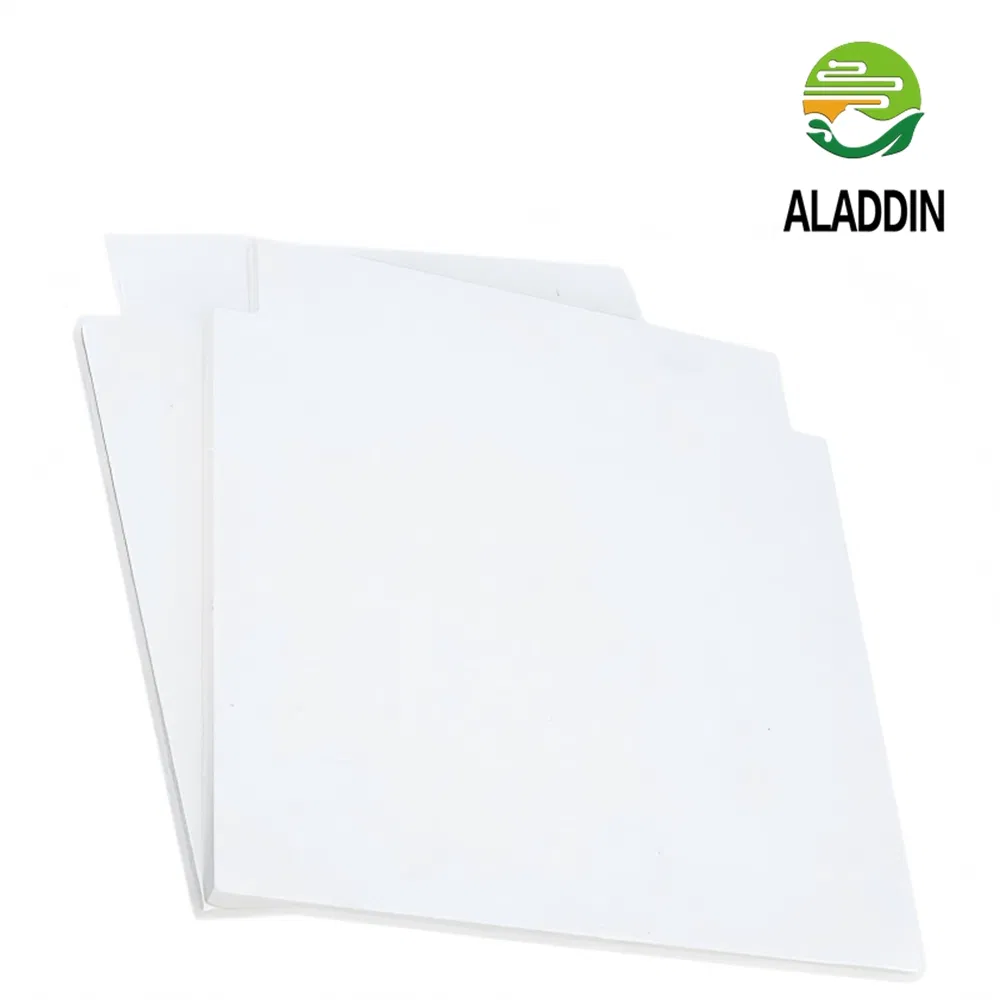

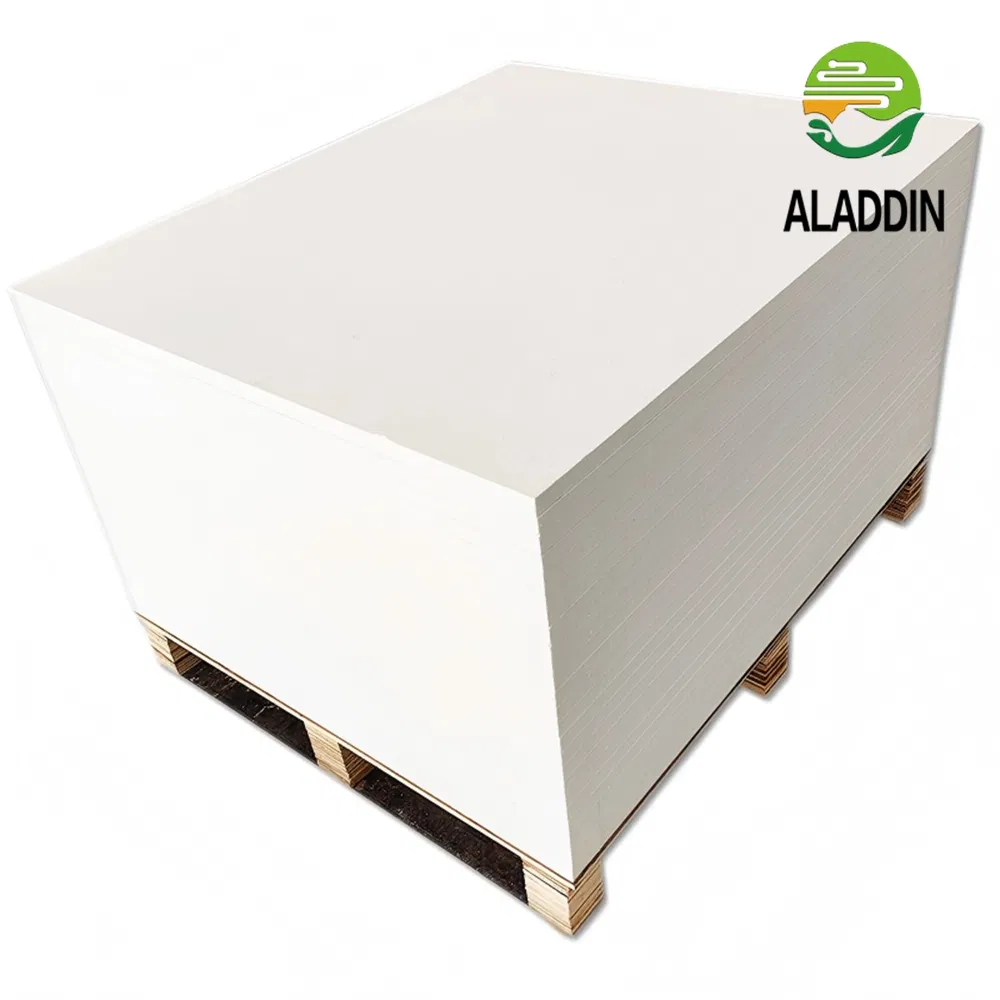

Supports Waterjet Cutting Processing Services for Small-Area Complex-Shaped Fiberboards
Product Description
Basic Specifications
| Model | Ceramic Fiberboard |
| Chemical Composition | Al2O3.SiO2 |
| Classification Temperature | 1260°C - 1500°C |
| Bulk Density | 280~320kg/M3 |
| Manufacturing Technique | Spray Silk Rug / Vacuum Forming |
| Color | Pure White |
Product Overview

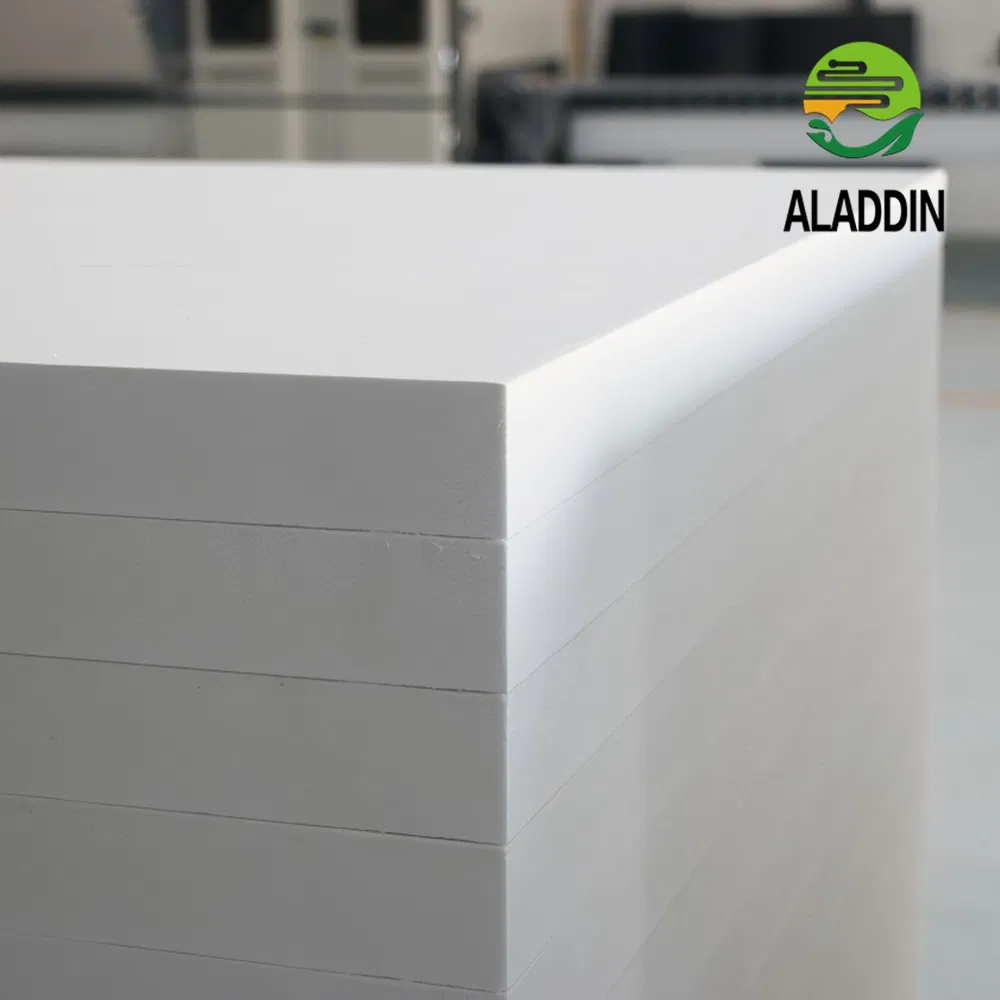

Our Ceramic Fiber Board Series are rigid board products made from high-quality ceramic fiber bulk, blended with organic binders and inorganic adhesives. These boards undergo vacuum forming, drying, and precision processing. They are designed to maintain excellent mechanical strength and thermal stability across a wide range of industrial heating applications.
Key Features
🔥
Low Thermal Conductivity & Capacity: Excellent thermal shock resistance and high-temperature stability.
🛡️
Superior Durability: Uniform density and hardness provide high internal bonding strength and resistance to thermal jet erosion.
⚙️

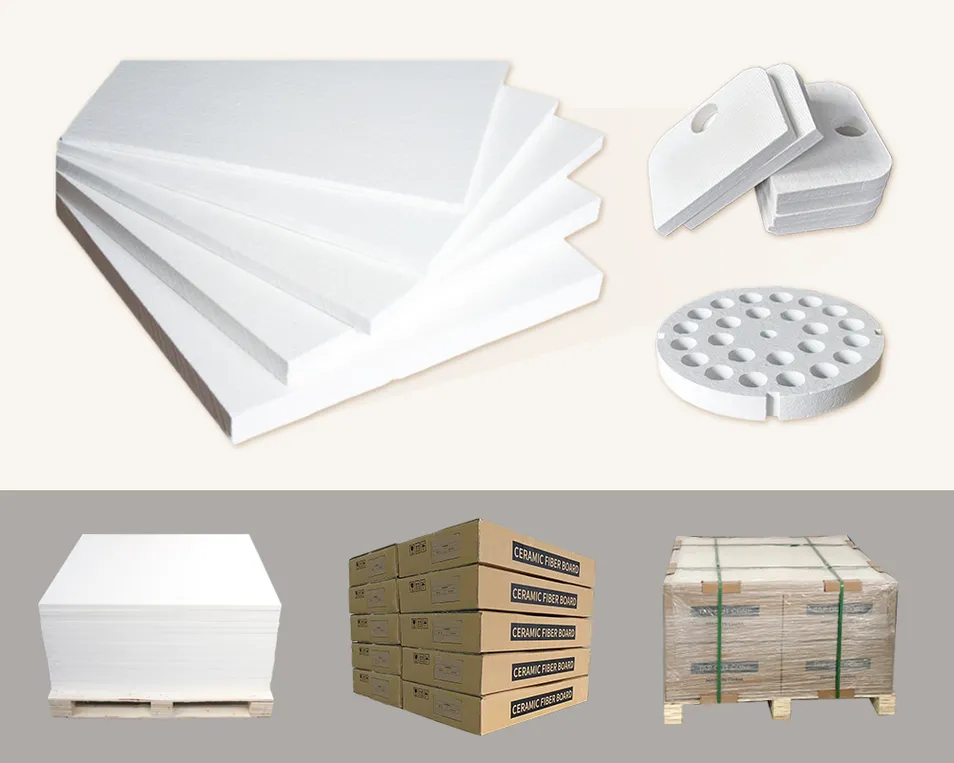

Easy Processing: Precision-cut surfaces allow for easy installation, and the material can be customized into complex shapes according to equipment requirements.
Typical Applications
Refractory thermal insulation is essential for ladle back linings, bell-type furnaces, tunnel kilns, roller kilns, and aluminum melting furnaces. These boards are widely used in metallurgy, petrochemical, and power generation industries for thermal treatment linings.
Technical Performance Data
| Product Name | STD | HP | GL | HA | Zr | CHr |
|---|---|---|---|---|---|---|
| Classification Temp (℃) | 1260 | 1260 | 1350 | 1400 | 1430 | 1500 |
| Density (Kg/m³) | 300±10% | |||||
| Flexural Strength (MPa) | ≥0.8 | |||||
| Thermal Cond. (600℃) | 0.11 W/(m·K) | |||||
| Thermal Cond. (1000℃) | 0.19 W/(m·K) | |||||
Why Choose Our Insulation Solutions?
💎
Direct Factory Advantage: As a manufacturer with 30 years of experience, we provide competitive pricing and strict quality control.
⚡

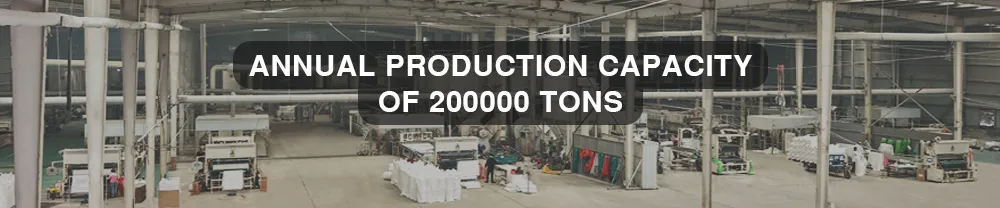

High Capacity: 200,000 tons annual production ensures fast delivery for large-scale industrial projects.
🛠️
OEM & Customization: We offer tailored specifications and R&D support for unique high-temperature environments.

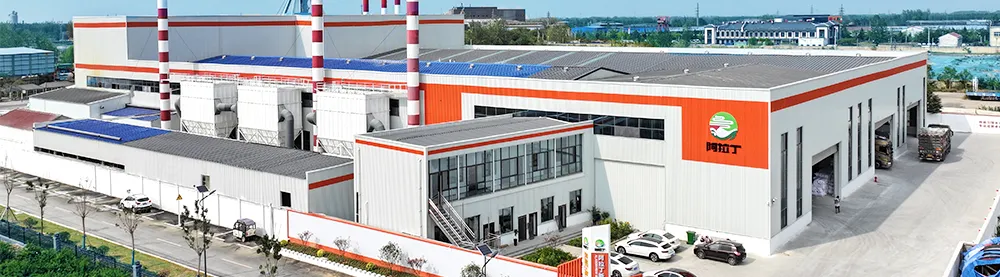

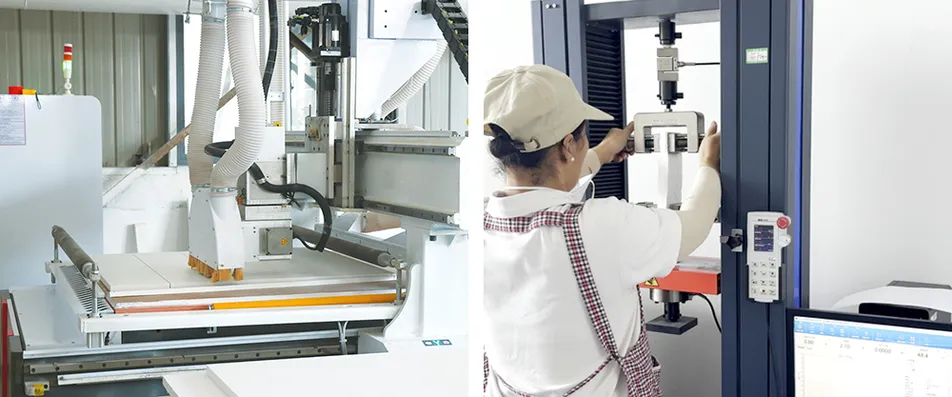

Manufacturing Excellence

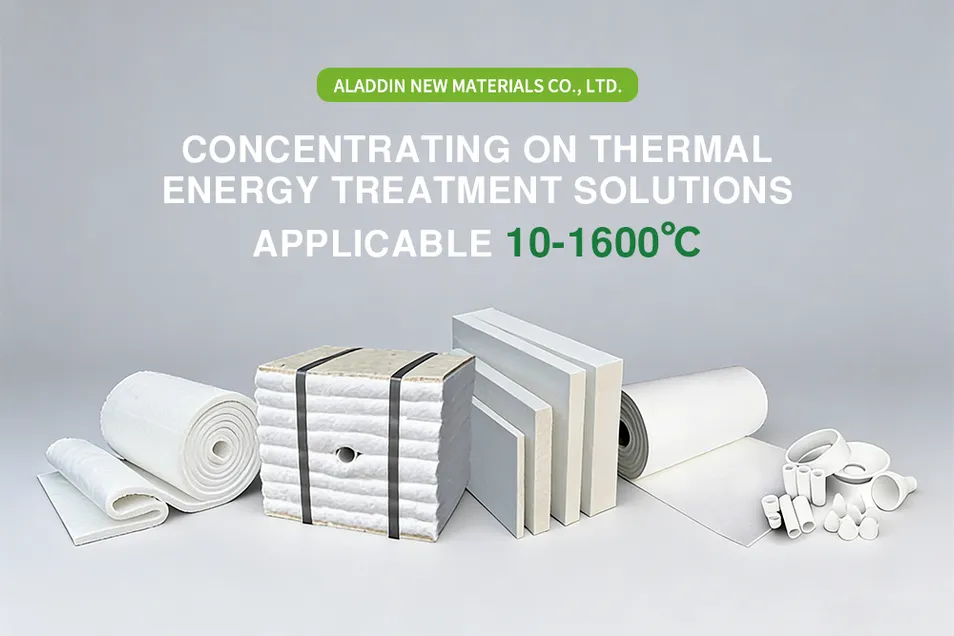

Our company operates four production bases covering 117,639 m². With advanced imported technologies, we produce a comprehensive range of ceramic fiber products including blankets, modules, and boards, serving over 1,000 global partners.
Frequently Asked Questions
Could I get a sample?
Sure, samples are provided for free. Please reach out to our team to arrange the shipment.
What is the typical sample delivery time?
Usually, samples are ready and dispatched within 3 business days.
What international certifications have your products passed?
Our ceramic fiber products have passed SGS, REACH, ROHS, and CE certifications.
Do you support OEM or private branding?
Yes, we provide comprehensive OEM services and can print your brand on the products or packaging.
What is the maximum classification temperature available?
We offer a range of boards that can handle temperatures from 1260°C up to 1500°C/1600°C depending on the material grade.
Can these boards be customized into specific shapes?

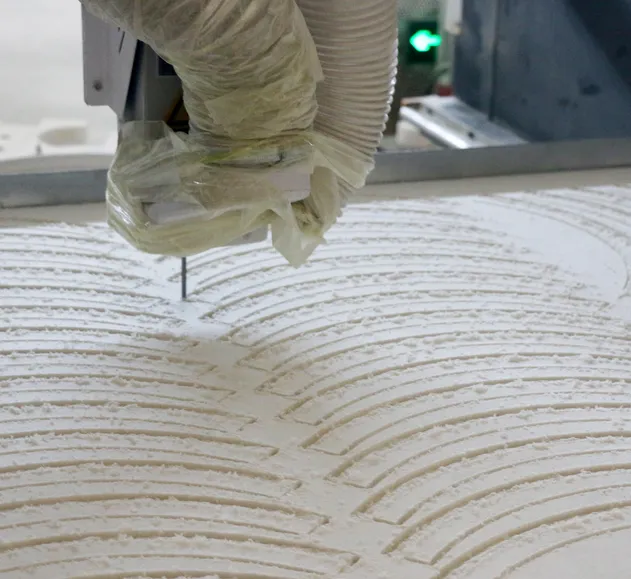

Absolutely. Using professional waterjet and precision cutting equipment, we can customize dimensions and shapes according to your drawings.
