Heavy-Duty Smart-Controlled Seven-Layer Paperboard Die-Cutting Machine
Product Description
⚙️ Basic Info.
Model NO.:3/5/7-layer corrugated carton production line
Condition:New
Automation:Automatic
Suitable for:Paper
Paper Thickness:Thick Paper
Motors:Internationally Renowned Brand Motors
Gears:Internationally Renowned Brand Gears
Bearings:Internationally Renowned Brand Bearings
Production Capacity:5,000 Units Produced Per Year
📄 Product Description

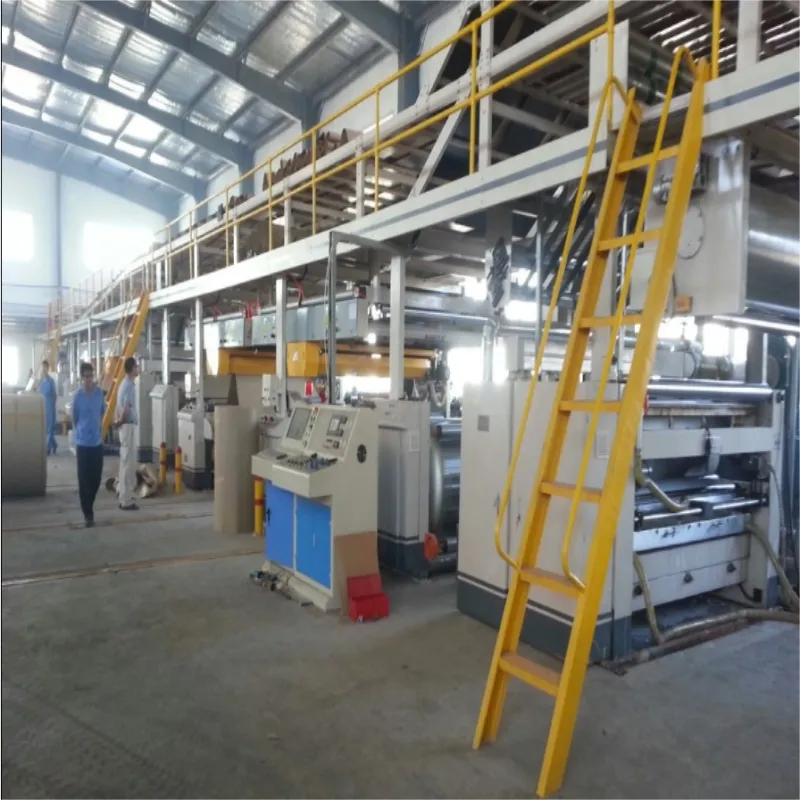

WJ-150-2200-III Seven-Layer Corrugated Cardboard Production Line Overview:
- Certification: ISO: 9001-2008 Quality Management System.
- Production Width: Maximum 2200mm.
- Design Speed: 150m/min.
- Accuracy: ±1mm for both longitudinal and cross-cutting.
- Power Requirements: AC380V 50Hz, Installed capacity ≈220KW.
- Steam Requirements: 10-12kg/cm² normal pressure, 4000kg/Hr dosage.
🛠️ Core Equipment Configuration
Wet End Equipment:

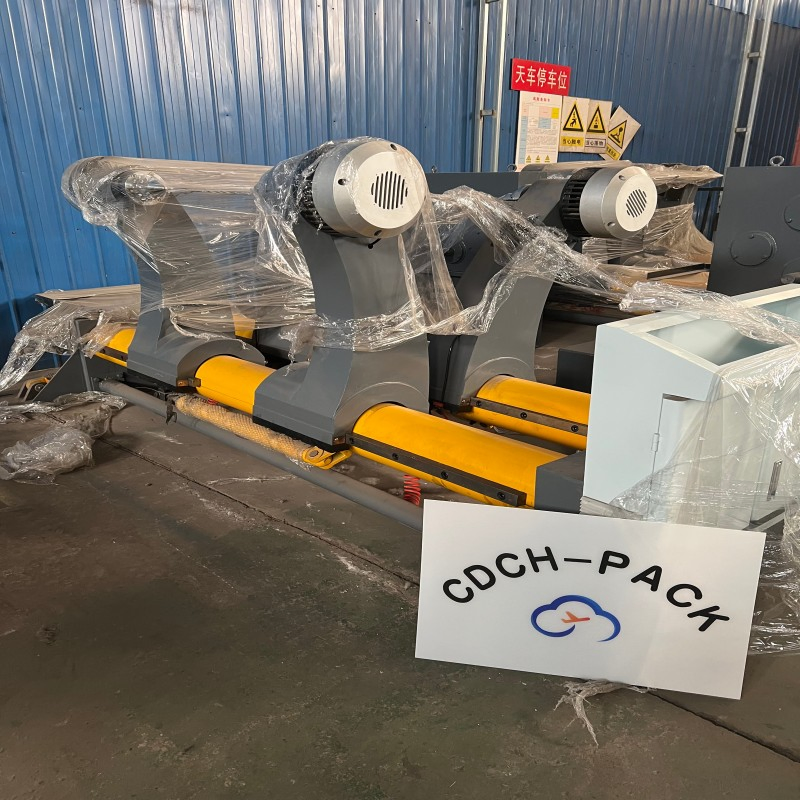

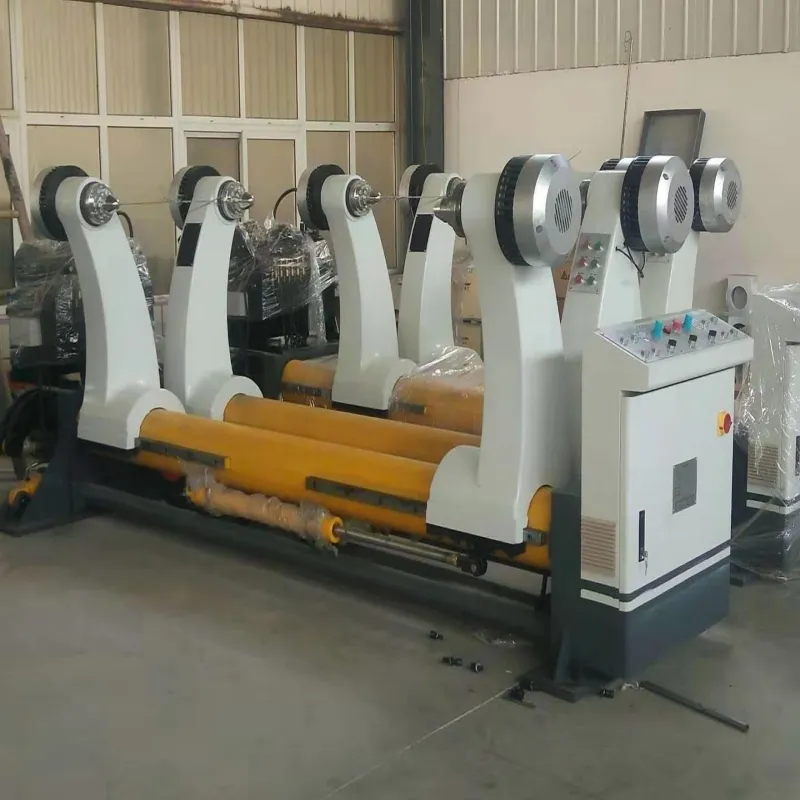

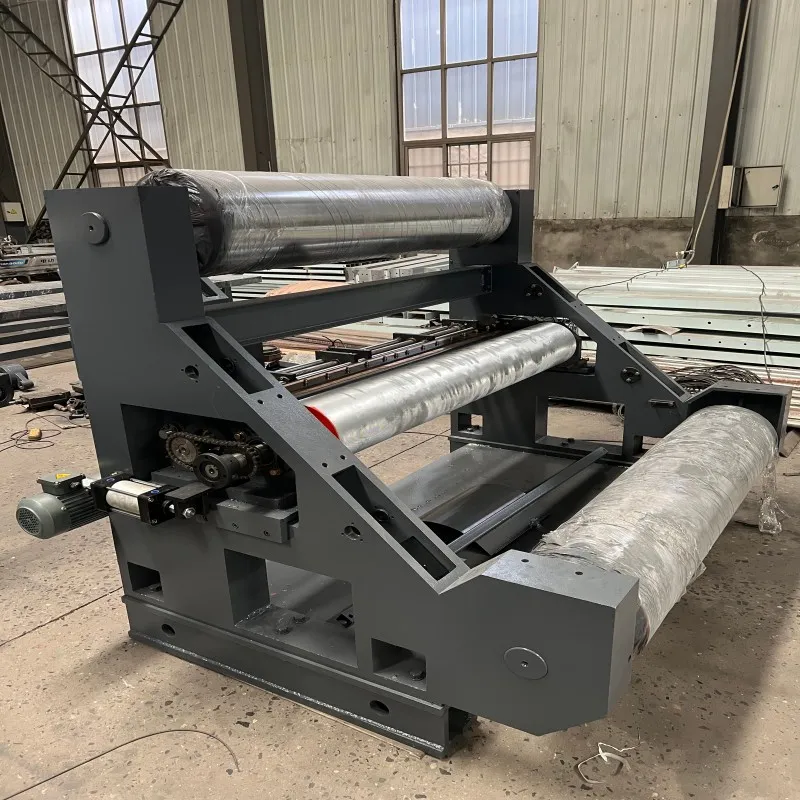

- Hydraulic Shaftless Paper Rack: 7 sets. Full hydraulic drive for clamping and centering.
- Fully Automatic Paper Splicer: 7 sets. PLC control, high-speed splicing (250m/min) without broken paper.

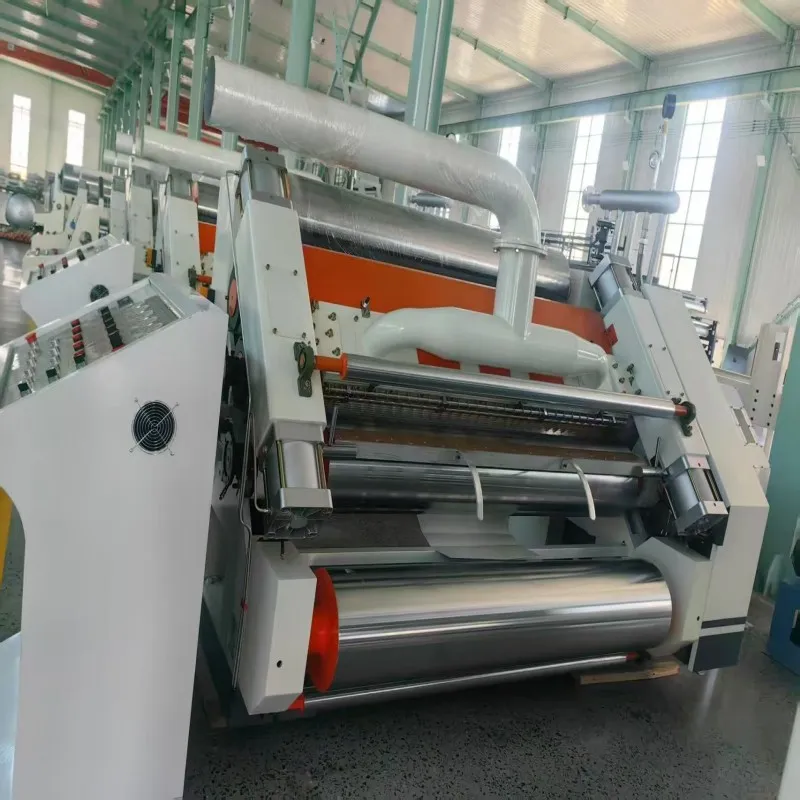

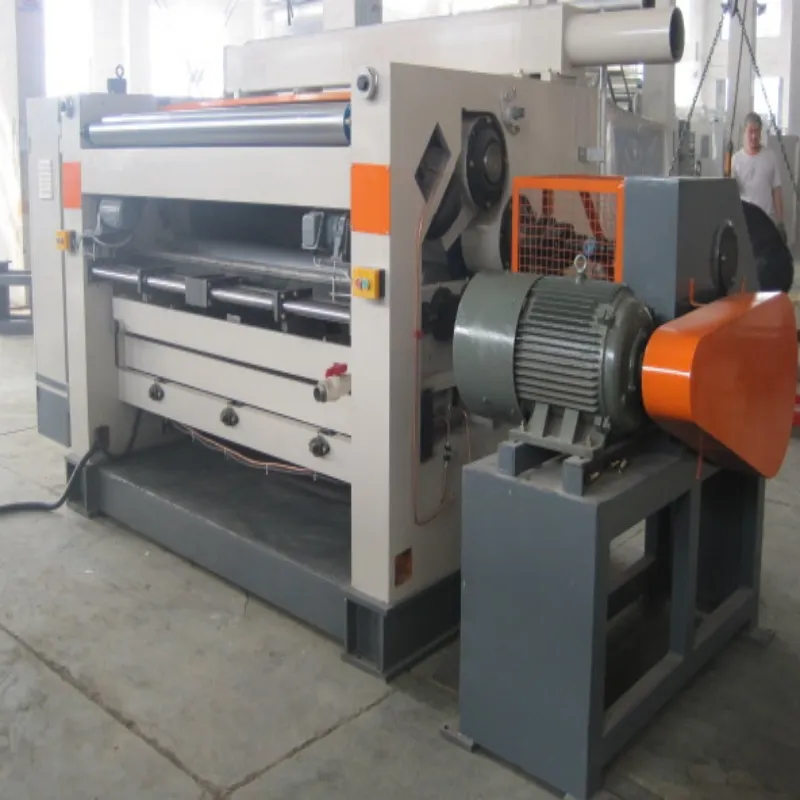

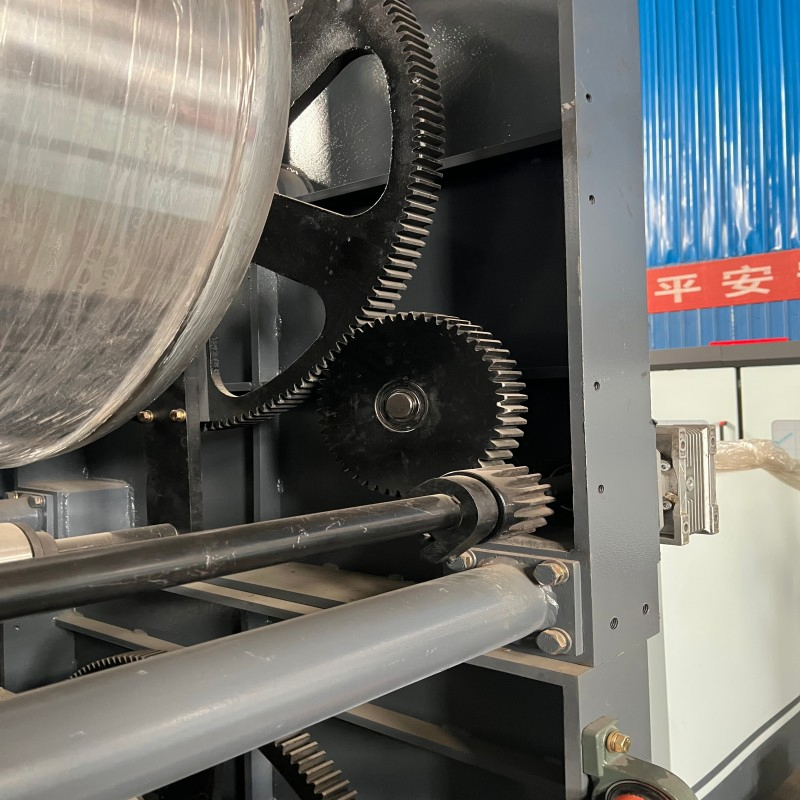

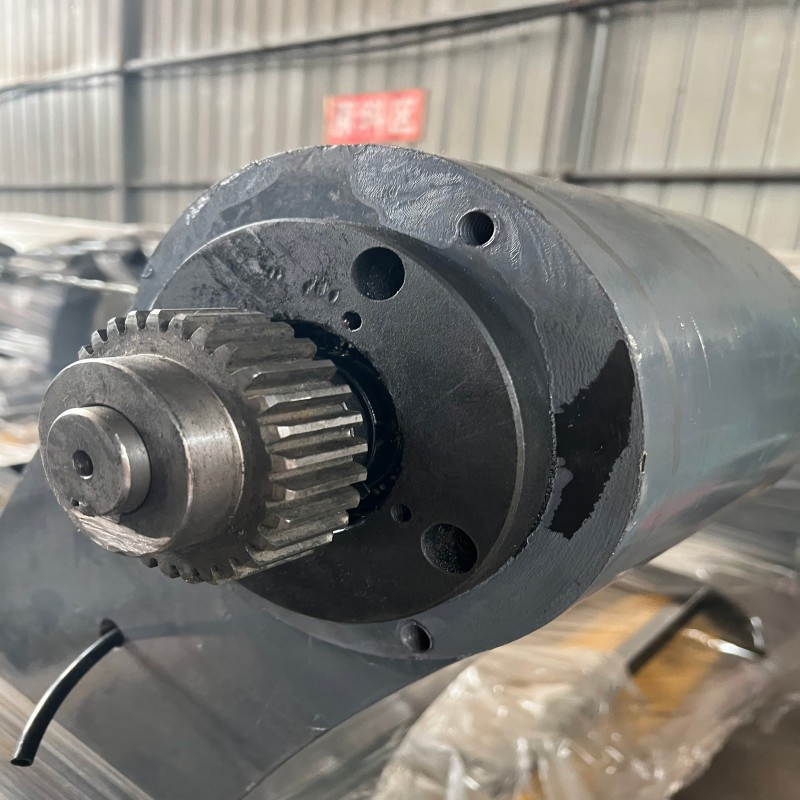

- Adsorption Single-Sided Machine: 3 sets. 48CrMo alloy steel corrugated rollers (¢320mm), PLC automatic glue control.
Dry End Equipment:

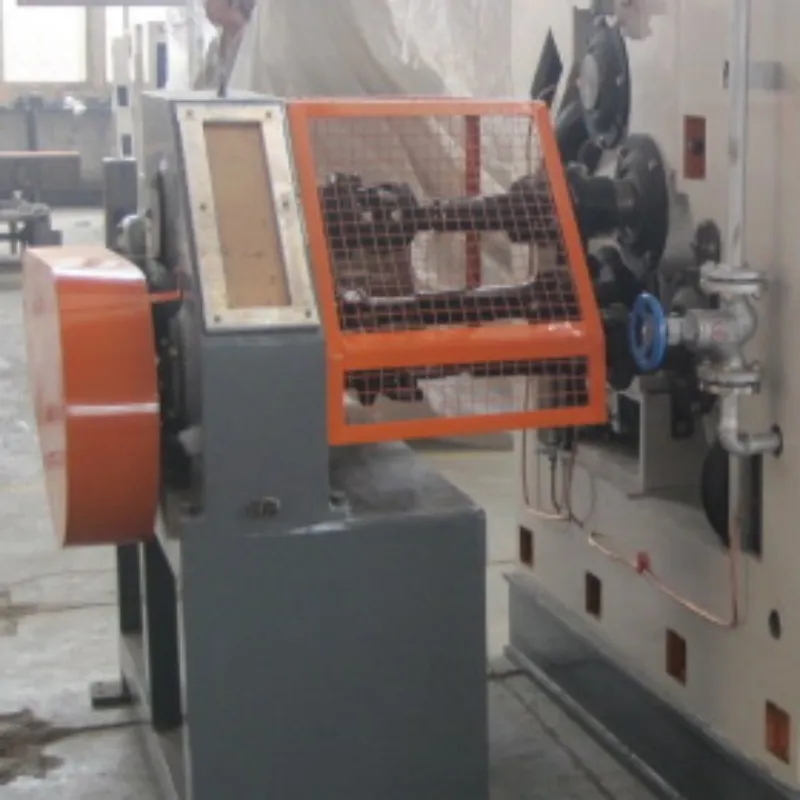

- Three-Layer Glue Coating Machine: PLC adjustment of glue gap, variable frequency motor drive.

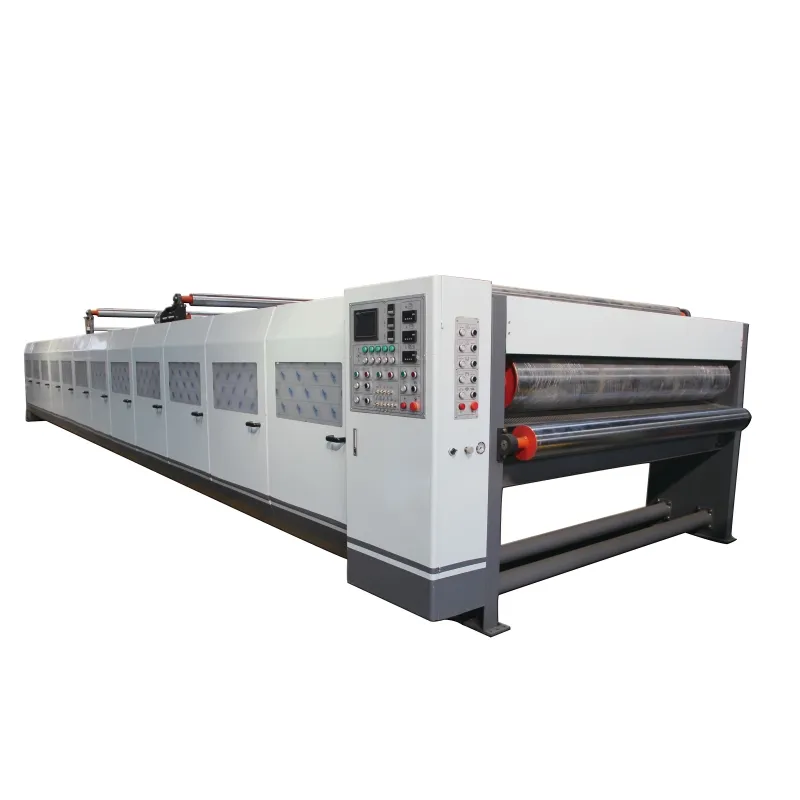

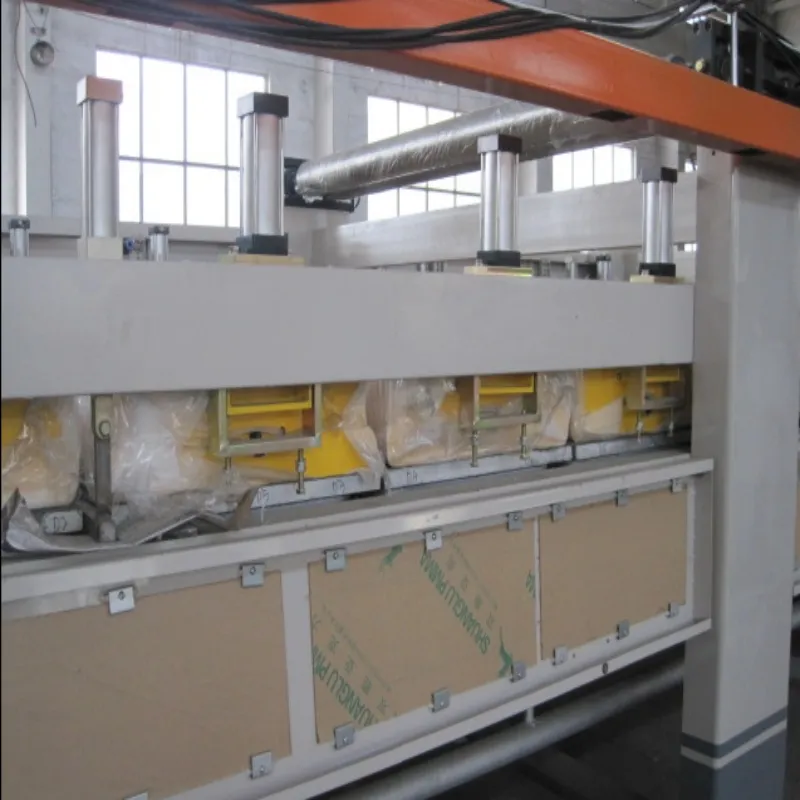

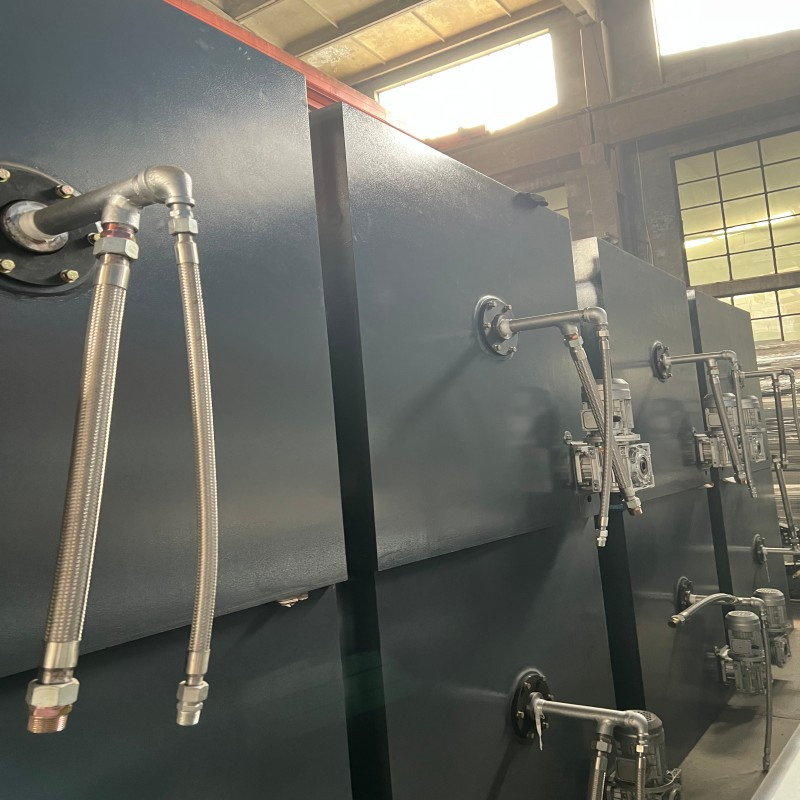

- Double-Sided Machine: 16 pieces of 600mm chrome-plated hot plates with segmented temperature control.

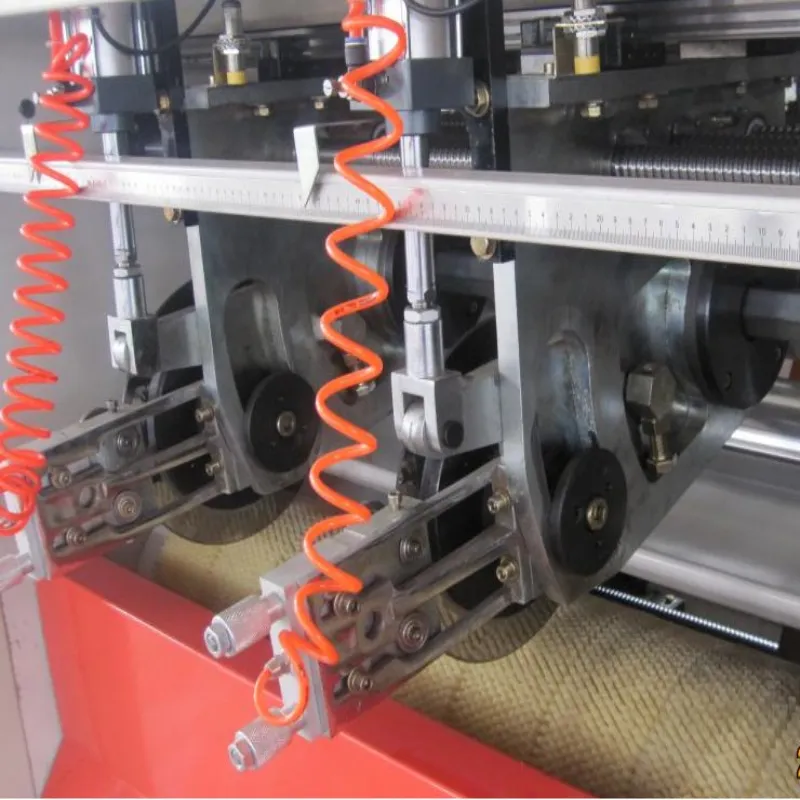

- Computer Thin Blade Slitter Scorer: Tungsten steel alloy blades (lifespan > 8 million meters).
- Spiral Knife Cross-Cutting Machine: Servo motor drive, accuracy ±1mm.
🖼️ Detailed Photos
📊 Product Parameters
| Models | Name | QTY | Key Remark |
|---|---|---|---|
| ZJ-V5B | Hydraulic shaftless mill roll stand | 7 | Spindle ¢240mm, hyperbolic heavy rocker, hydraulic drive. |
| JZJ | Automatic splicer | 7 | Max speed 150m/min, reduces paper consumption. |
| SF-320C | Fingerless single facer | 3 | Main roller ¢320mm, 48CrMo alloy steel, PLC control. |
| SM-F | Double facer | 1 | Chrome hot plate 600mm * 16 pieces, frequency motor. |
| NC-150 | Computerized spiral knife | 1 | Full AC servo control, helical knife structure. |
| DM-LM | Gantry stacker | 1 | Servo drive platform lifting, automatic stacking. |
⭐ Core Advantages
Efficient Production150m/min design speed, 3s order change.
Precise ControlServo motor + PLC system, accuracy ±1mm.
Energy SavingSegmented temperature control saves up to 70% electricity.
Quality Assurance48CrMo alloy rollers ensure board strength.
❓ Frequently Asked Questions
Q1: What is the maximum production width of this line?
The WJ-150-2200-III model supports a maximum production paper width of 2200mm.
Q2: How fast can the machine produce different layers of cardboard?
The design speed is 150m/min. Three-layer boards work at 100-130m/min, while five-layer boards work at 80-100m/min.
Q3: What level of cutting accuracy does the system provide?
The system provides high precision with both longitudinal and cross-cutting accuracy of ±1mm.
Q4: Is the paper splicing process automated?
Yes, it features JZJ fully automatic paper splicers with PLC control and no-paper-tail splicing at high speeds.
Q5: What are the primary power and steam requirements?
It requires AC380V 50Hz power (normal power ≈150KW) and a steam boiler capacity of 4000kg/Hr at 1.25MPa pressure.
Q6: What certifications does this production line have?
The production line has passed the ISO: 9001-2008 standard quality management system certification.
