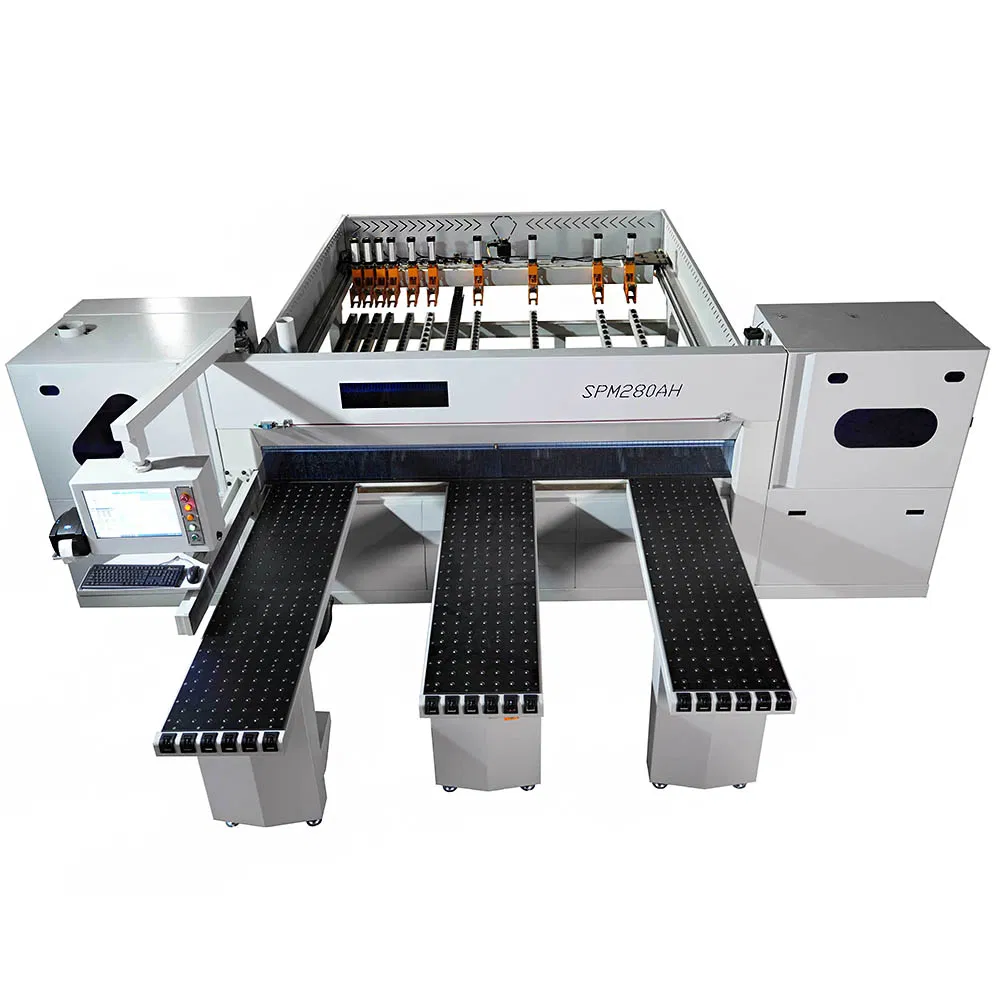

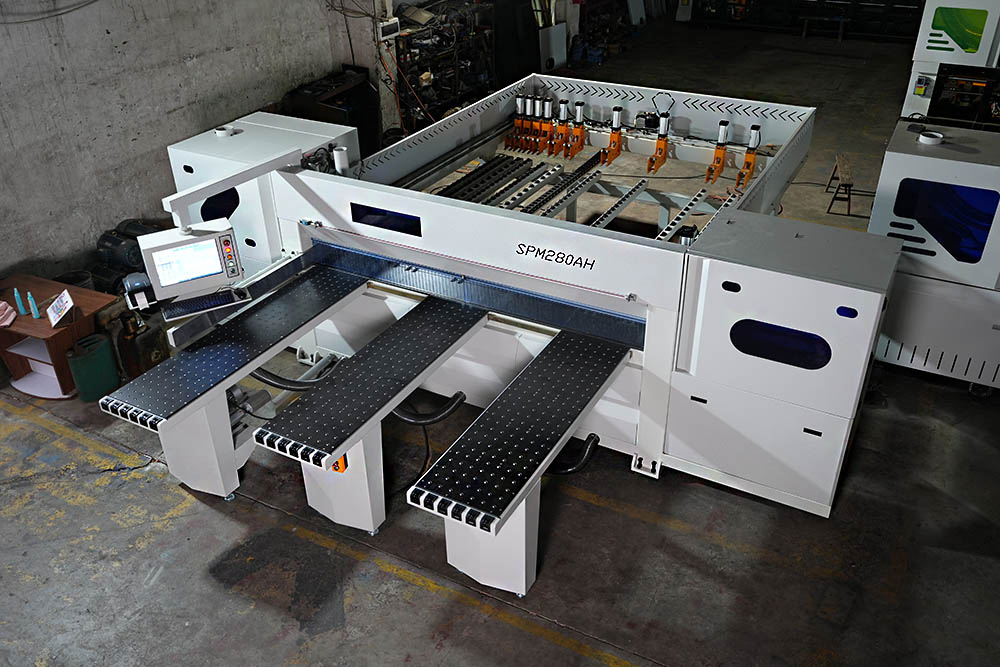

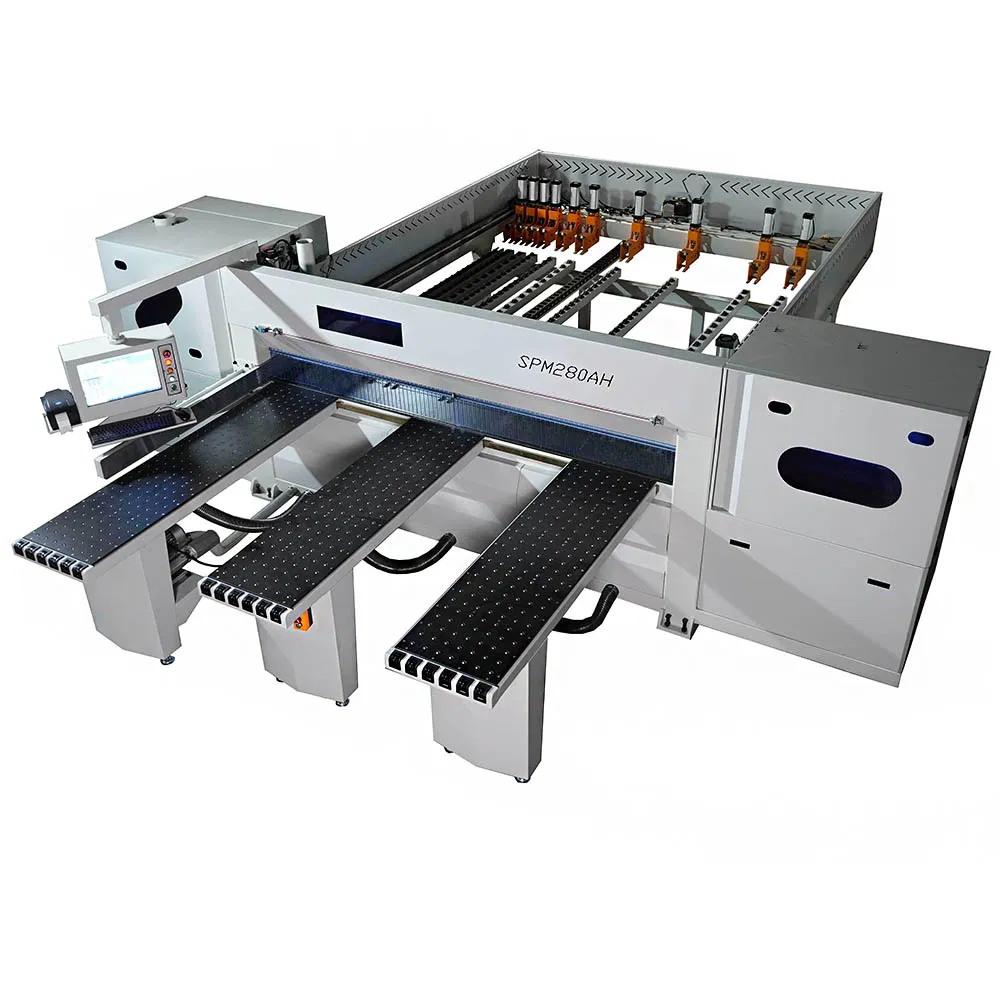

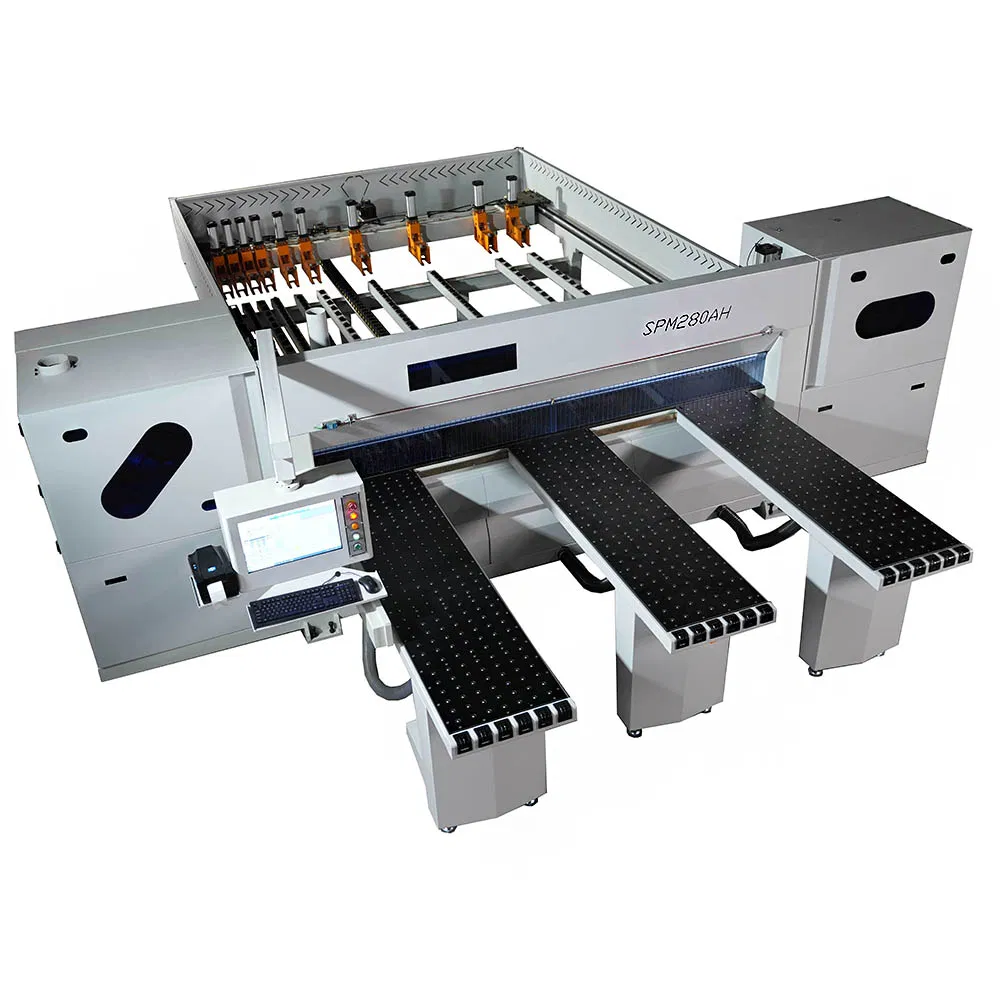

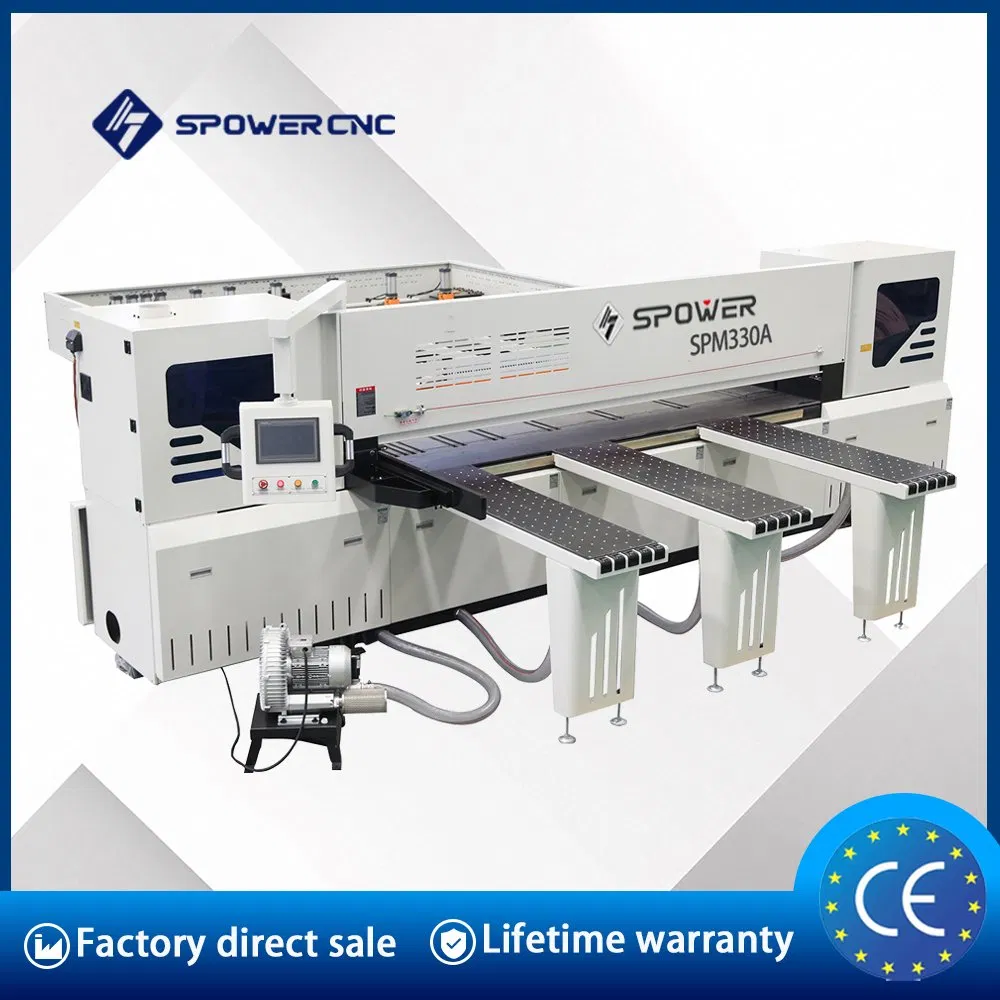

Electronic Optimizing Wood Cutting off Saw Heavy-Duty Beam Saw for Thick Wood Boards
Product Description
| Model NO. | SPM330A |
| Power Type | Electric |
| Layout | Horizontal |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Precision | High Precision |
| Main Saw Motor Power | 15kw |
| Maximum Cut Size | 3250mm * 3250mm |
| Maximum Cut Height | 80mm |
| Air Pressure | 0.6-0.8MPa |
| Dimension | 6600*6400*1800mm |
| Weight | 5700kg |
Spower electronic cutting saw has a wide range of uses. Because of its high rotation speed, the electronic cutting saw can be widely used in furniture factories, electrical appliances factories, garment factories, toy factories, and hardware factories.

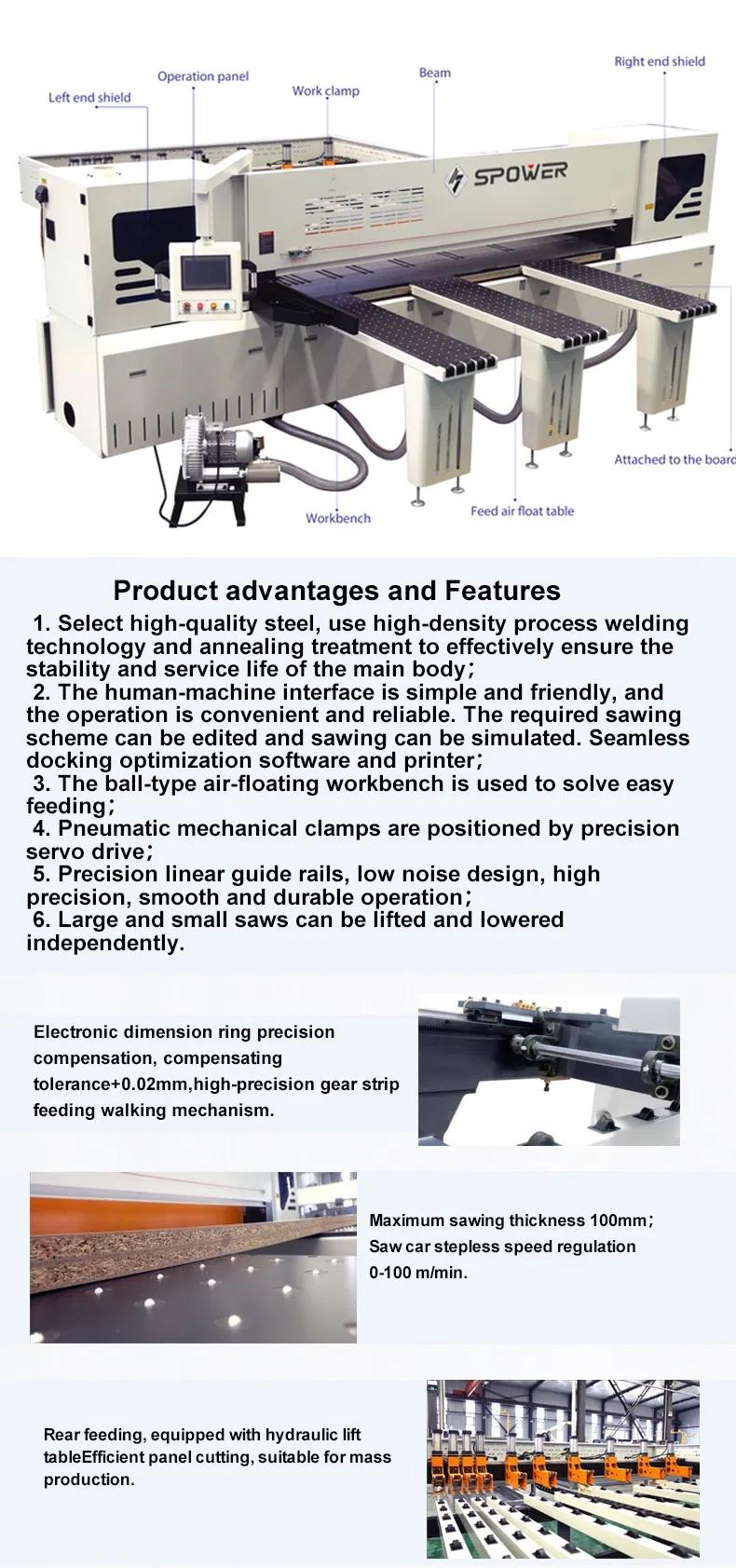

- The moving of saw adopts gear rack driving way for precision.
- Flexible two-finger structure, handles smallest plywood down to 20mm.
- Double servo control for enhanced cutting stability.
- Simple and intuitive sawing control system, suitable for unskilled operators.
- Equipped with online fault detection and remote maintenance support.
| Parameter Item | Specification |
|---|---|
| Maximum cut length | 3300mm |
| Min. processing board size | 50mm*50mm |
| Main saw motor power | 15kw |
| Diameter of main saw blade | 450mm |
| Speed of main saw spindle | 4000 r.p.m/min |
| Saw carriage forward speed | 0-120mm/min |
| Air pressure | 0.6-0.8Mpa |
Note: We provide comprehensive customized services (SPM280A, SPM330A, SPM380C etc.) to meet specific customer requirements.
Processing Materials:
Plexiglass, light guide plate, circuit board, MDF board, wood-based board, artificial stone, aluminum-plastic board, ABS board, PVC board, PS board, PET board, synthetic stone, and solid wood. Suitable for hardboards such as gypsum board and laminate flooring.
Yes, we can provide suggestions based on your effective processing area and materials. Our machines can be customized according to specific buyer requests.
It can process wood, MDF, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all types of non-steel materials.
We are a manufacturer with 15 years of factory experience. By producing the machines ourselves, we ensure reliable quality and superior after-sales service.
Typically, a 30% prepayment is required to start production. Once completed, we send photos/videos for your confirmation, and the balance is paid before shipping.
For standard machines, it takes 1-3 days. For non-standard or customized machines, the delivery time is approximately 10 to 15 days.
Yes, we provide free online training. If there are issues during the warranty period, we provide repair services and remote maintenance support.
