Smart-Controlled Heavy-Duty Seven-Layer Corrugated Board Cutting Machine
Product Description
Basic Info
Model NO.3/5/7-layer corrugated carton production line
ConditionNew
AutomationAutomatic
Suitable forPaper
Paper ThicknessThick Paper
MotorsInternationally Renowned Brand
Production Capacity5,000 Units Produced Per Year
Product Description

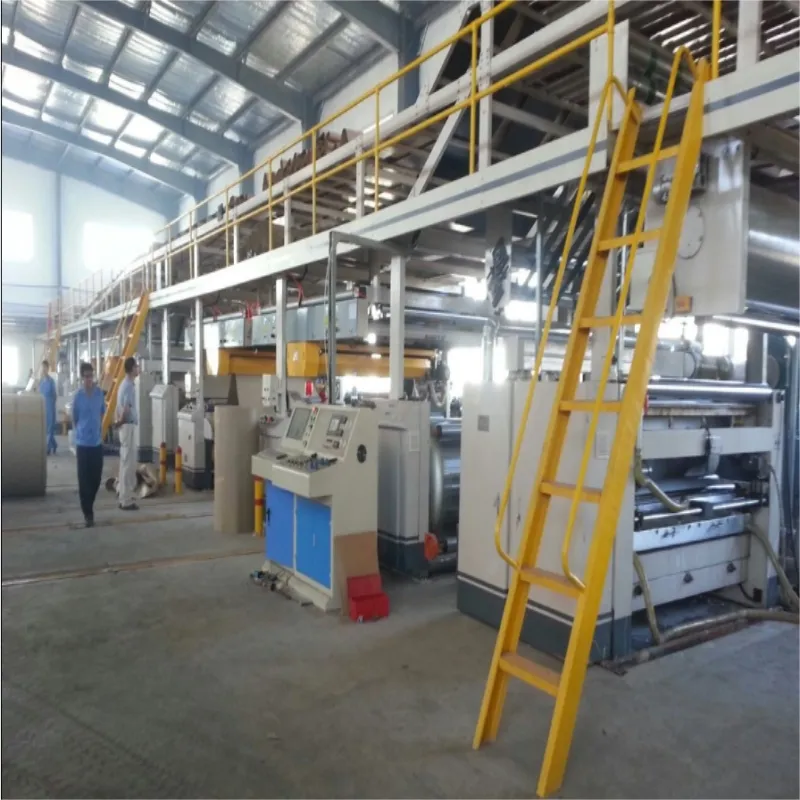

Equipment Overview: WJ-150-2200-III seven-layer corrugated cardboard production line, certified by ISO: 9001-2008 standard quality management system.
Production Capacity Parameters:
- Maximum production paper width: 2200mm
- Design production speed: 150m/min
- Three-layer working speed: 100-130m/min
- Five-layer working speed: 80-100m/min
- Cutting accuracy: ±1mm
- Steam Requirements: 10-12kg/cm² normal pressure, dosage 4000kg/Hr
- Power Demand: Installed capacity ≈220KW, normal power ≈150KW
Core Equipment Configuration
Wet End Equipment:
ZJ-V5B Hydraulic Shaftless Paper Rack7 Sets
JZJ Fully Automatic Paper Splicer7 Sets (250m/min)

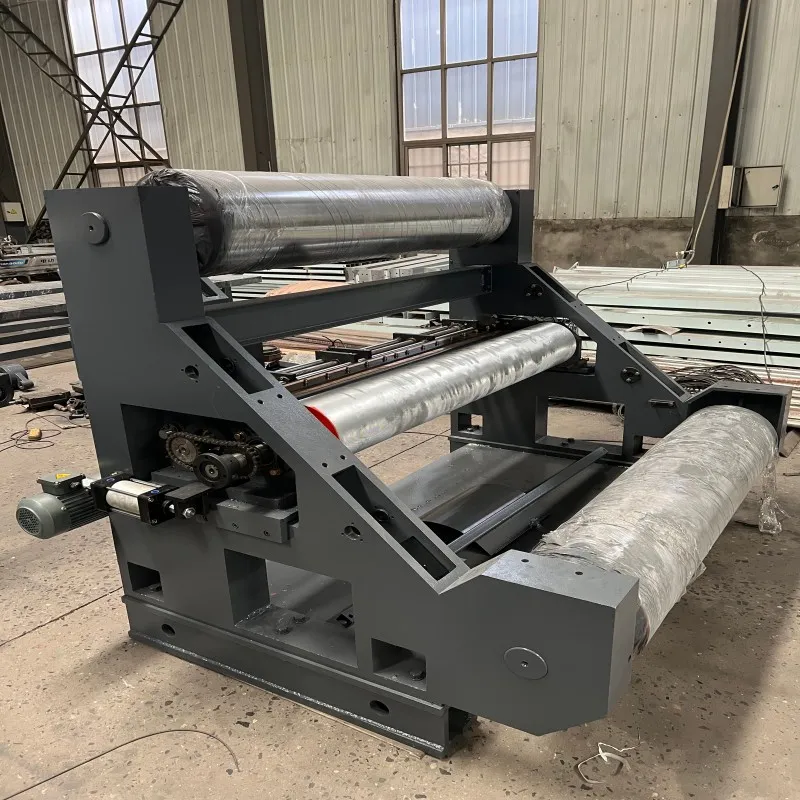

R09B Face/Core Paper Preheater6 Sets (¢900mm)

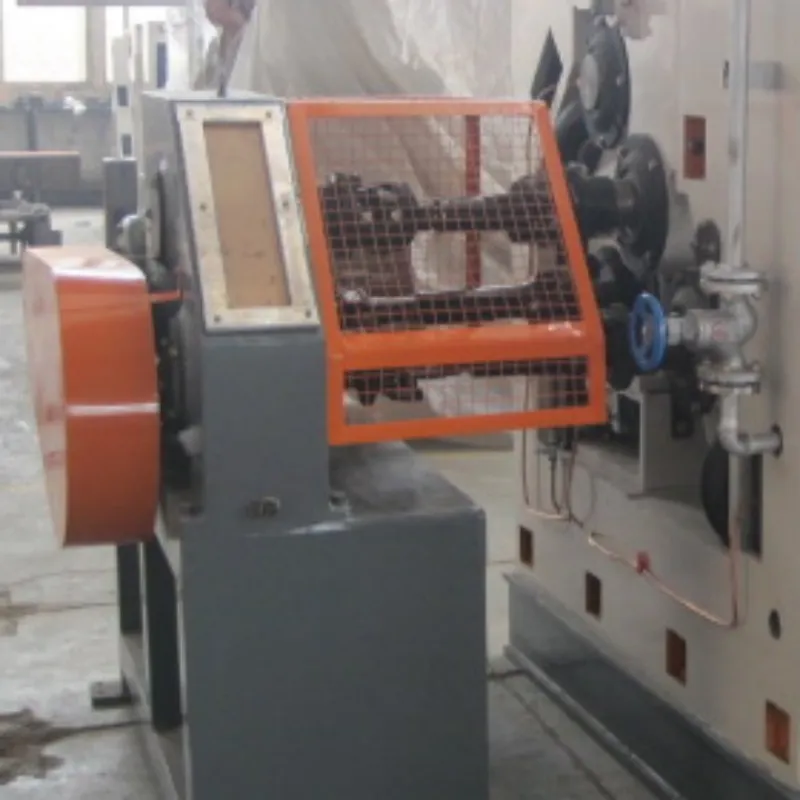

SF-320C Adsorption Single-Sided Machine3 Sets
Dry End Equipment:

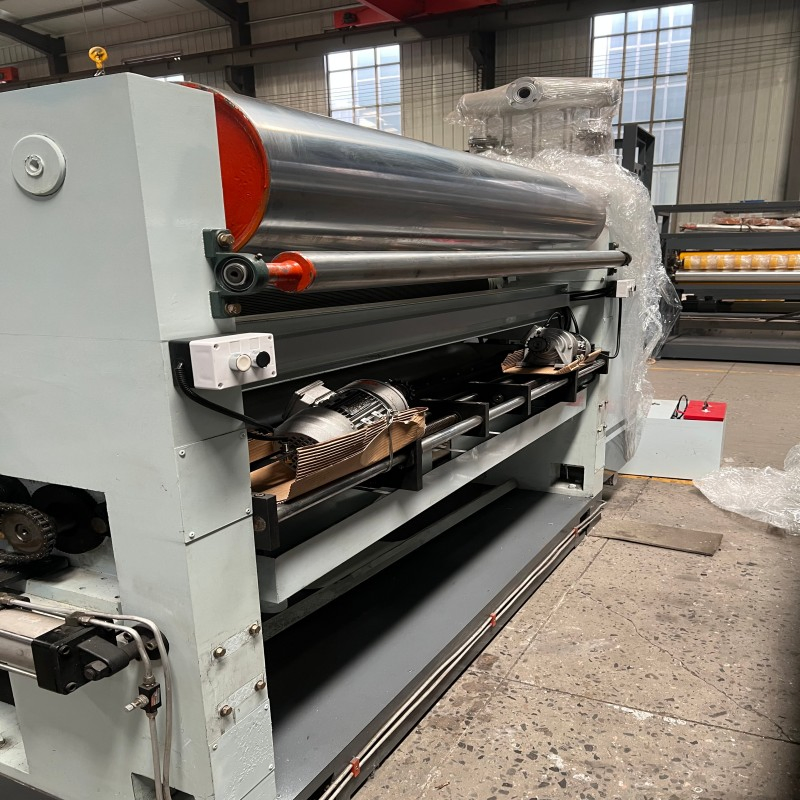

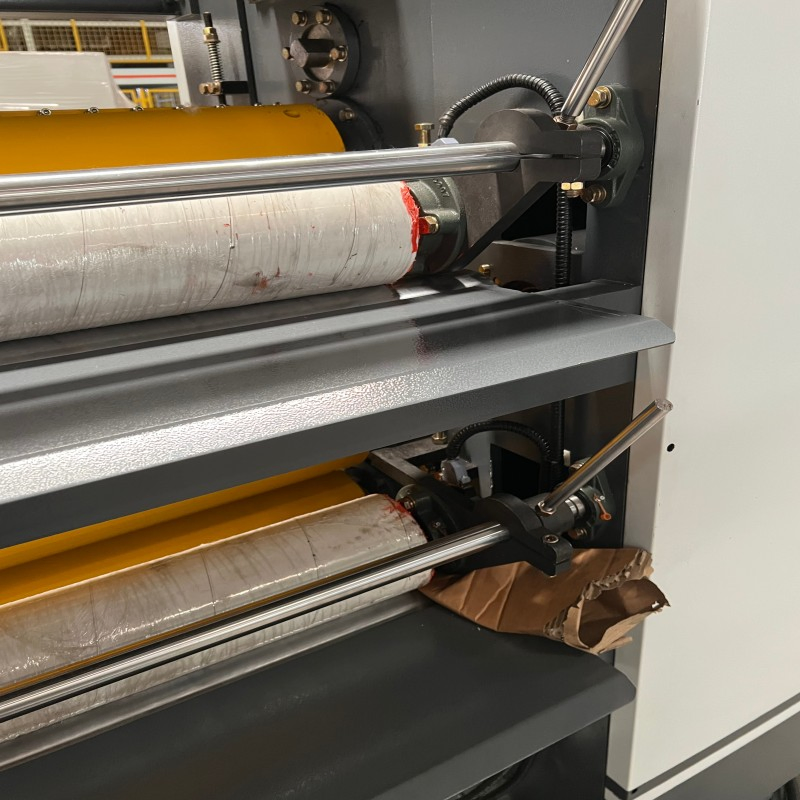

GM-20 Three-layer Glue Coating Machine1 Set

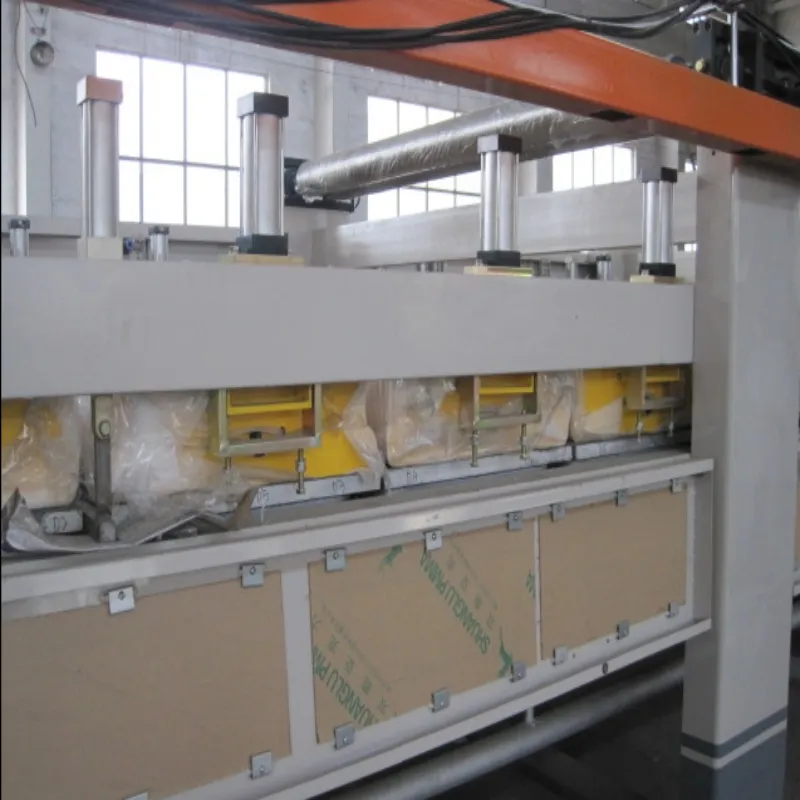

SM-F Double-Sided Machine1 Set (16 Hot Plates)

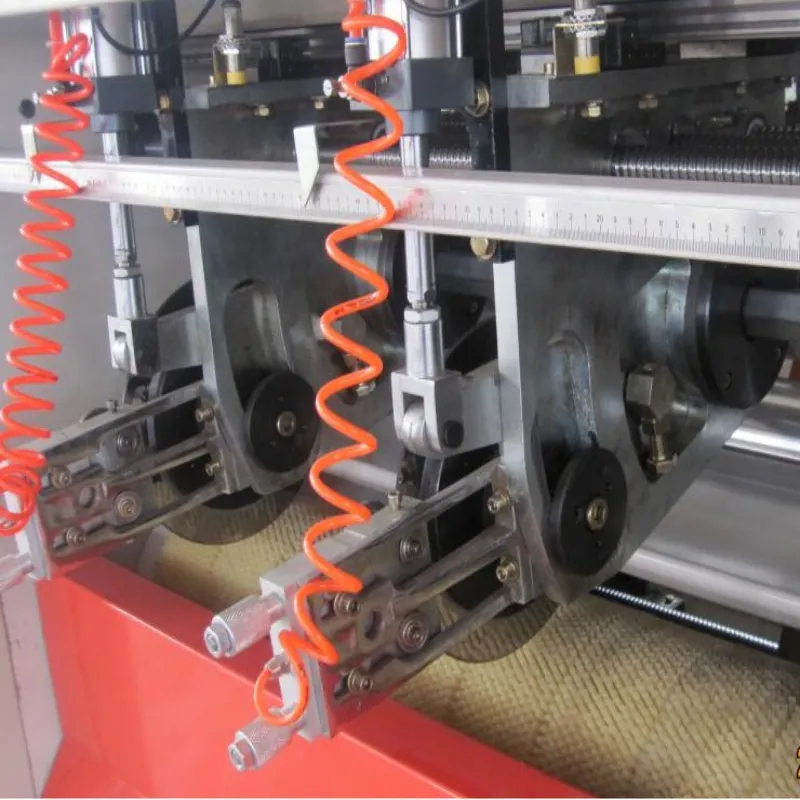

Computer Thin Blade Slitting MachineServo Control, 6 Blades
NC-150 Computer Spiral Knife Cross-cuttingAccuracy ±1mm
Core Advantages
Efficient Production
150m/min design speed with rapid order changes in 3-8 seconds.
Precise Control
Servo motor + PLC integration ensures cutting accuracy within ±1mm.
Energy Saving
Segmented temperature control saves significant electricity and steam.
Detailed Photos
Product Parameters
| Models | Name | QTY | Technical Remarks |
|---|---|---|---|

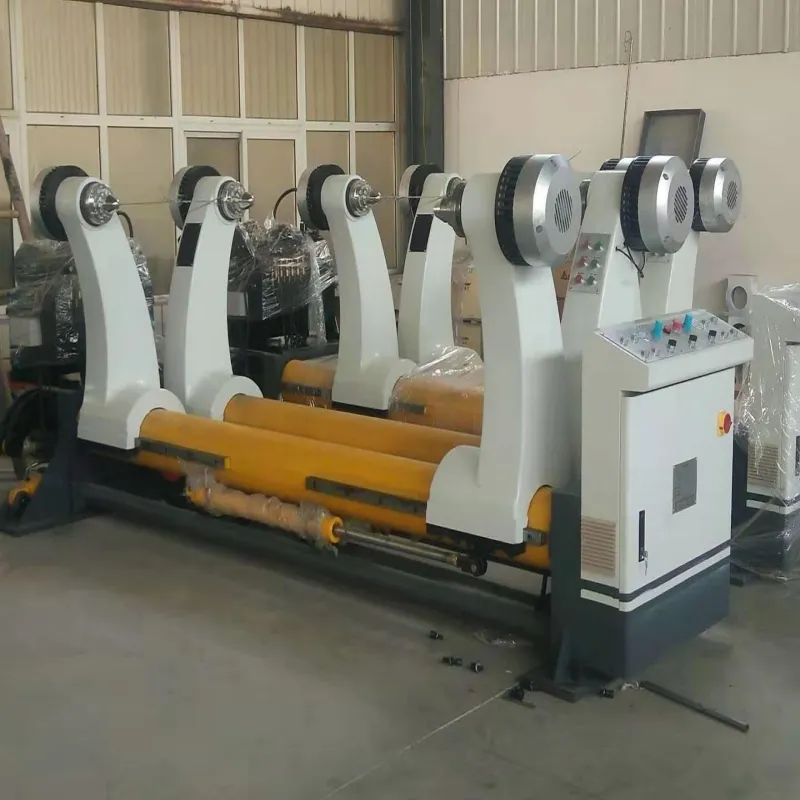

| ZJ-V5B | Hydraulic shaftless mill roll stand | 7 | Spindle ¢ 240mm, multi-point brake, hydraulic drive lifting. |
| JZJ | Automatic splicer | 7 | Uninterrupted work, reduce consumption. Max speed 150m/min. |

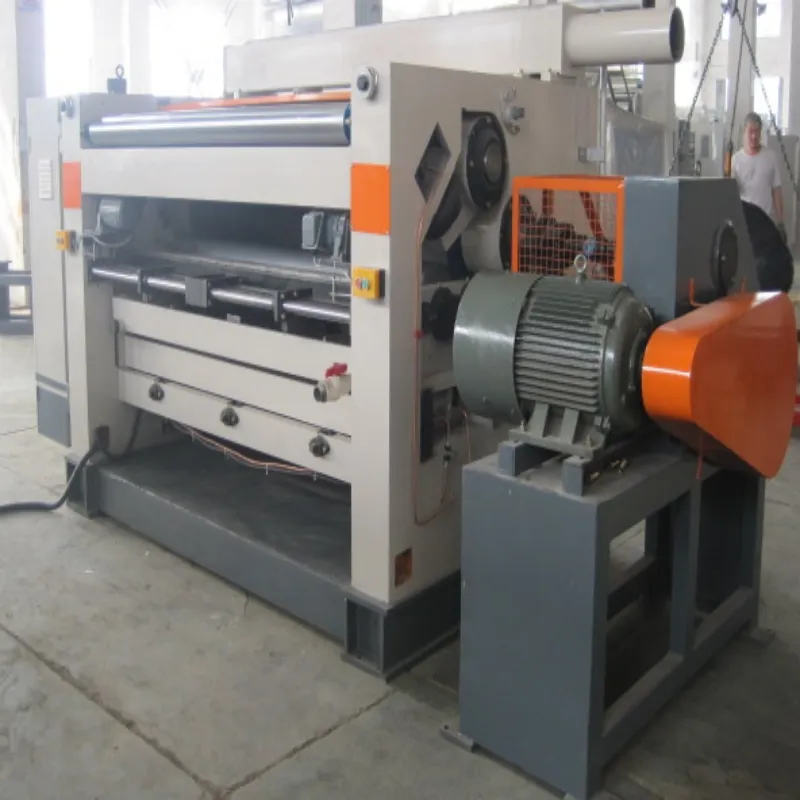

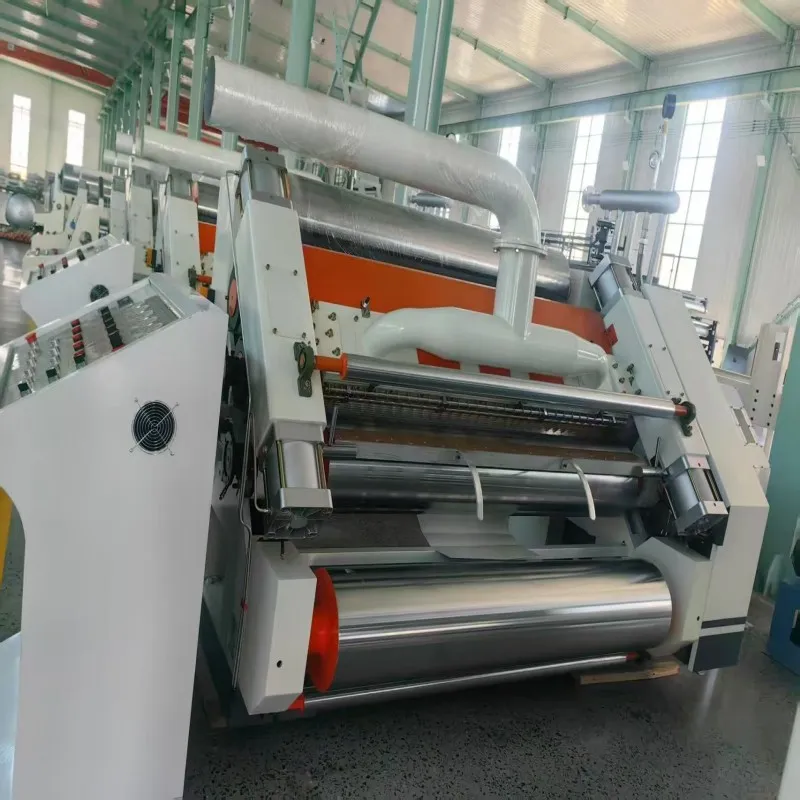

| SF-320C | Fingerless type single facer | 3 | Corrugated roller ¢320mm, 48CrMo alloy steel, PLC control. |

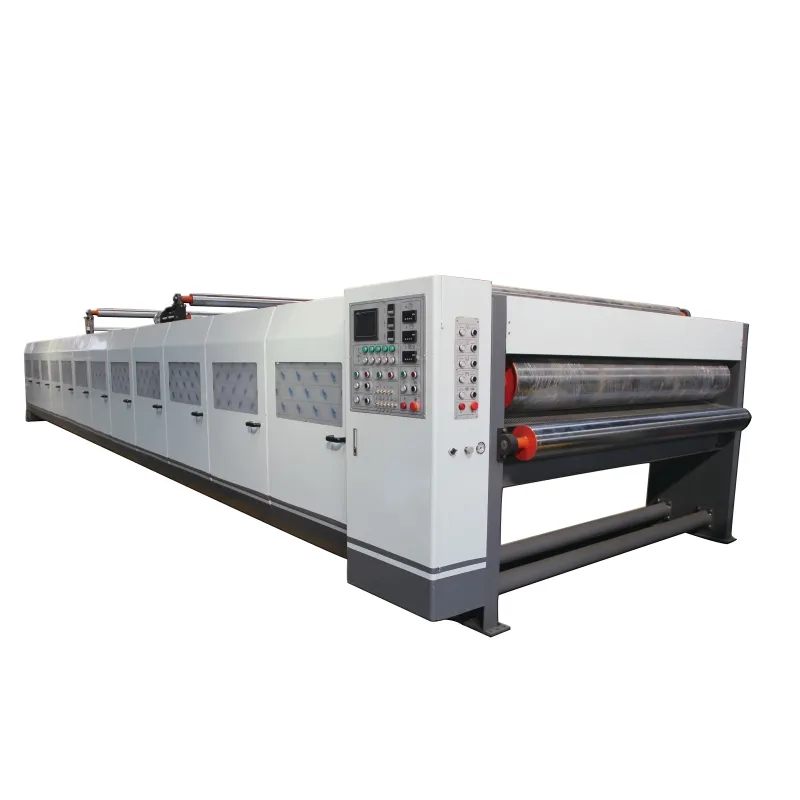

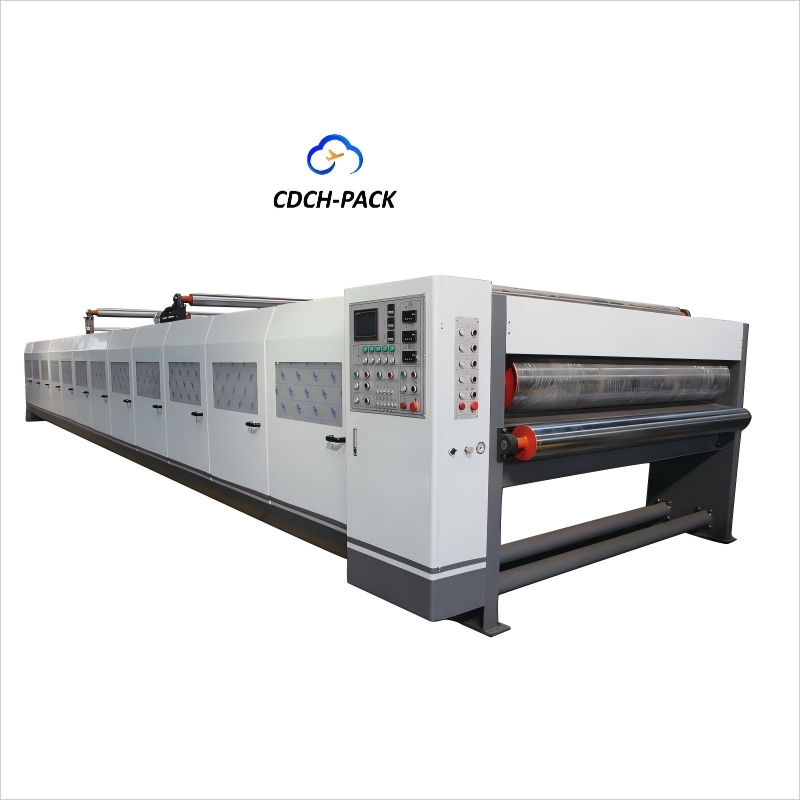

| SM-F | Double facer | 1 | Chrome hot plate 600mm * 16pcs, frequency motor control. |
| NC-150 | Spiral knife crosscutting machine | 1 | Full AC servo control, helical knife structure, oil-immersed gear. |
| DM-LM | Gantry stacker | 1 | Servo drive lifting, automatic point stacking, high-strength belt. |
Customer-Provided Requirements
- Steam heating system: 4000Kg/Hr boiler (1.25MPa) and pipelines.
- Compressed air system and glue conveying pipes.
- Power supply wires and connection to operation panels.
- Civil infrastructure (foundation for water, electricity, gas).
- Test materials: Base paper, corn starch, caustic soda, borax.
- Equipment oil, lubricating grease, and hydraulic oil.

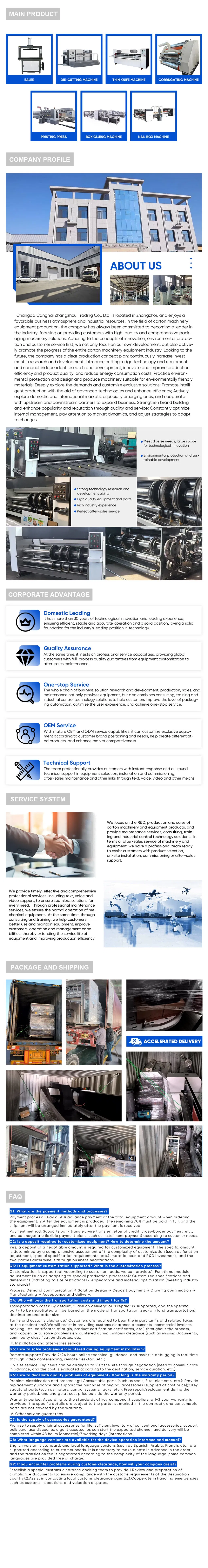

Process Workflow
Frequently Asked Questions
Q: What is the maximum production speed of this line?
A: The production line is designed for a maximum speed of 150m/min, with working speeds ranging from 80-130m/min depending on the number of layers (3, 5, or 7 layers).
Q: What is the maximum paper width the equipment can handle?
A: The production line supports a maximum paper width of 2200mm, with a minimum clamping range starting at 1000mm.
Q: How accurate is the cutting and slitting system?
A: Both longitudinal slitting and cross-cutting systems achieve a high precision accuracy of ±1mm through advanced servo motor and PLC control.
Q: What kind of materials are used for the corrugated rollers?
A: The corrugated rollers are made of high-quality 48CrMo alloy steel with a diameter of 320mm to ensure long-term durability and board strength.
Q: Does the machine support automatic order changes?
A: Yes, the system features a computerized thin blade slitter and spiral knife cross-cutter that can achieve no-stop order changes in as little as 3 to 8 seconds.
Q: What are the power and steam requirements for operation?
A: The installed power capacity is approximately 220KW (150KW normal consumption). It requires a steam pressure of 10-12kg/cm² with a dosage of about 4000kg/Hr.
