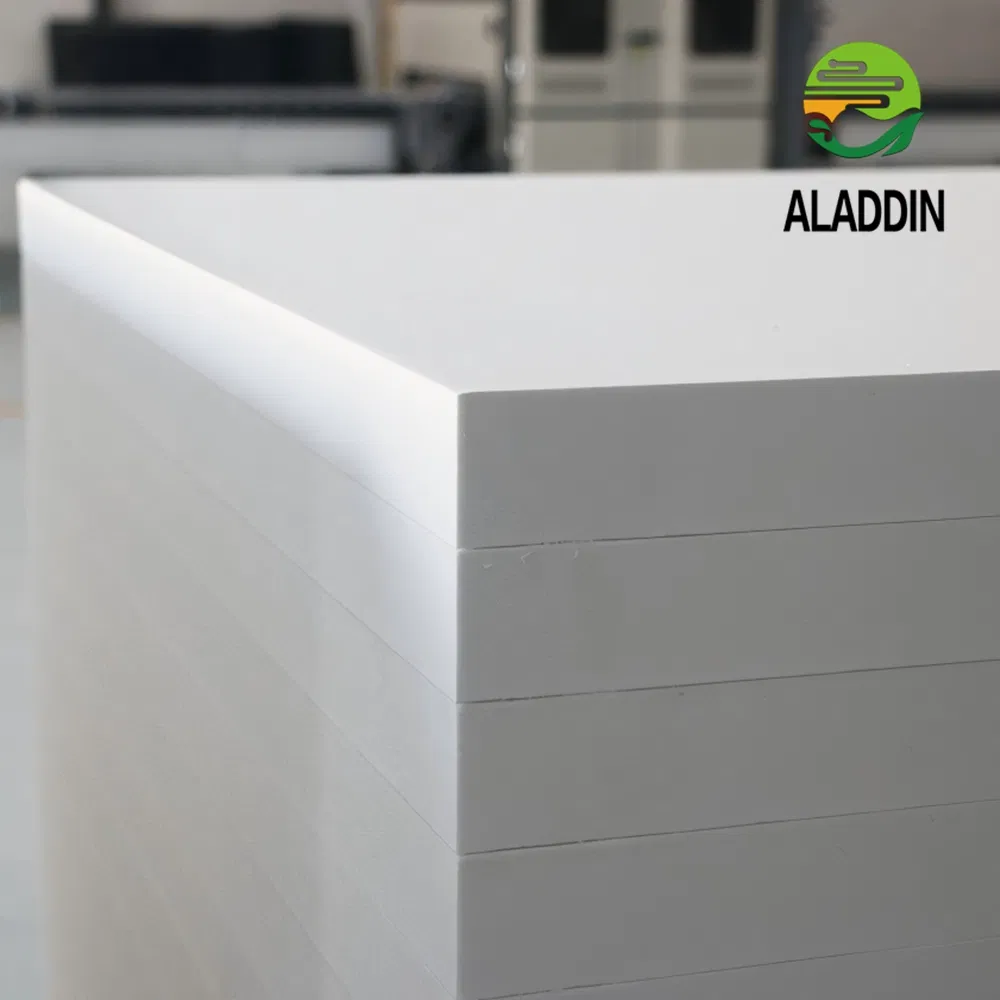

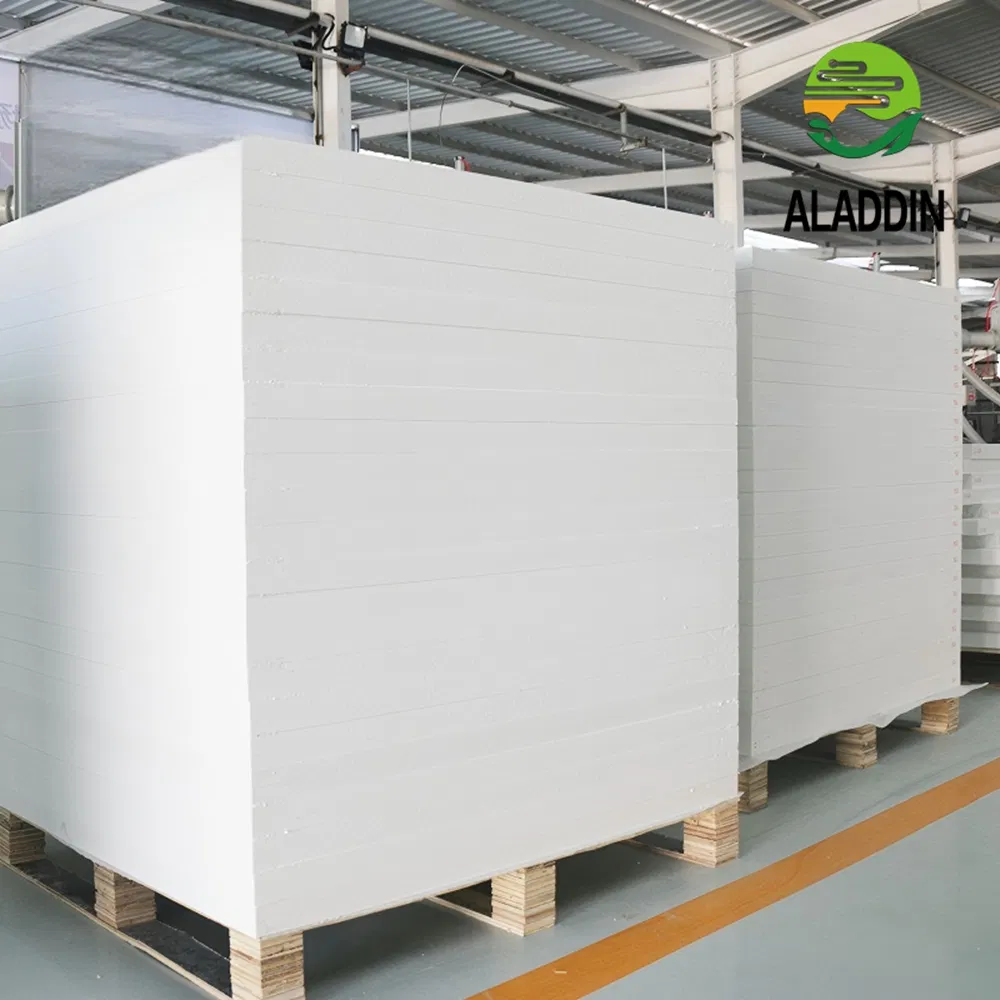

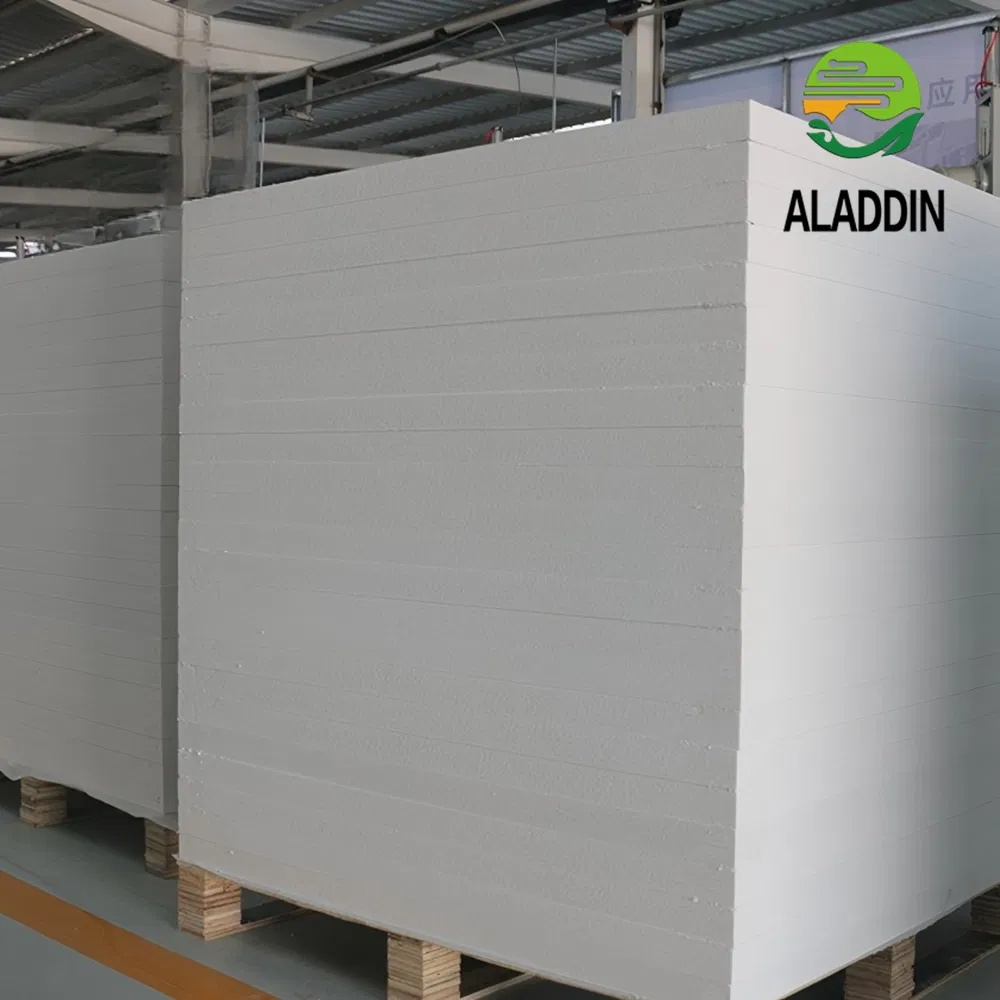

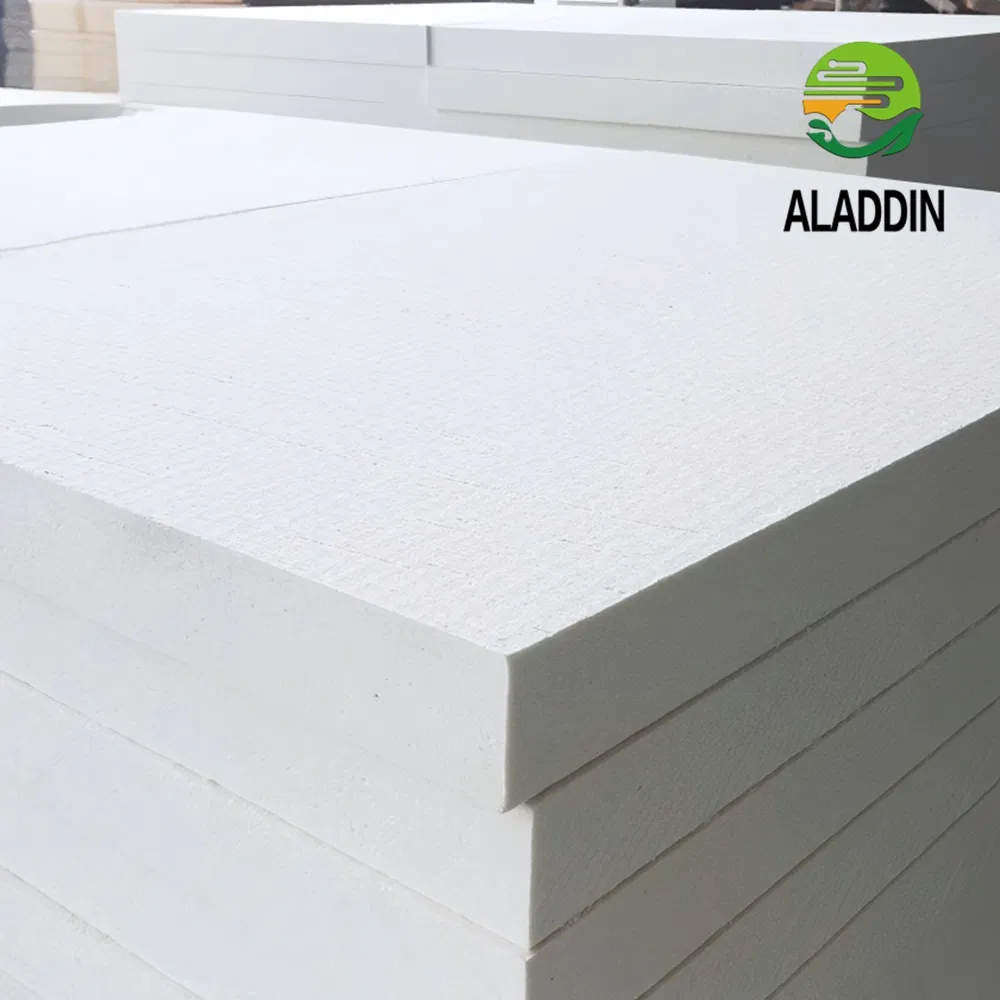

Supports Small-Area Complex-Shaped Fiberboard Cutting and Processing Services
Product Description
📋 Basic Information
Model NO.
Ceramic Fiberboard
Chemical Composition
Al2O3.SiO2
Shape
Ceramic Fiber Plate
Manufacturing Technique
Spray Silk Rug
Type
1260c Standard
Classification Temp
1260c
Bulk Density
280~320kg/M3
Color
White
🔍 Product Description
Ceramic Fiber Board Series are rigid board products made from ceramic fiber bulk, added with appropriate amounts of organic binders and inorganic adhesives. The products undergo vacuum forming, drying, and precision processing. They can be sintered to form inorganic fiber boards; alternatively, their organic properties can be retained if the application scenario is compatible with organic materials.

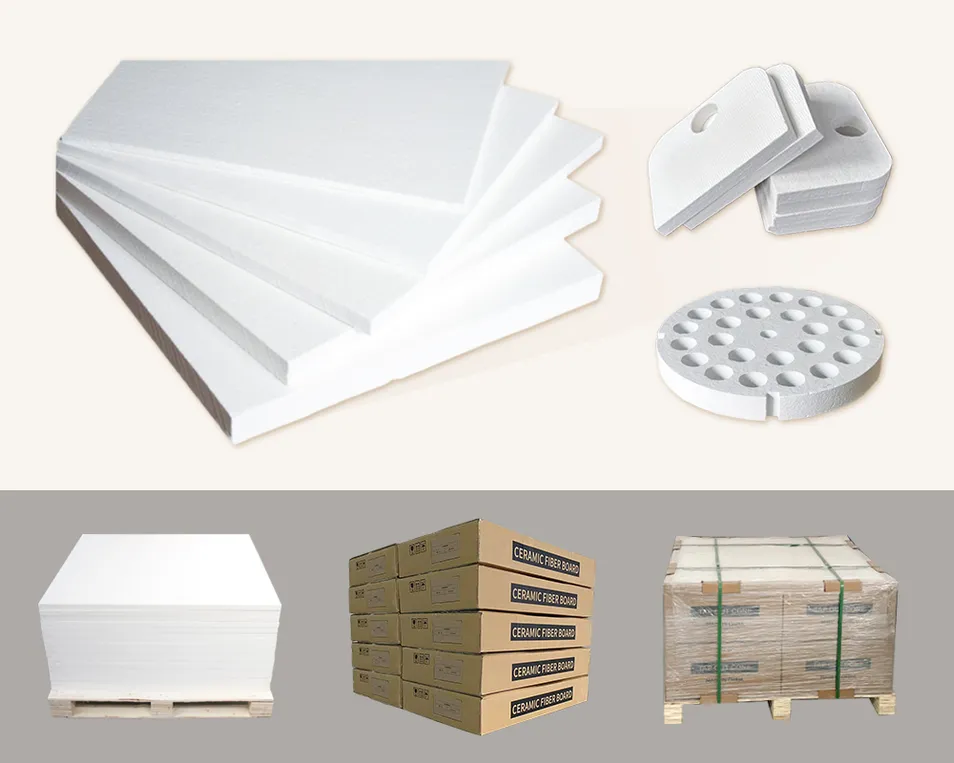

Product Features
Thermal Performance

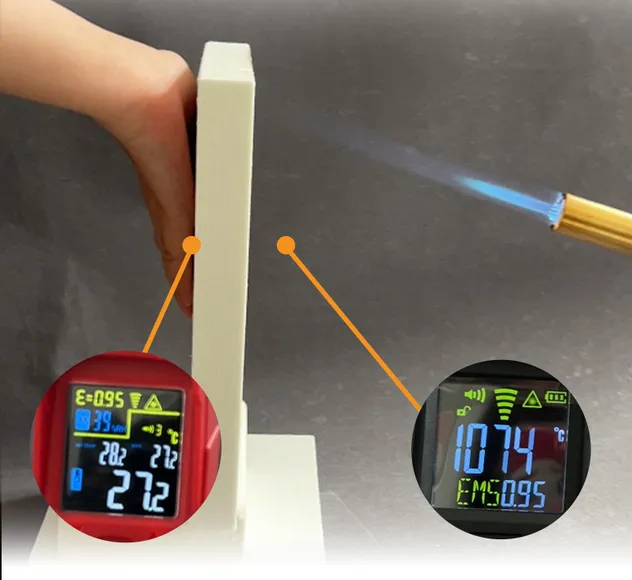

Low thermal conductivity, low heat capacity, thermal shock resistance, and corrosion resistance.
Low thermal conductivity, low heat capacity, thermal shock resistance, and corrosion resistance.
Durability

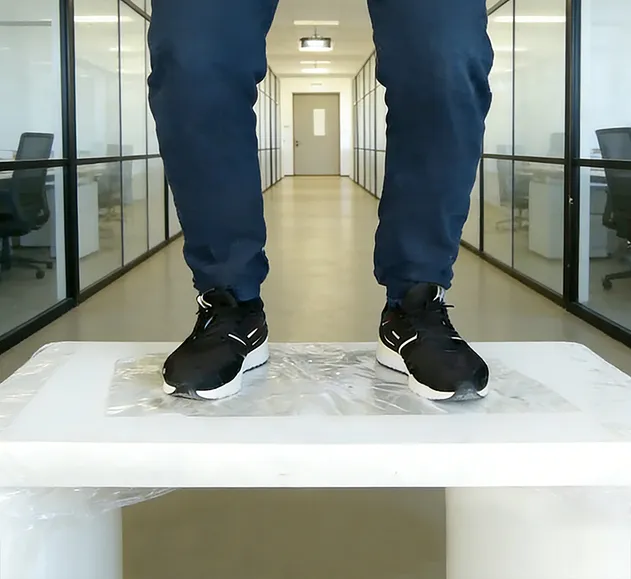

Product density and hardness are uniform, with good internal bonding strength.
Product density and hardness are uniform, with good internal bonding strength.
Resistance
Excellent post-fire strength and resistance to thermal jet erosion.
Excellent post-fire strength and resistance to thermal jet erosion.
Easy Processing
Easy to cut, convenient for installation and use.
Easy to cut, convenient for installation and use.
Typical Application Demo
Typical Applications:
- Refractory thermal insulation for ladle back lining, tunnel kilns, and roller kilns.
- Thermal treatment furnace insulation lining and backing materials.
- Glass and building materials industries insulation.
- Thermal insulation pads and customizable cut-to-size equipment parts.
📊 Specifications & Performance
| Product Name | ALD-STD | ALD-HP | ALD-GL | ALD-HA | ALD-Zr | ALD-CHr | |
|---|---|---|---|---|---|---|---|
| Classification temp (℃) | 1260 | 1260 | 1350 | 1400 | 1430 | 1500 | |
| Density (Kg/m³) | 300±10% | ||||||
| Flexural strength (MPa) | ≥0.8 | ||||||
| Thermal conductivity (600℃) | 0.11 W/(m·K) | ||||||
| Standard Size (mm) | 1000 × 600 / 1200 × (10-100) | ||||||
⭐ Why Choose Our Fiberboard?
1. Direct Factory Supply: Competitive pricing by eliminating middlemen.
2. Stable Quality: 30 years of production experience and strict quality control.
3. High Capacity: Annual production of 200,000 tons ensures fast delivery.
4. OEM/Customization: Tailored specifications to meet your specific industrial needs.
🛠️ After-Sales & Support
We provide a complete sales system including one-stop supply assurance, professional design consultation (drawing detailing), construction guidance for project quality, and long-term technical follow-up. Our collaborative R&D supports unique shapes and extreme working conditions.
❓ Frequently Asked Questions
What is the maximum temperature these boards can withstand?
The classification temperatures range from 1260°C for standard types up to 1500°C for high-chromium varieties.
Can I request custom sizes and shapes?

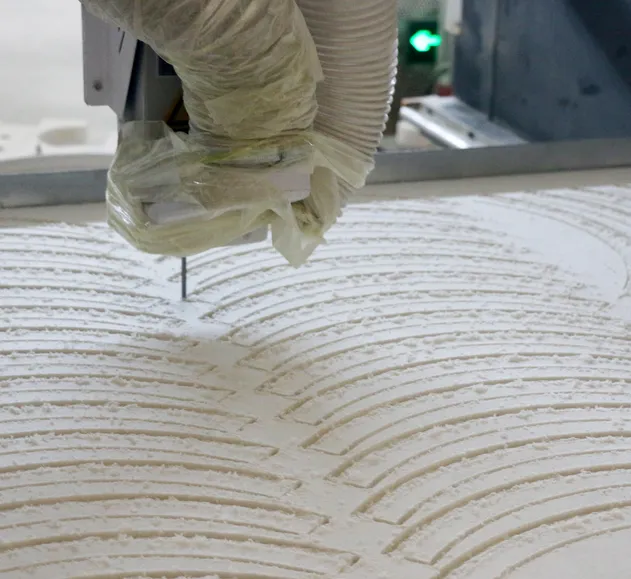

Yes, we support customized production and can design and cut fiber boards according to your specific drawings.
Are samples available for testing?
Absolutely. Standard samples are provided free of charge for quality evaluation.
What certifications do your products have?
Our ceramic fiber products have passed SGS, REACH, ROHS, and CE certifications.
What is the typical lead time for orders?
For standard products, sample lead time is usually 3 days. Large scale orders are prioritized by our 4 production bases to ensure prompt delivery.
Do you provide installation guidance?
Yes, we provide installation drawings and construction guidelines for engineering projects to ensure optimal project quality.
