Product Description

✨ Basic Information
Model NO.B-Rock Wool Board
Working Temp800℃
MaterialRock Wool
Density70-200kg/M3
Refractory GradeNon-Inflammable
Thickness25-150mm
OriginChina
Production2000 Ton/Year
📦 Product Description
Rock Wool Banner

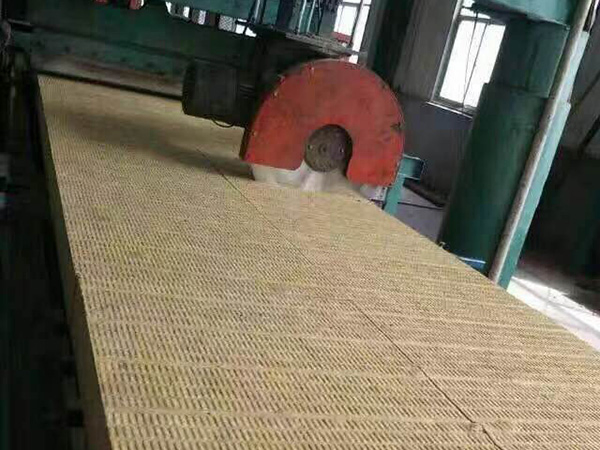

Our rock wool board is made of select fine basalt as the major materials which is pulled into 4-7µ non-continuous fibers after melted by adopting advanced international four-roller centrifugal cotton-making procedures and adding certain adhesives and water repellent. It can be made into products series with different density according to various uses through technology of sedimentation, solidify, and cutting.

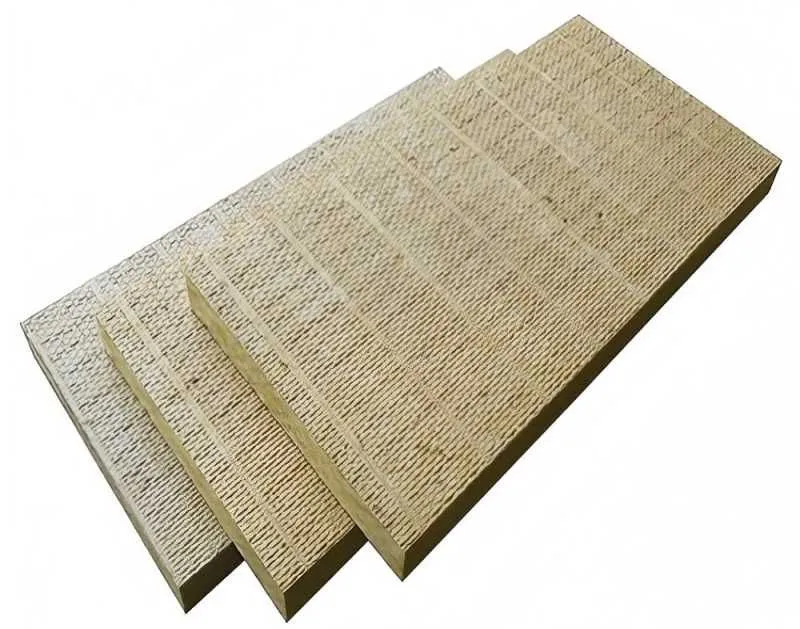

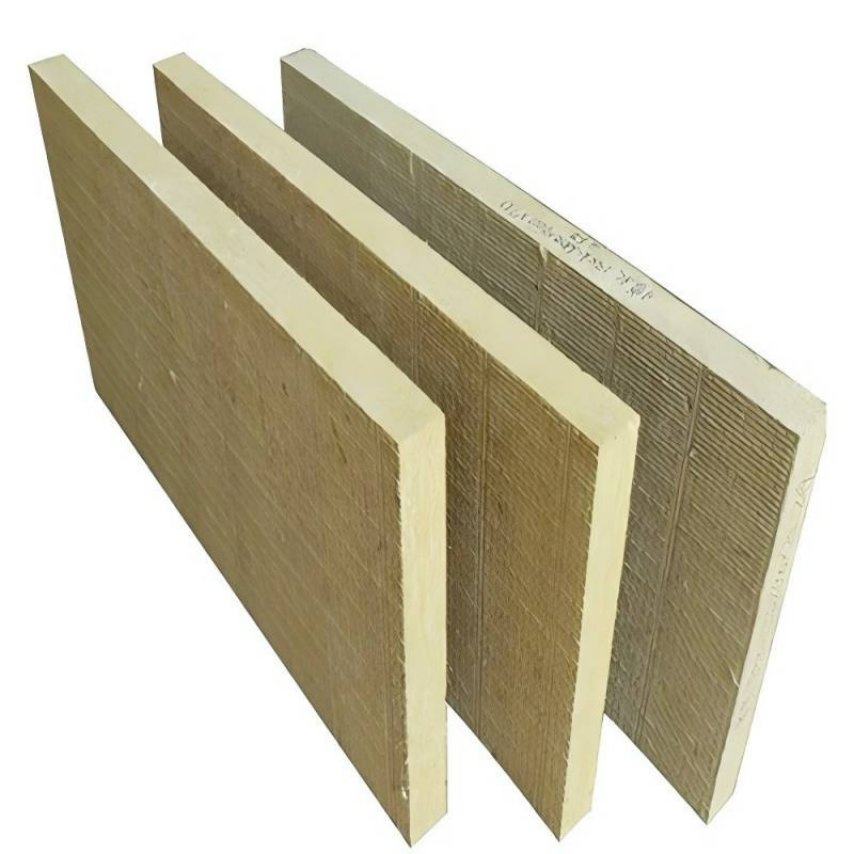

Product View 1

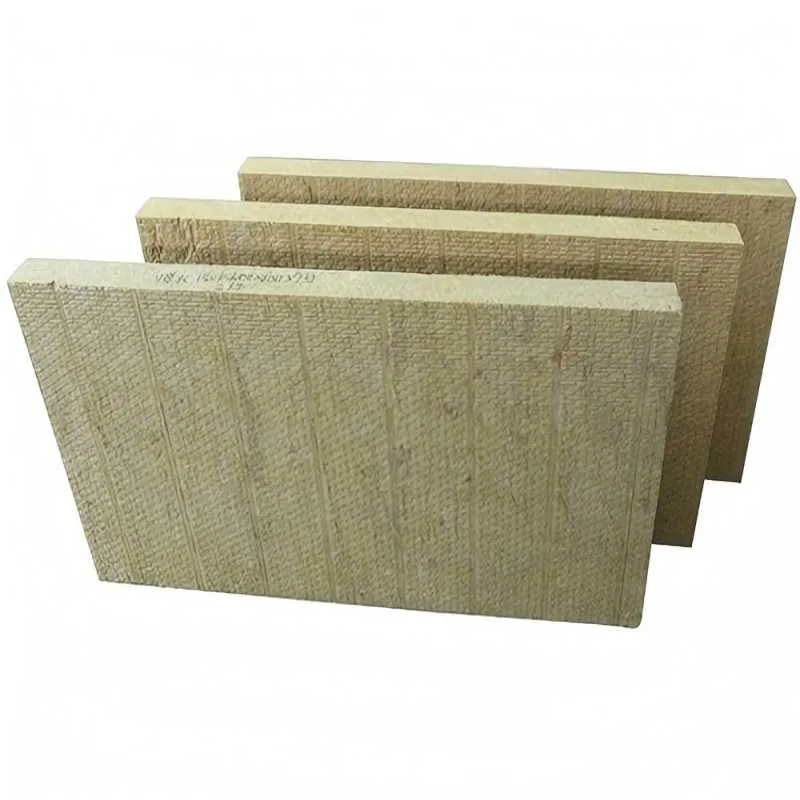

Product View 2
Density: 70-200 kg/m³
Thickness: 25-150 mm
Excellent thermal and acoustic insulation
Moisture-resistant and fire resistant (Refractory)
📊 Product Parameters
Parameters Header
Item Unit Index Experimental Method
DensityKg/m370-200kg/m3GB5480.3
Fiber Average Valueum4-7GB5480.4
Slag Ball Content%6GB5480.5
Volume Water Absorption%2GB/GB16401-1996
Moisture Resistivity%98B10299-88
Shrinkage Temp650GB11835-1998
Thermal ConductivityW/mk0.036~0.048GB10294-88
Incombustibility--Grade AGB5465
Parameter Image 1
Parameter Image 2

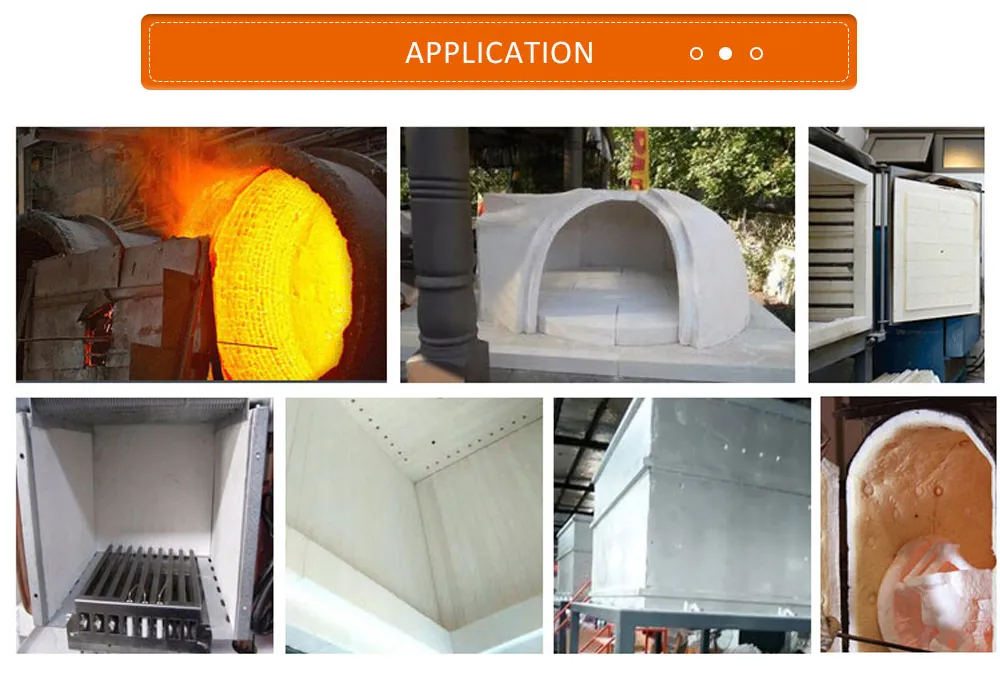

🏠 Applications
Application Image

Rock wool insulation materials are widely used in:

🔹Construction walls and roofs
🔹Industrial furnaces and ovens
🔹Heat-treating equipment and storage tanks
🔹Power houses, flues, and petrifaction equipment
🔹Oil refining and keep-warm heat insulation pipelines

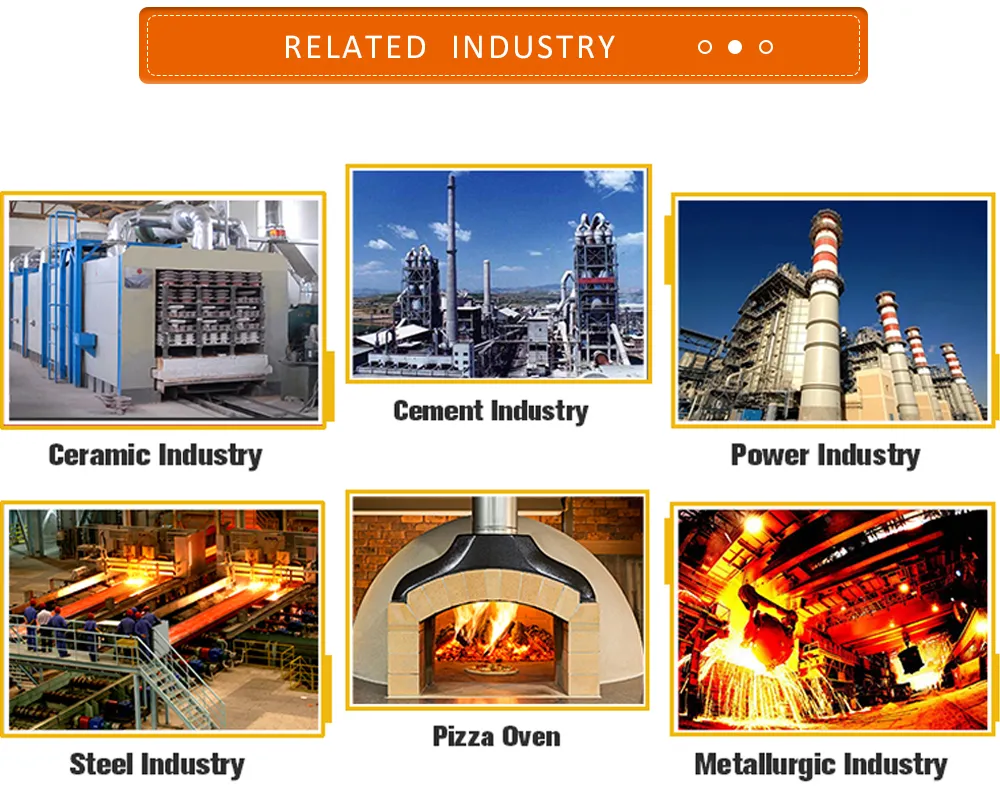

Application Detail
🏢 Professional Profile

With over 20 years of production and trading experience, we are professionally engaged in the research, development, and sales of all types of refractory and insulation materials. Our product range includes alumina series bricks, ceramic fiber products, calcium silicate products, and high-grade rock wool insulation for metallurgy, glass, petrochemical, and construction industries.

We provide a global one-stop purchasing platform, offering professional advice and qualified products to make energy-saving easier. Our materials are exported to over 50 countries across Europe, South America, North America, and Southeast Asia.

Production Facility
Quality Control

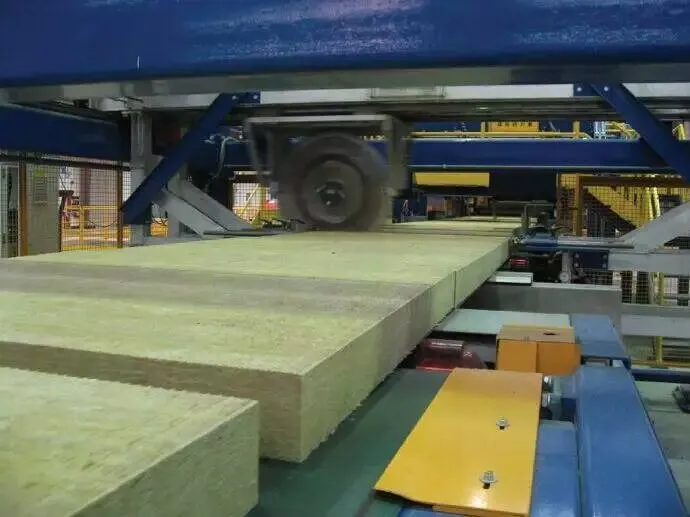

Workplace
Global Reach
❓ Frequently Asked Questions
Q1: What is the maximum working temperature of the rock wool board? A: The highest working temperature for this rock wool board is 800℃, making it suitable for high-heat industrial applications.
Q2: Is the material fireproof? A: Yes, it is classified as Grade A Non-inflammable, providing excellent fire resistance for construction and industrial use.
Q3: Can the density and thickness be customized? A: Absolutely. We offer densities ranging from 70-200kg/m³ and thicknesses from 25mm to 150mm to meet specific project requirements.
Q4: What are the primary applications for rock wool insulation? A: It is widely used for wall and roof insulation in buildings, as well as for industrial furnaces, storage tanks, and power house pipelines.
Q5: Is the rock wool moisture-resistant? A: Yes, it has a moisture resistivity of 98% and low volume water absorption, ensuring durability in various environments.
Q6: What standards do your products follow? A: Our products are tested according to GB standards (such as GB5480 and GB10294) and we are ISO 9001 certified.
