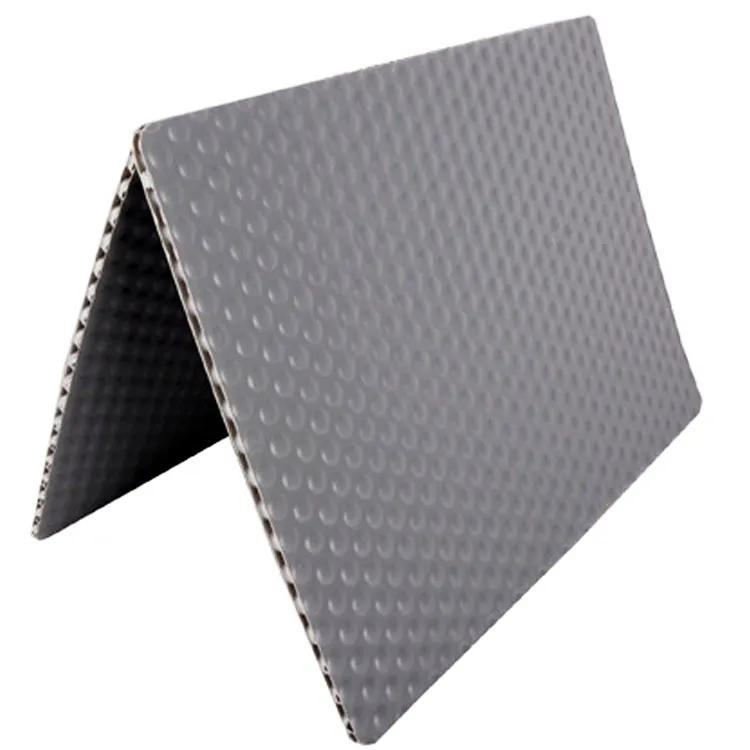

Plastic Polypropylene PP Honeycomb Board for Packing Protection Printing
Product Description
Basic Information
| Model NO. | 8x4 2440x1220 2400x1200 1800x1200 | Material | PP (Polypropylene) |
| Kind | Packaging Sheet | Water Absorption | ＜0.01% |
| Thickness | 3mm-12mm | Tensile Strength | 81~130MPa |
| Features | Lightweight, Reusable, Waterproof, Anti-Corrosion | Processing | Cutting, Printing, Welding, Binding, Corona Treat. |
| Surface | High Surface Hardness, Smooth, Easy to Printing | HS Code | 3921900000 |
Product Description

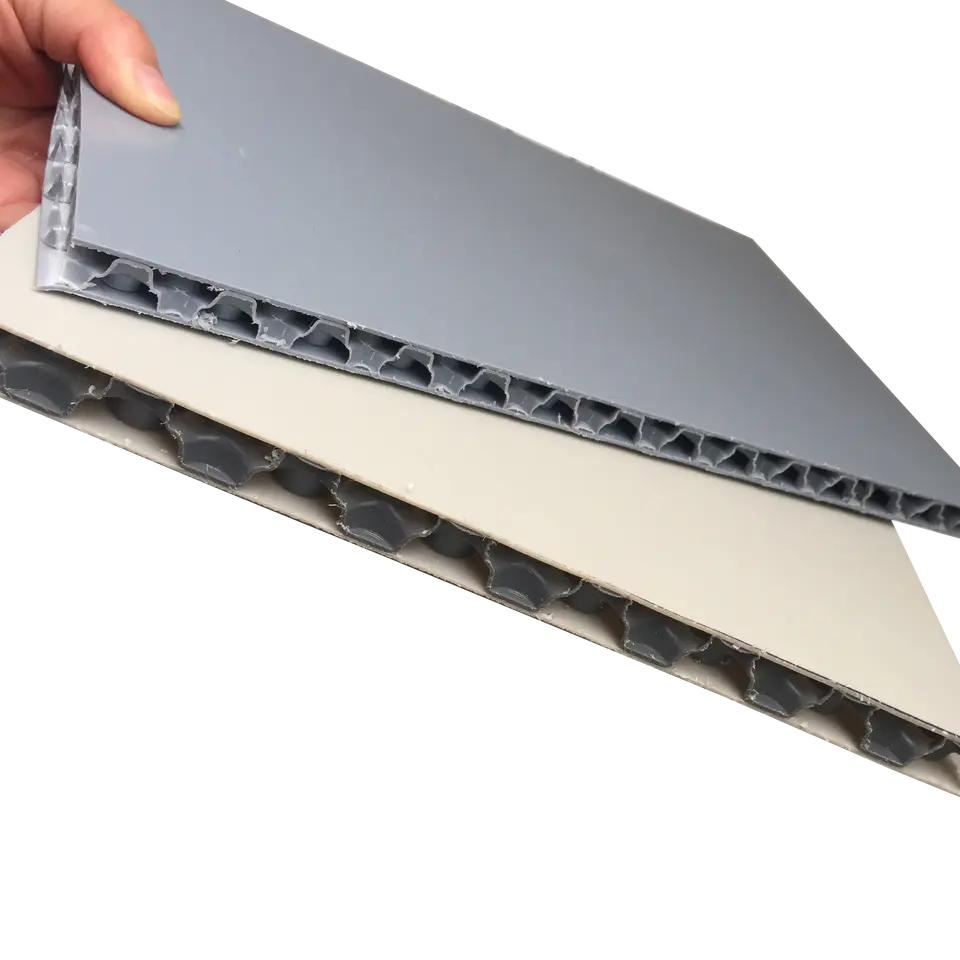

Plastic Polypropylene PP Honeycomb Board for Packing Protection Printing

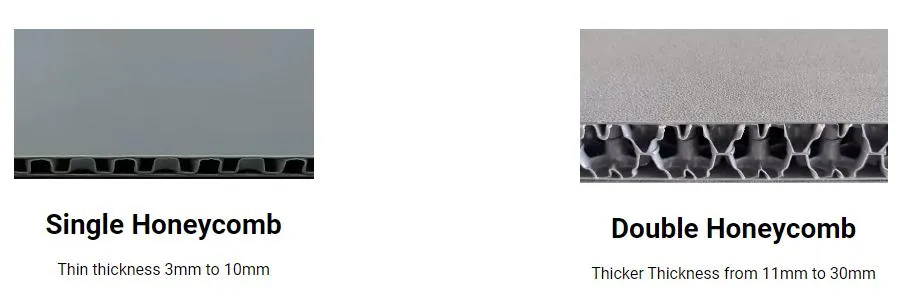

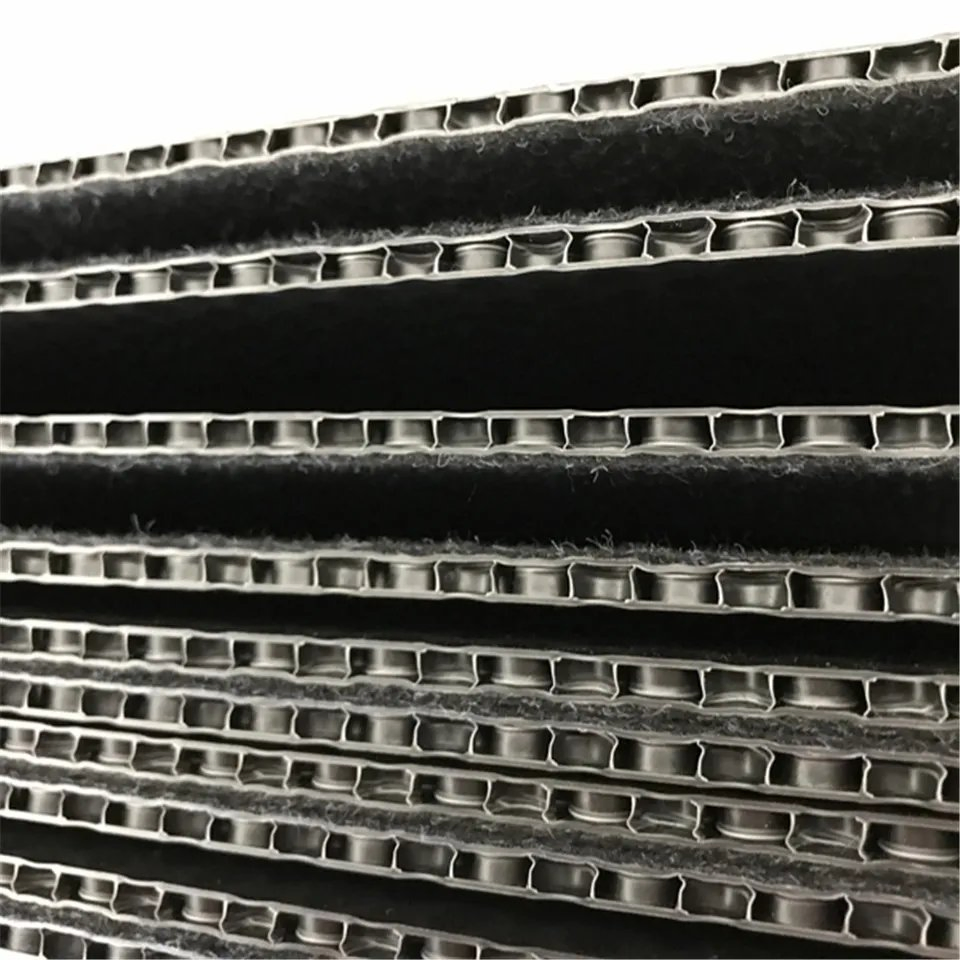

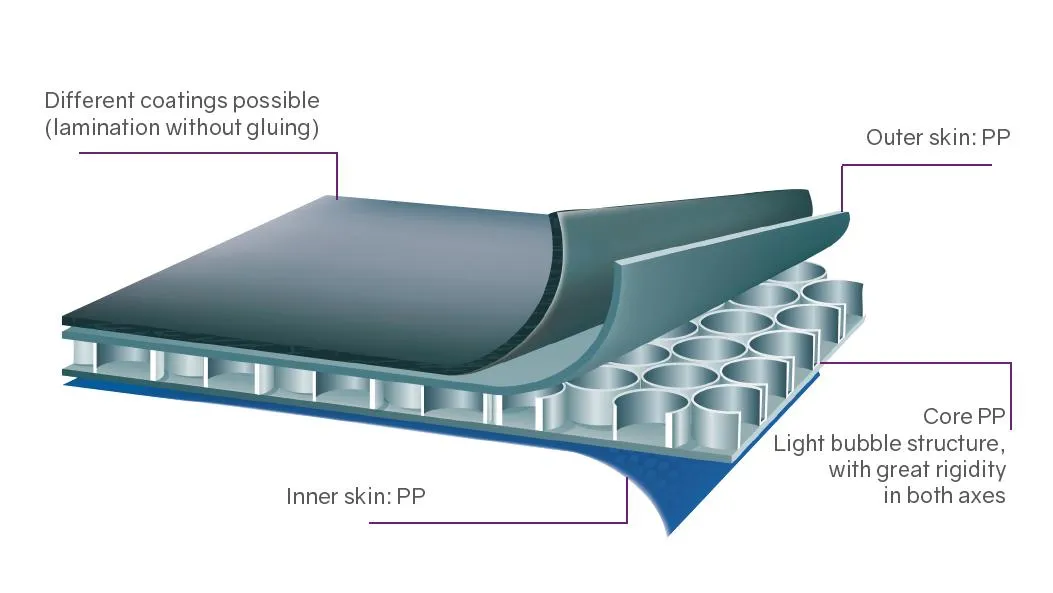

Polypropylene Material PP Honeycomb Board (also known as Bubble Boards, Cellular PP Corrugated Plastic, or Core Sheet) consists of three polypropylene layers. The middle layer features a special honeycomb structure formed via thermo-forming. The outer and inner layers hold the bubble layer, providing a very light and stable tri-laminate structure.
With co-extrusion and laminating technologies, different materials can be added to PP bubble guard sheets, creating innovative products for diverse applications. These panels feature a unique sandwich structure with one or two flat surfaces, offering a light weight, waterproof, and durable solution for automotive, packaging, and logistics industries.

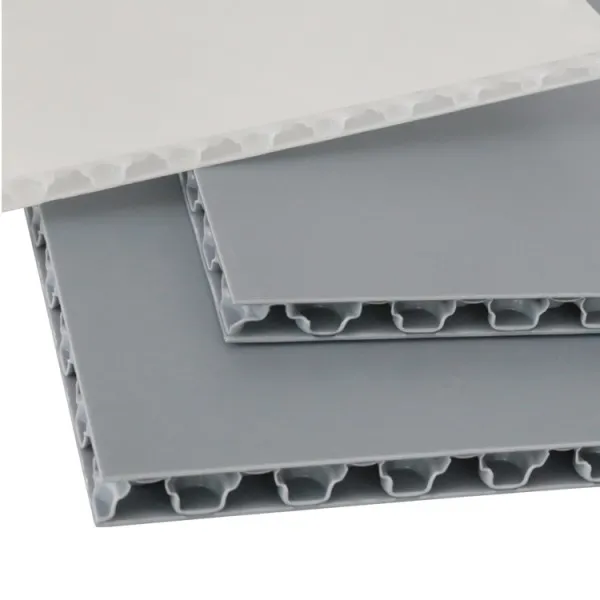

Product Advantages
- 100% Recyclable: Environmentally friendly material.
- Waterproof: Ideal for humid environments and protection.
- High Stability: Light weight but offers excellent structural integrity.
- Impact Resistant: Stronger and more durable than traditional corrugated sheets.
- Surface Versatility: Excellent appearance for printing or lamination.
- Easy Processing: Suitable for cutting, welding, and bonding.
Product Details & Options

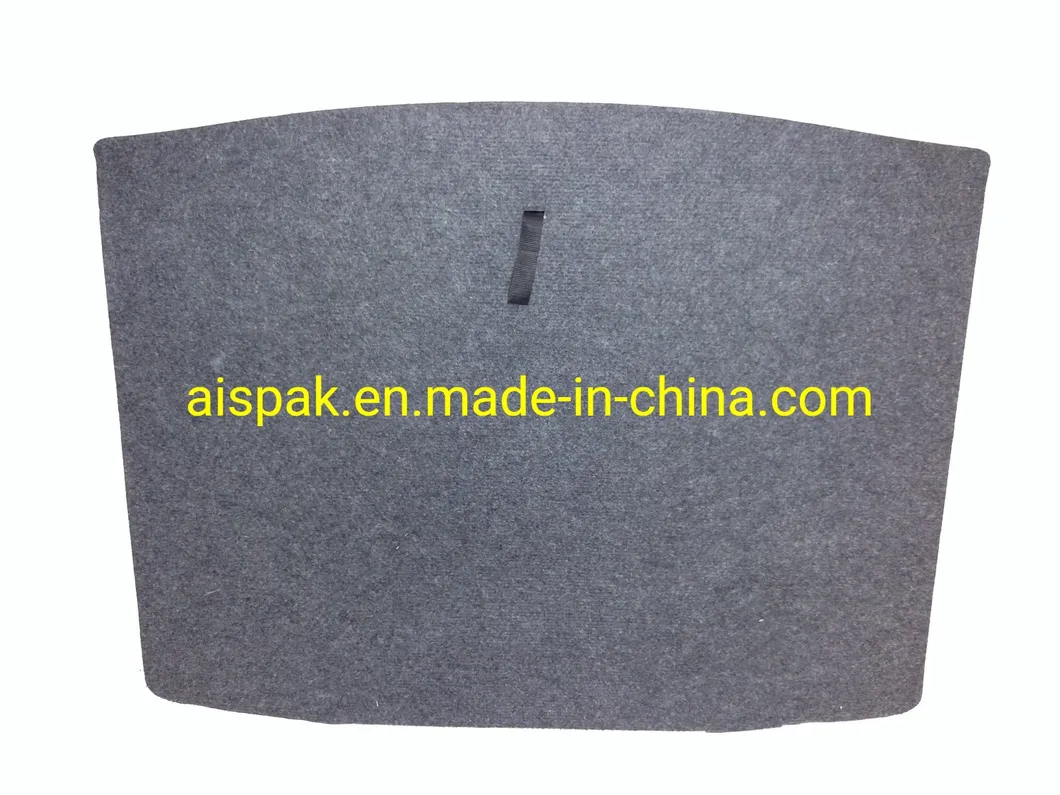

Also referred to as Conpearl Board or Twin Sheet Board, the middle layer's bubble structure provides superior rigidity. It is widely used for Pallet Pack Boxes, collapsible containers, trunk floors, and spare tire covers.
Available Customization Options
- Custom graphic printing

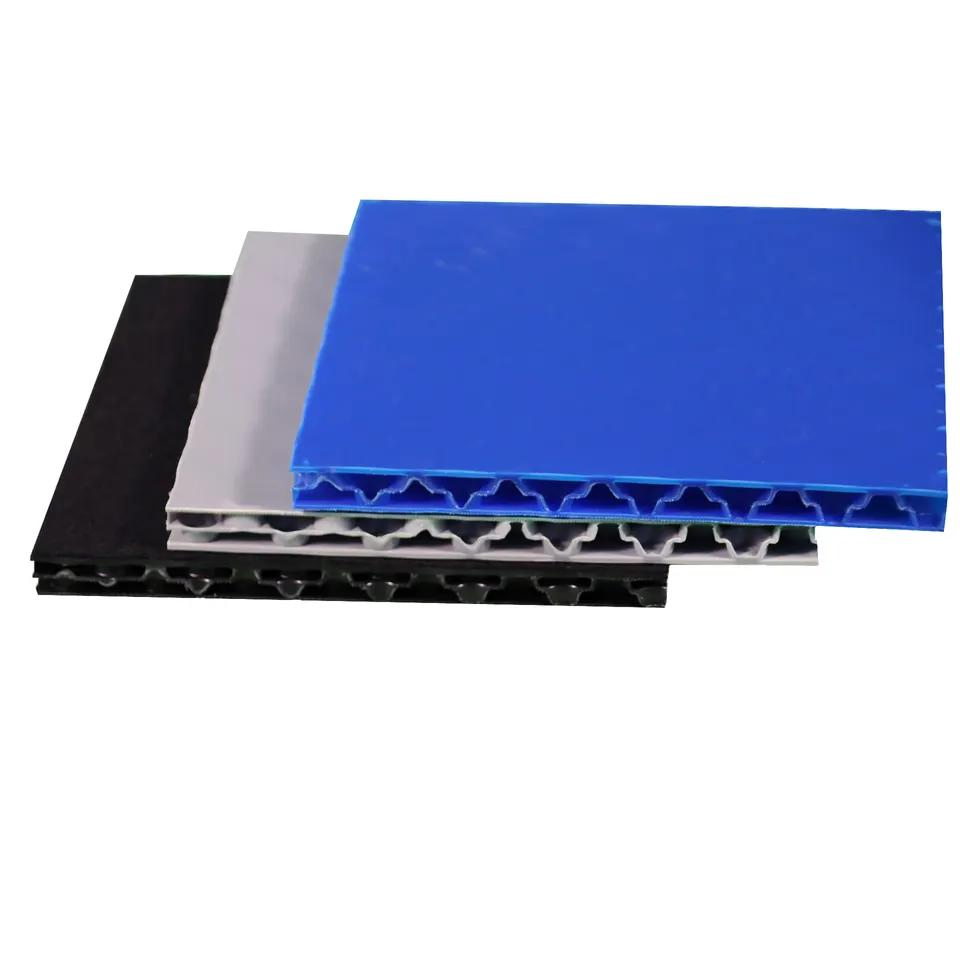

- Custom colors upon request
- Anti-static and ESD treatments
- UV resistance for outdoor use
- Flame retardant grades

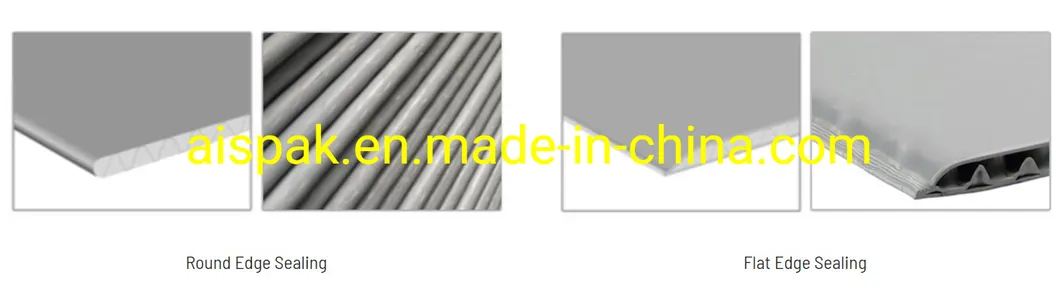

- Sealed edges for food-grade applications

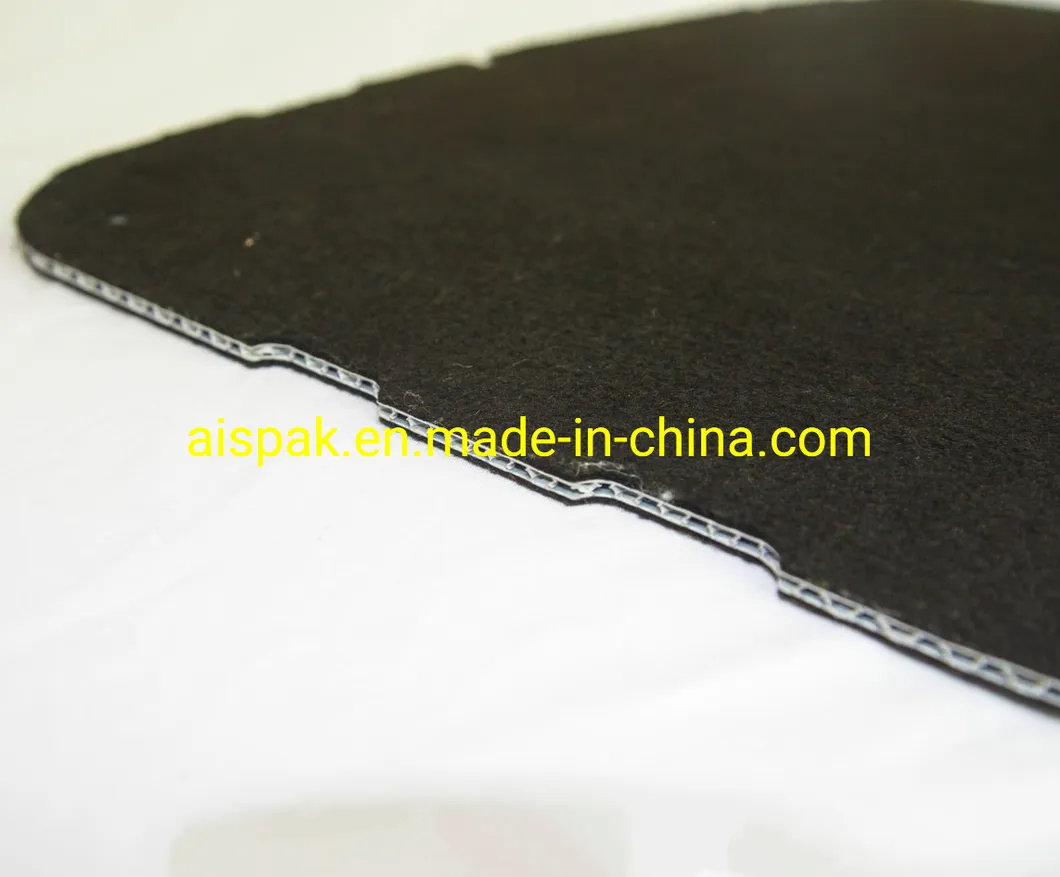

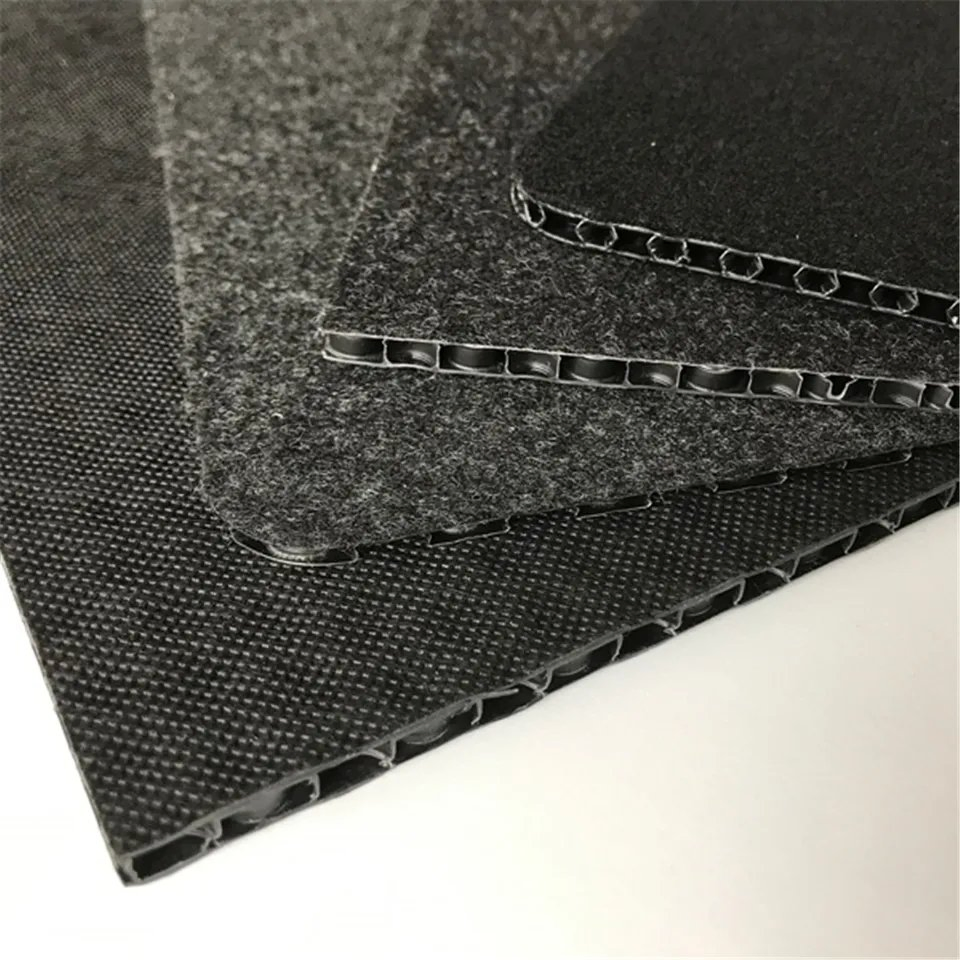

- Surface laminations (Fleece, Foam, TPO, PVC Rubber, Textile)
Product Parameters
| NO. | THICKNESS (mm) | GRAMMAGE (GSM) | WIDTH (mm) | LENGTH (mm) | TOLERANCE |
|---|---|---|---|---|---|
| 1 | 3 | 800 | 1220 | 2440 | L/W: ±5mm, T: ±0.2mm |
| 2 | 4 | 1000/1200 | L/W: ±5mm, T: ±0.2mm | ||
| 3 | 5 | 1500/2000 | L/W: ±5mm, T: ±0.2mm | ||
| 4 | 8 | 2500 | L/W: ±5mm, T: ±0.5mm | ||
| 5 | 10 | 3000/3500 | L/W: ±5mm, T: ±0.5mm | ||
| 6 | 12 | 3000/3500/4000 | L/W: ±5mm, T: ±0.5mm |
Product Application
The versatility of Polypropylene Honeycomb Sheets makes them an ideal replacement for expensive materials in various industries:

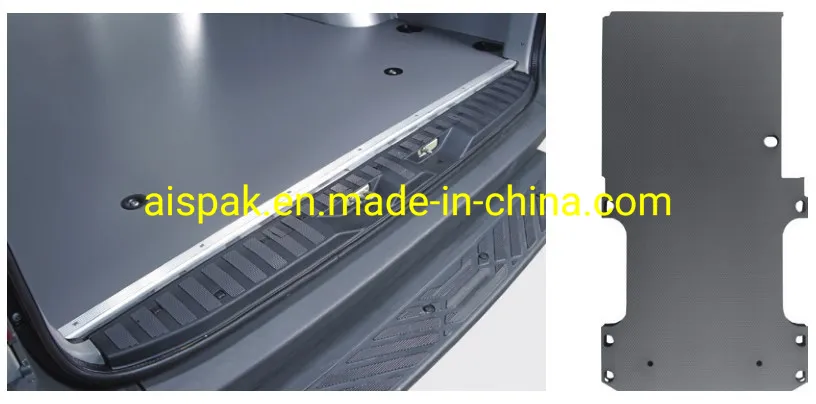

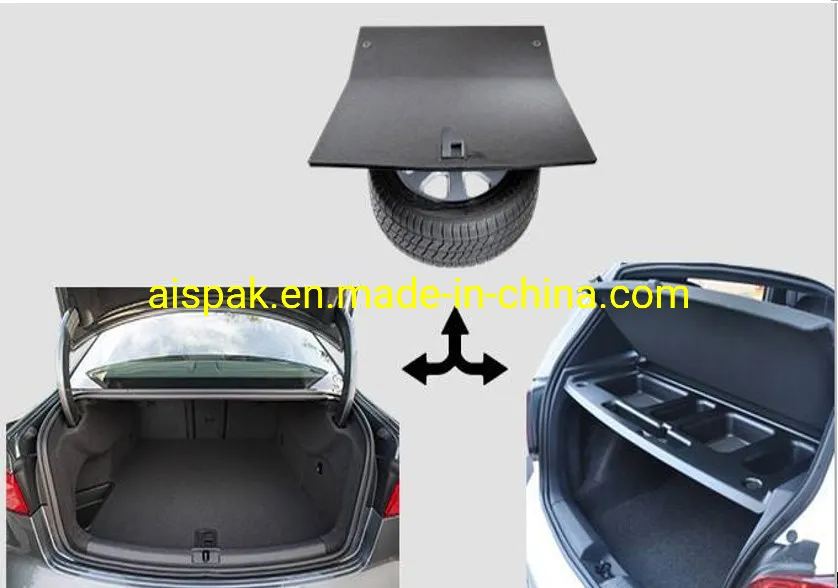

- Automotive Industry: Back wall panels, spare wheels housing, seat back, parcel shelves, and tyre covers.
- Packaging Industry: Pallet liners, layer pads, and multi-way collapsible boxes.
- Advertising Industry: Display boards, billboards, stand walls, and signs.
- Logistics Industry: Container liners, walls, and dividers.
- Decoration Industry: Floor protection during construction.
- Home Appliances: Refrigerator back walls and washing machine protection bottoms.

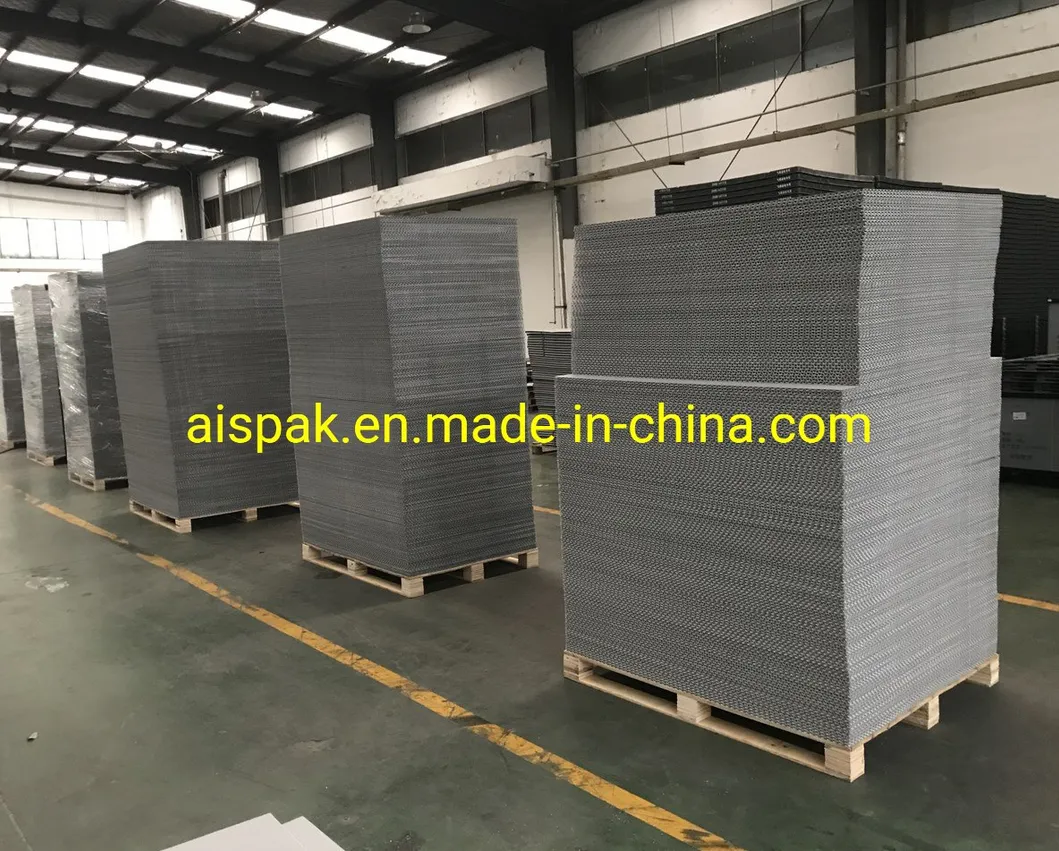

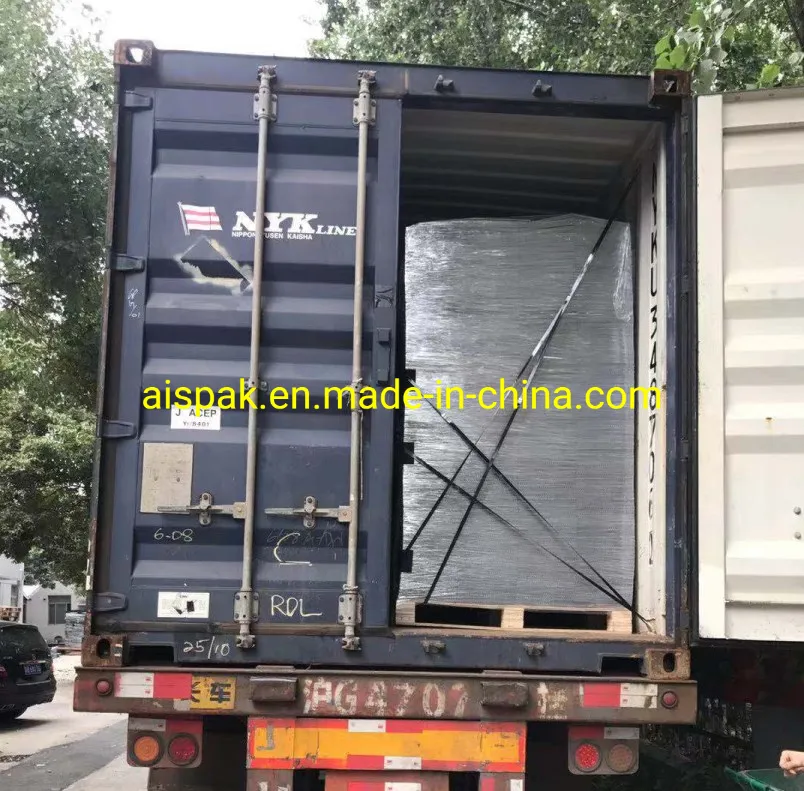

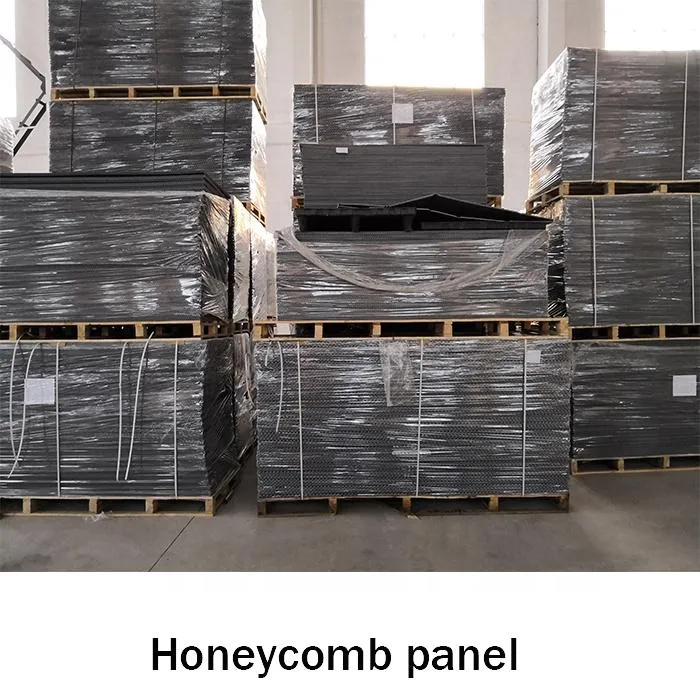

Packaging & Shipping
Frequently Asked Questions (FAQ)
Q1: What exactly is a PP Honeycomb Board?
A: It is a tri-laminate structure made of polypropylene, featuring a thermo-formed honeycomb middle layer and two flat outer layers, providing a lightweight yet high-strength sheet.
Q2: Is the material waterproof and recyclable?
A: Yes, PP honeycomb boards are 100% waterproof and fully recyclable, making them a sustainable choice for packaging and protection.
Q3: Can these boards be used for printing?
A: Absolutely. The smooth and high-hardness surface of the bubble guard sheet is excellent for screen printing and custom graphics.
Q4: What industries benefit most from this product?
A: Key industries include automotive (interiors), logistics (reusable containers), advertising (signs), and construction (floor protection).
Q5: Are there custom thickness options?
A: Yes, we offer a range of thicknesses from 3mm up to 12mm to suit different weight and durability requirements.
Q6: How can the surface be treated?
A: Surfaces can be laminated with felt fabric, non-woven materials, PVC rubber, or treated for anti-static and UV resistance.
