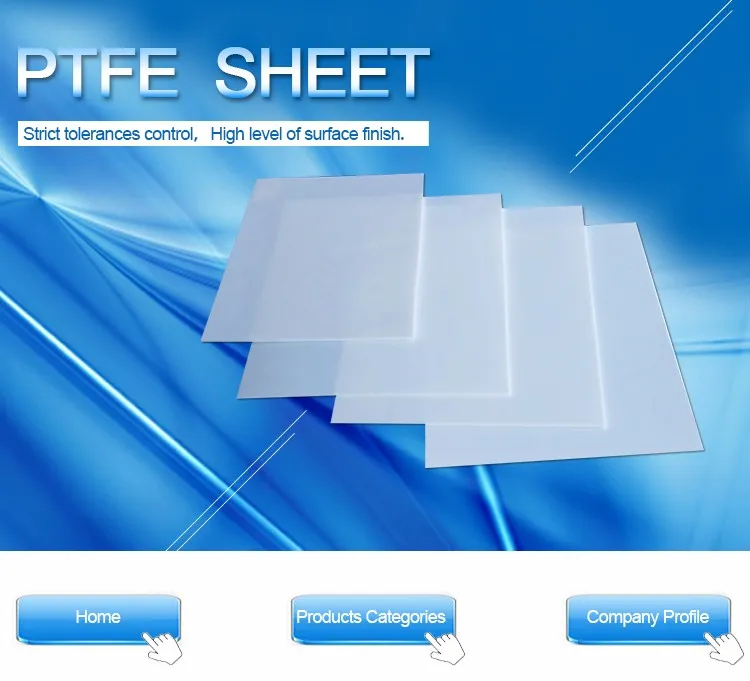

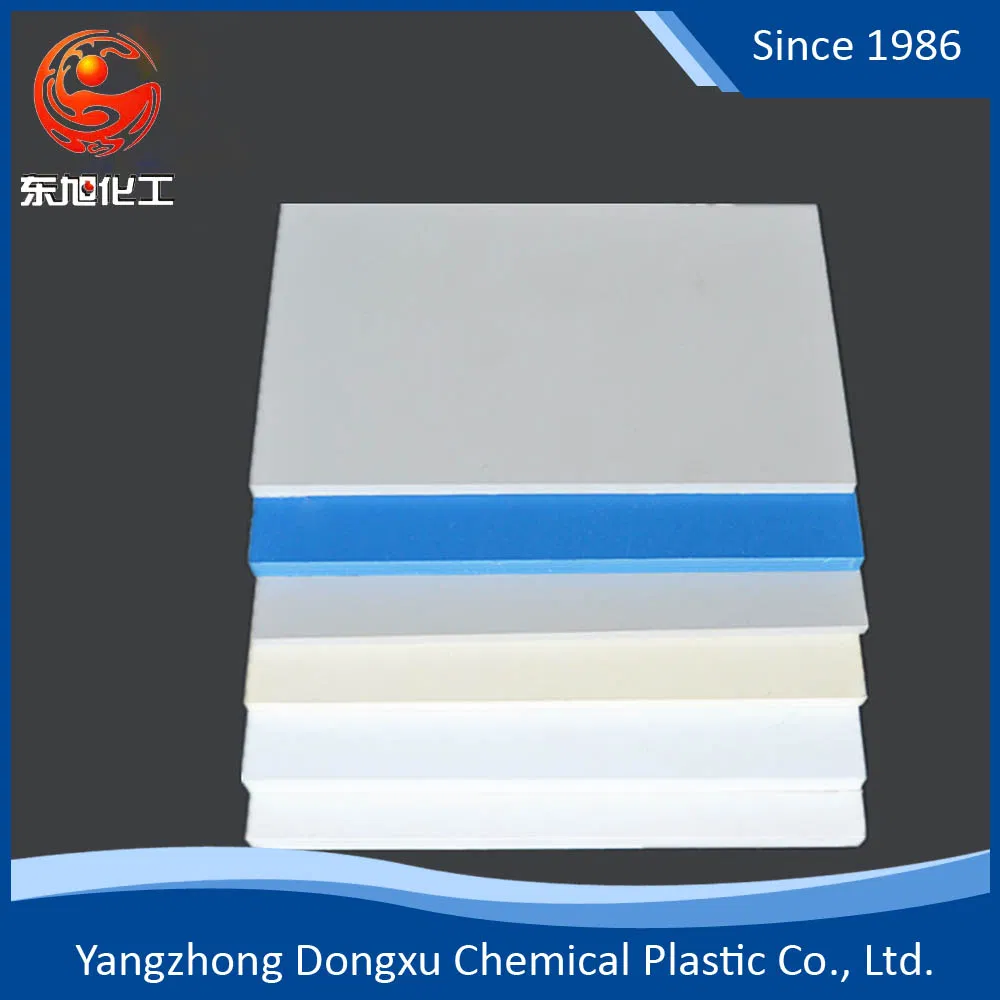

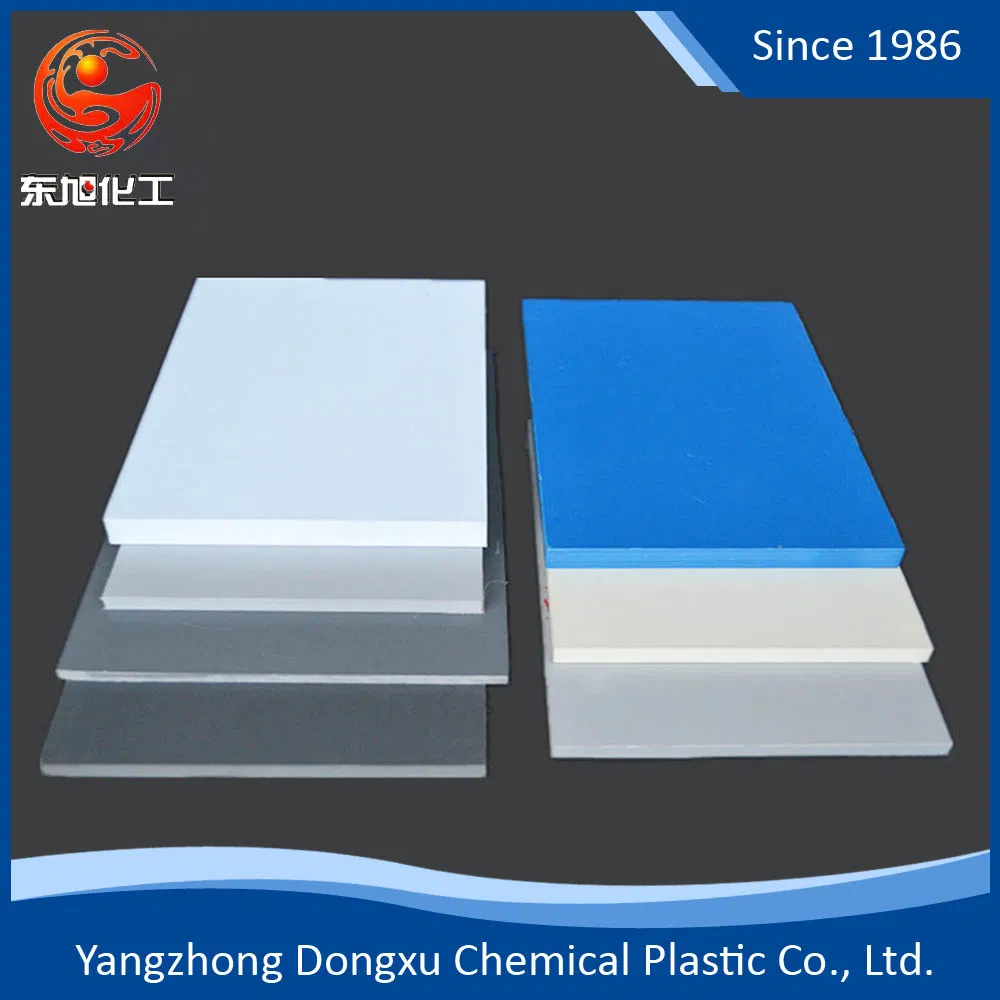

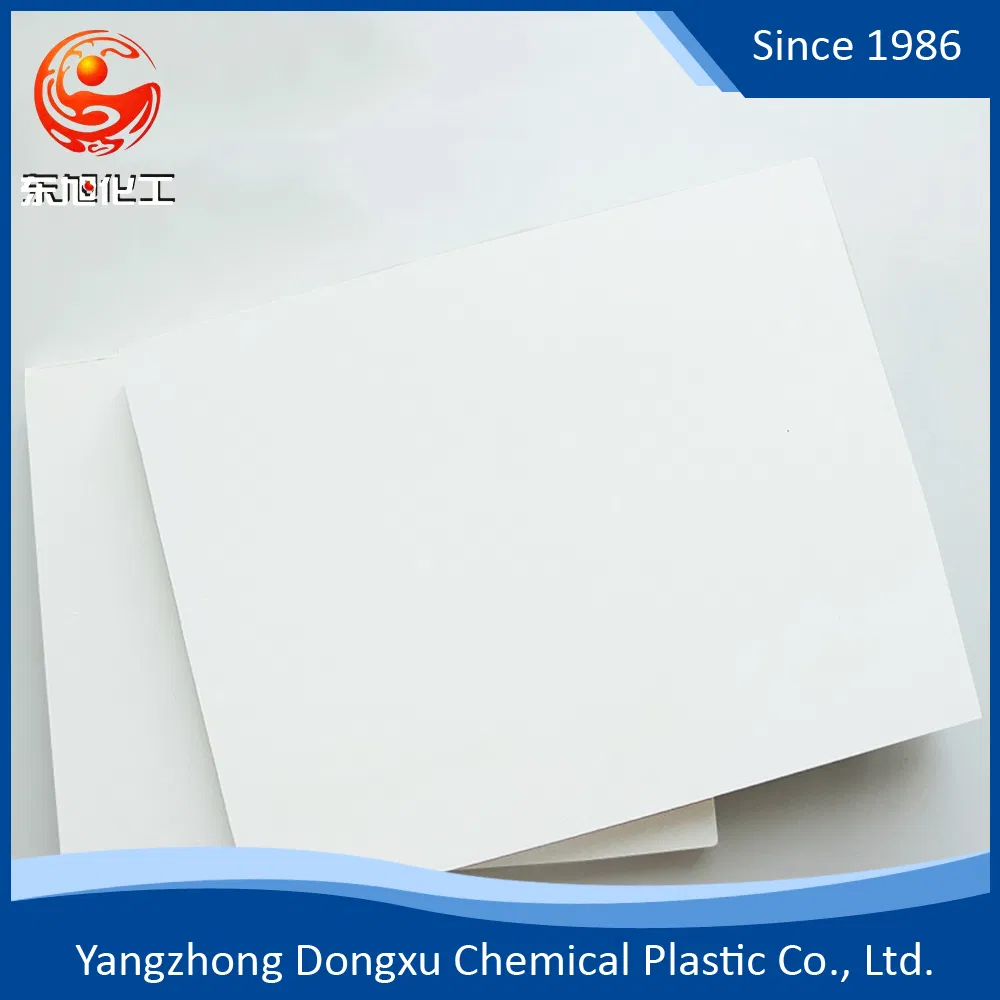

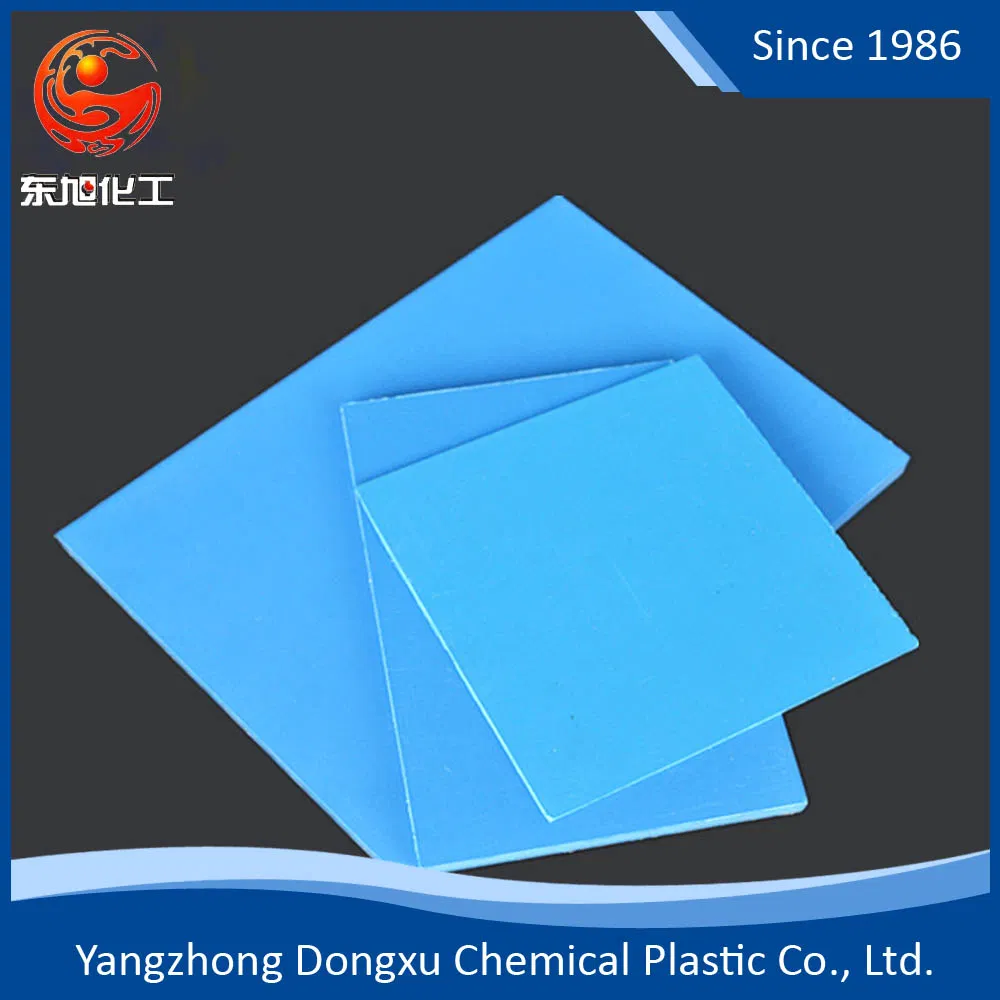

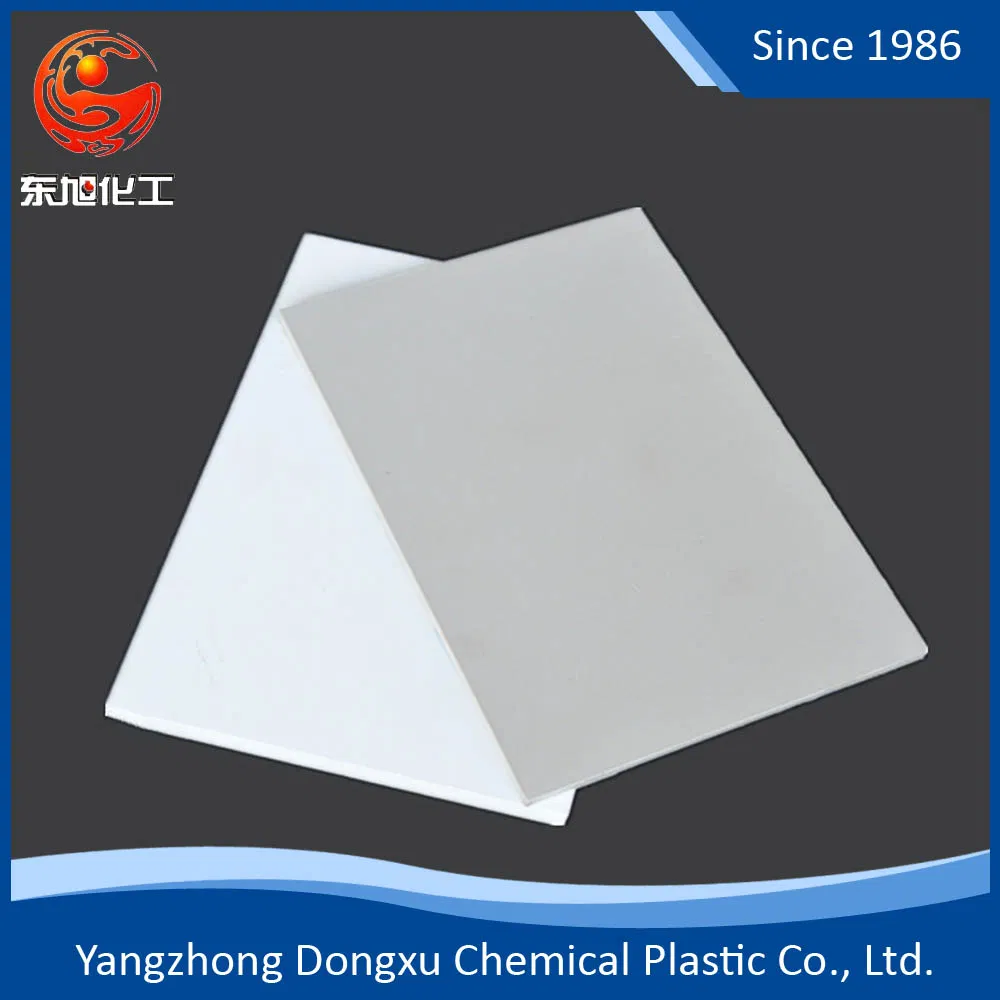

Lightweight Plastic Cutting Virgin White PTFE Plastic Board Sheet
Product Description
Basic Specifications
Water Absorption
＜0.01%
Contraction Percentage
＜0.4%
Tensile Strength
30~40MPa
Shape
Sheet, Board, Rod, Tube
Transport Package
Wooden Box
Origin
China
HS Code
39209910
Production Capacity
60tons/Month
Product Description

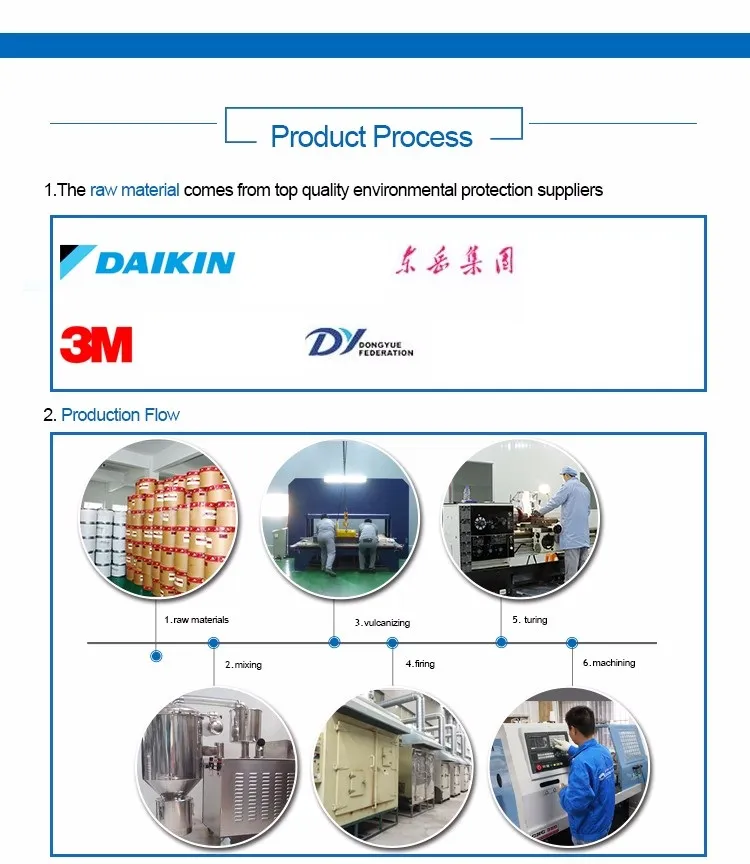

Skived PTFE Sheet is manufactured using advanced technology involving compacting, sintering, and rotary cutting with PTFE granular resin. Due to its exceptionally low coefficient of friction, the surface of the skived PTFE sheet exhibits friction levels similar to ice. This material is capable of operating in extreme temperatures ranging from -180°C to +260°C and stands as the premier electrical insulator among all known plastic materials.
Key Features
Drug Resistant: High chemical stability.
Corrosion Resistant: Resists harsh environments.
Temperature Resistant: Stable from -180°C to +260°C.
Abrasion Resistant: Durable surface life.
Voltage Resistance: Superior dielectric properties.
Applications & Fields

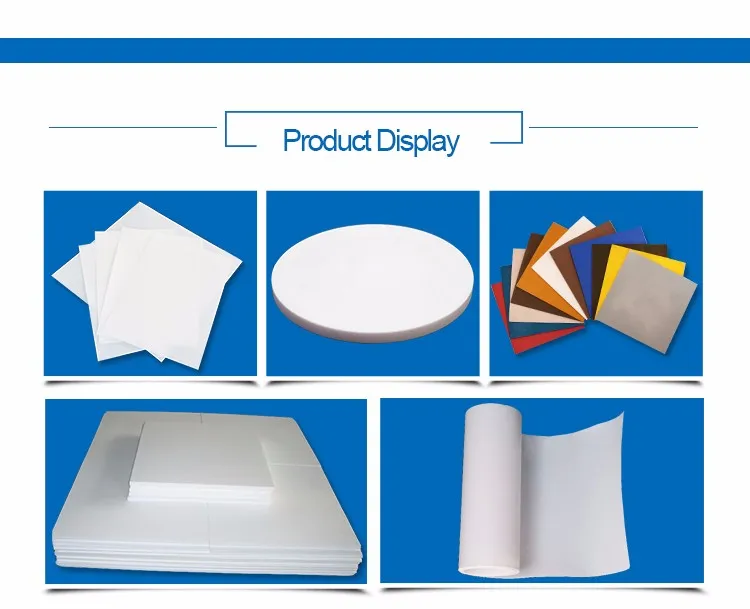

Skived PTFE Sheets are highly versatile and widely used as linings, sealing components, wire isolation, slide blocks, gaskets, seals, and dielectric materials.
Technical Data
| Property | Unit | Result |
|---|---|---|
| Apparent Density | g/cm3 | 2.10-2.30 |
| Tensile Strength ≥ | MPa | 20 |
| Crack Elongation ≥ | % | 250 |
| Dielectric Strength | KV/mm | 10 |
| Working Temperature | °C | -180°C ~ + 260°C |
Dimensions & Specifications
| Length(mm) x Width(mm) | Nominal Thickness(mm) | Tolerance(mm) |
|---|---|---|
| 150 x 150 | 1.0-30 | ±0.30 ~ ±0.50 |
| 250 x 250 | 1.5-30 | ±0.30 ~ ±0.50 |
| 300 x 300 | 1.5-30 | ±0.30 ~ ±0.50 |
| 600 x 600 | 2-30 | ±0.30 ~ ±0.50 |
| 1000 x 1000 | 3-30 | ±0.30 ~ ±0.50 |
| 1000 x 2000 | 5-30 | ±0.30 ~ ±0.50 |
| 2000 x 2000 | 8-30 | ±0.30 ~ ±0.50 |
* Custom sizes and thicknesses are available upon specific request.
Professional Services
- Comprehensive technical consultation.
- Free samples available for quality verification.
- Customized packaging and branding options.
- Full documentation and qualification support.
- Rigorous production inspection and pre-delivery sampling tests.
Frequently Asked Questions
What is the operating temperature range for Skived PTFE Sheets?
The sheets can safely operate in extreme environments ranging from -180°C to +260°C.
Is PTFE resistant to chemicals?
Yes, it is highly drug and corrosion resistant, making it ideal for chemical processing applications.
Can I request a custom size not listed in the table?
Absolutely. We specialize in producing Skived PTFE Sheets in various sizes and thicknesses according to specific customer requirements.
What makes PTFE a good electrical insulator?
PTFE has excellent dielectric strength (10 KV/mm) and is widely recognized as the best electrical insulator among known plastics.
Do you provide samples before bulk orders?
Yes, we provide free samples to help customers confirm material quality and specifications.
How is the product packaged for international transport?
Standard products are packed in secure wooden boxes to prevent damage during shipping.
