Heavy-Duty Seven-Layer High-Speed Paperboard Die-Cutting Machine
Product Description
Basic Information
Product Description
WJ-150-2200-III Seven-Layer Corrugated Production Line
This high-speed production line is certified under ISO: 9001-2008 standards. Designed for efficiency, it handles a maximum paper width of 2200mm with a design speed of 150m/min.
Core Equipment Configuration

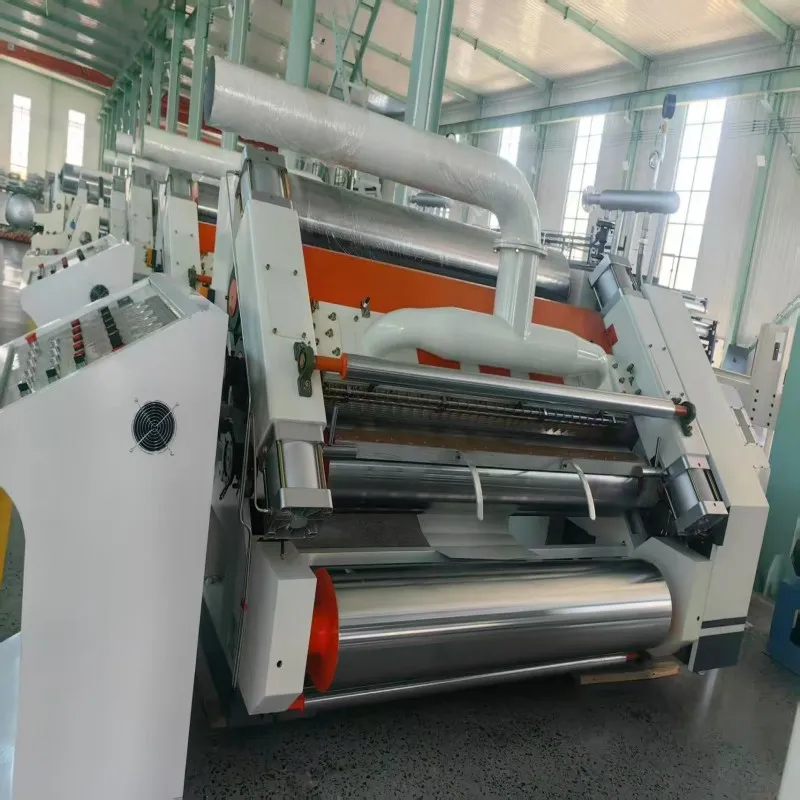

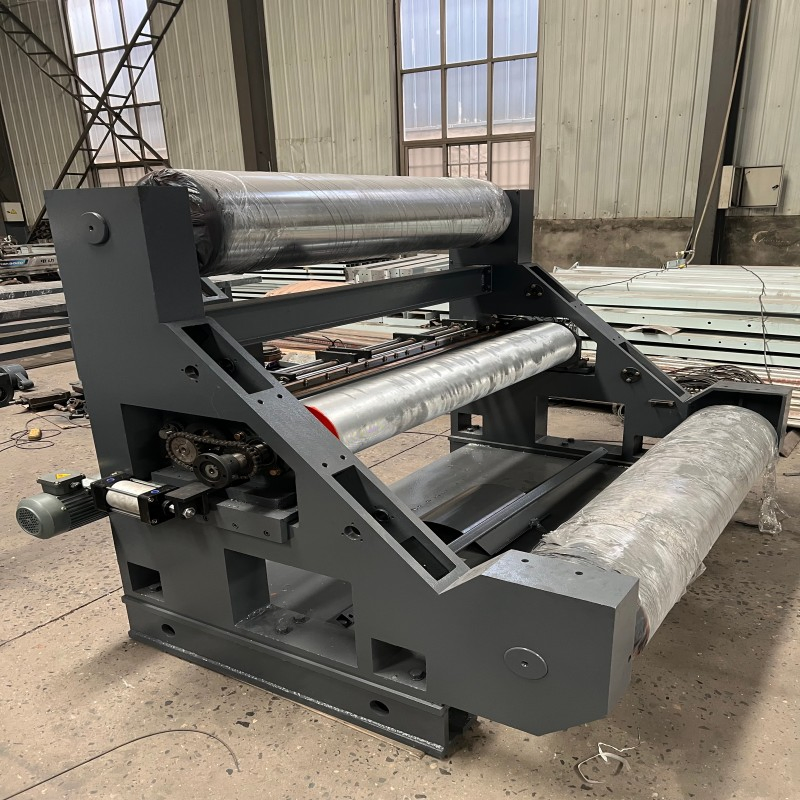

- Wet End: ZJ-V5B Fully hydraulic shaftless paper racks (7 sets), JZJ automatic paper splicers, and SF-320C adsorption type single-sided machines.

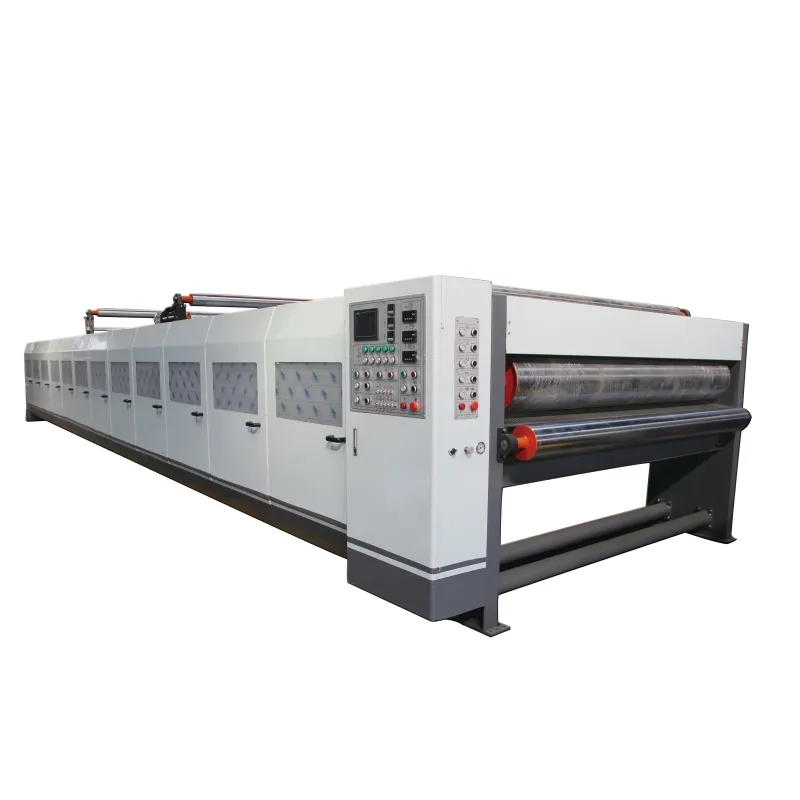

- Dry End: RG-4-900 quadruple preheater, GM-20 glue coating machine, SM-F double-sided machine, and NC-150 computer spiral knife cross-cutting machine.
- Stacking: DLM-LM computer gantry stacking machine with servo control for lifting and automatic counting.
- Auxiliary: ZJZ glue station system and independent unit steam supply for segmented temperature control.
Detailed Photos
Product Parameters
| Model | Name | QTY | Key Specifications |
|---|---|---|---|

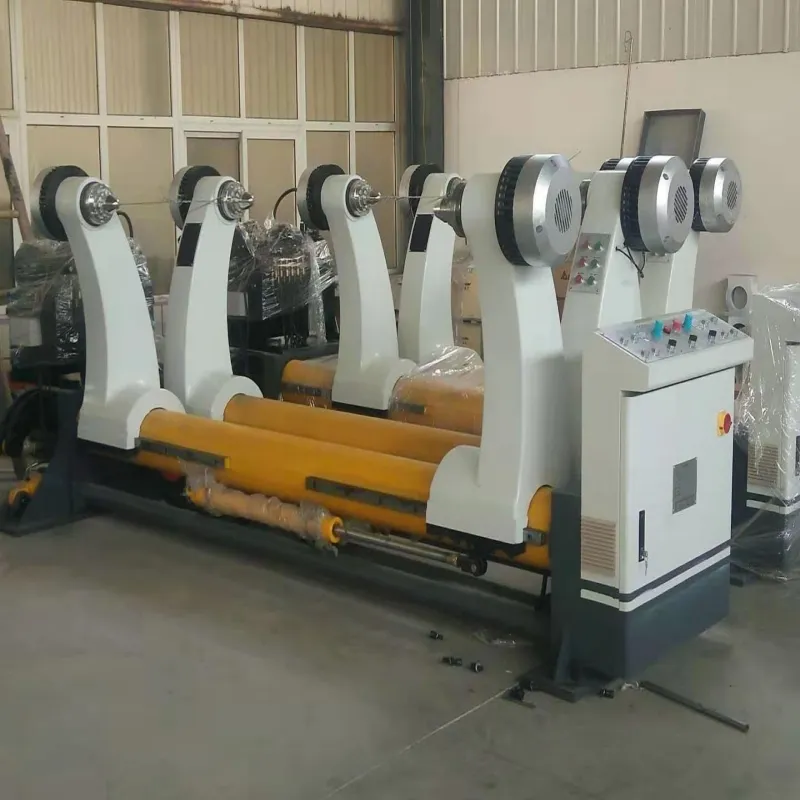

| ZJ-V5B | Hydraulic shaftless mill roll stand | 7 | Spindle ¢ 240mm, hyperbolic heavy rocker, multi-point brake. |
| JZJ | Automatic splicer | 7 | Keep assembly line uninterrupted, max speed 150m/min. |

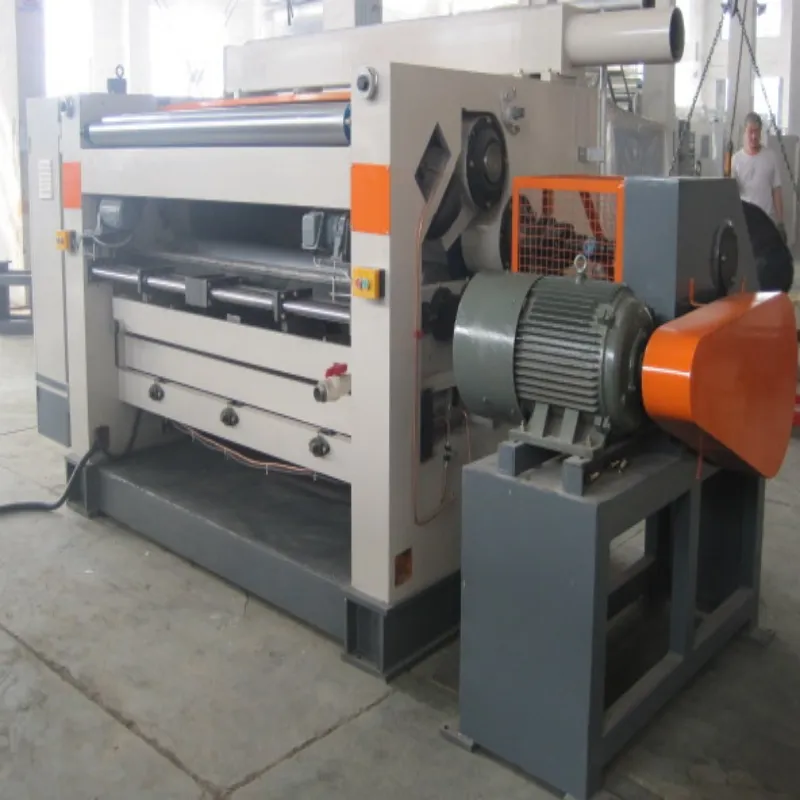

| SF-320C | Single facer (Fingerless) | 3 | Corrugated roller ¢320mm, 48CrMo alloy steel, PLC glue control. |
| NC-150 | Computer spiral knife crosscutter | 1 | Full AC servo control, helical knife structure, ±1mm accuracy. |
| DM-LM | Gantry stacker | 1 | Servo drive platform, automatic point stacking, high-strength belt. |
| DQ | Electric control systems | 1 | Delta variable frequency control system. |
Core Advantages
Shortest order change time of only 3-8 seconds.
Servo motor + PLC system ensures ±1mm cutting accuracy.
Energy storage braking saves significantly more electricity.
Frequently Asked Questions
The WJ-150-2200-III production line supports a maximum paperboard width of 2200mm.
Yes, this versatile production line is designed to manufacture 3-layer, 5-layer, and 7-layer corrugated cardboard.
The design speed is 150 meters per minute, with actual working speeds varying based on the number of layers (80-130m/min).
The system utilizes high-precision servo motors and PLC control to achieve a cutting accuracy of ±1mm.
The system requires AC380V 50Hz 3PH power, with an installed capacity of approximately 220KW.
The corrugated rollers are made of high-quality 48CrMo alloy steel for enhanced durability and performance.
