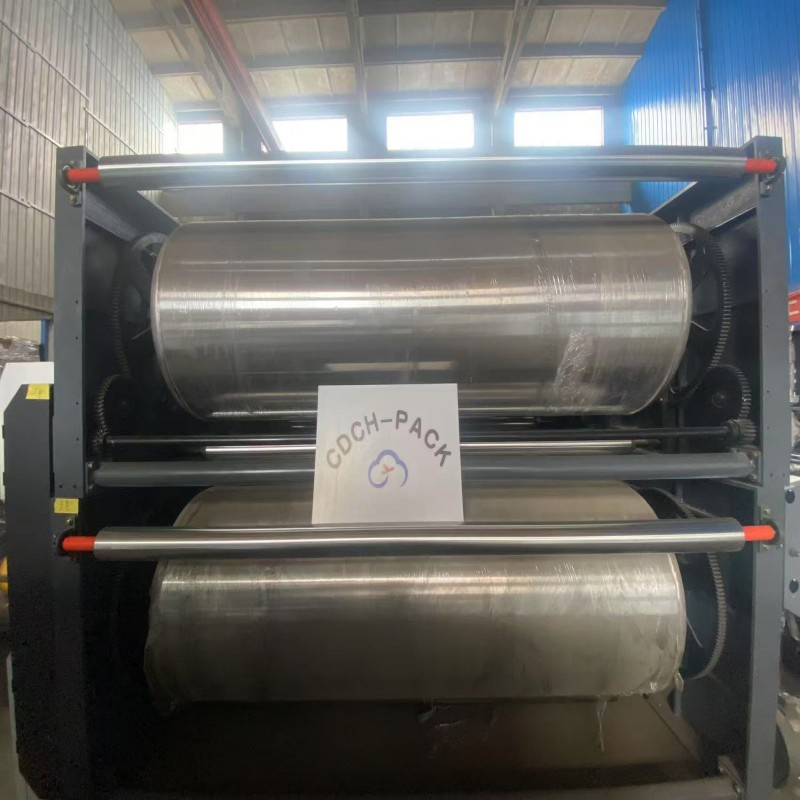

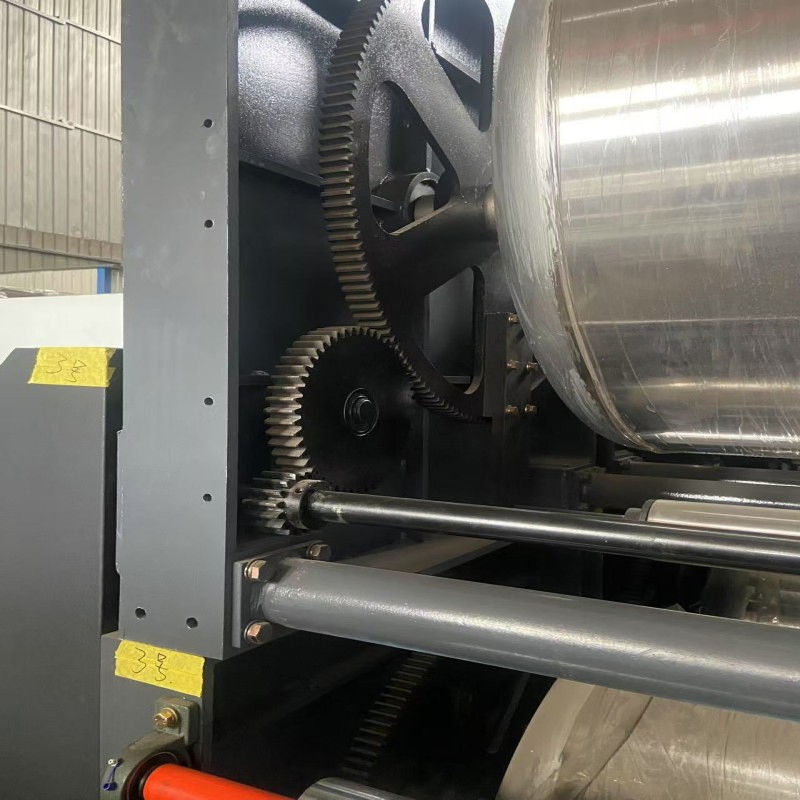

High-Speed Heavy-Duty Five-Layer Corrugated Board Die-Cutting Machine
Product Description

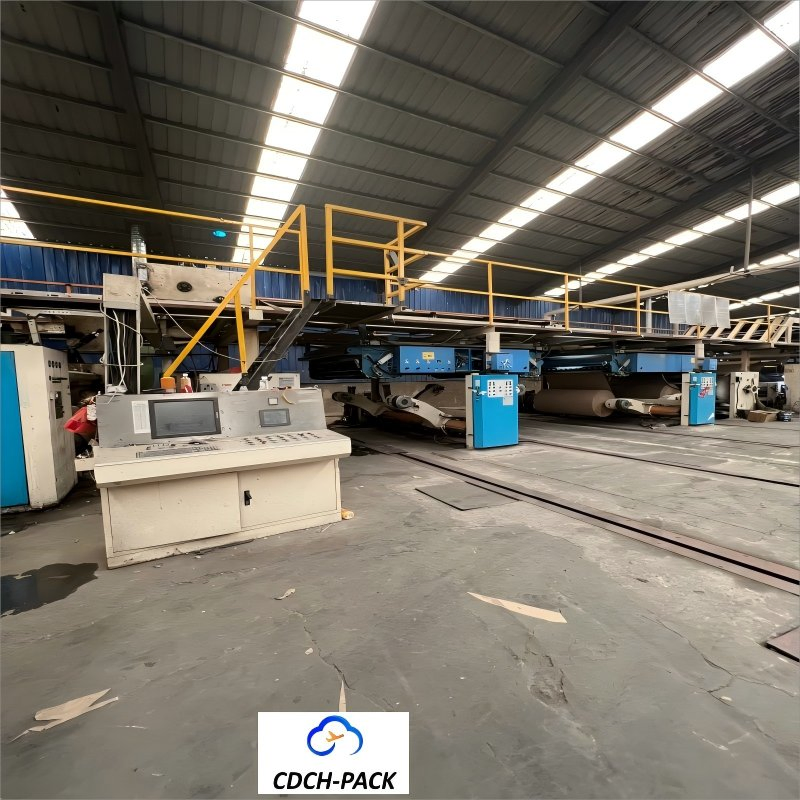

WJ-150-2200-III Seven-Layer Corrugated Cardboard Production Line
This advanced production line is certified under ISO: 9001-2008 quality management standards, designed for high-efficiency and high-precision cardboard manufacturing.
Technical Paper Standards:
- Surface Paper: 100-180g/m², Ring pressure ≥8N·m/g, Moisture 8-10%
- Core Paper: 80-160g/m², Ring pressure ≥5.5N·m/g, Moisture 8-10%
- Inner Paper: 90-160g/m², Ring pressure ≥6N·m/g, Moisture 8-10%

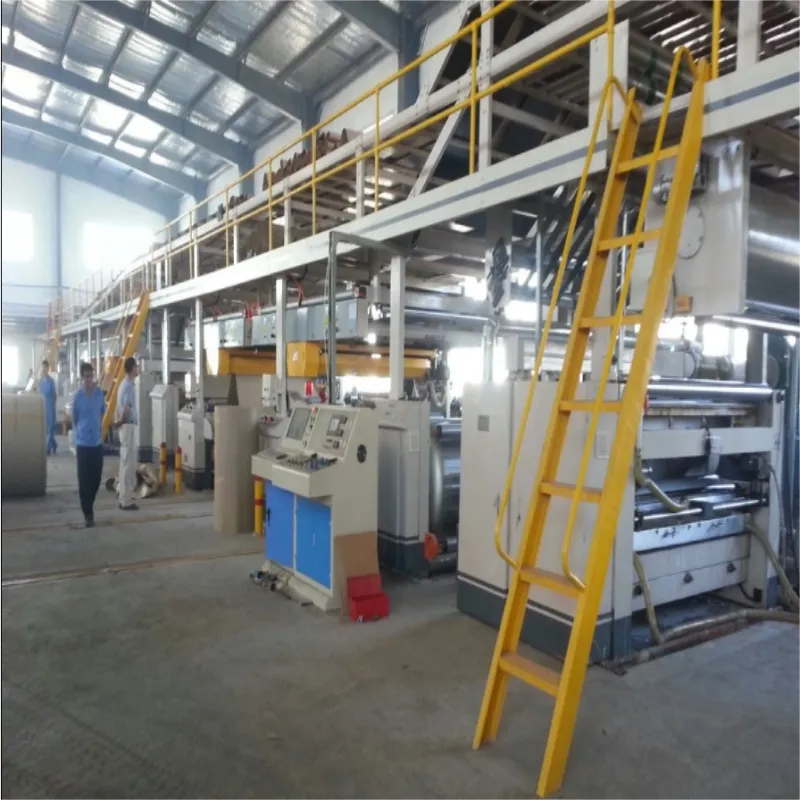

Wet End Equipment

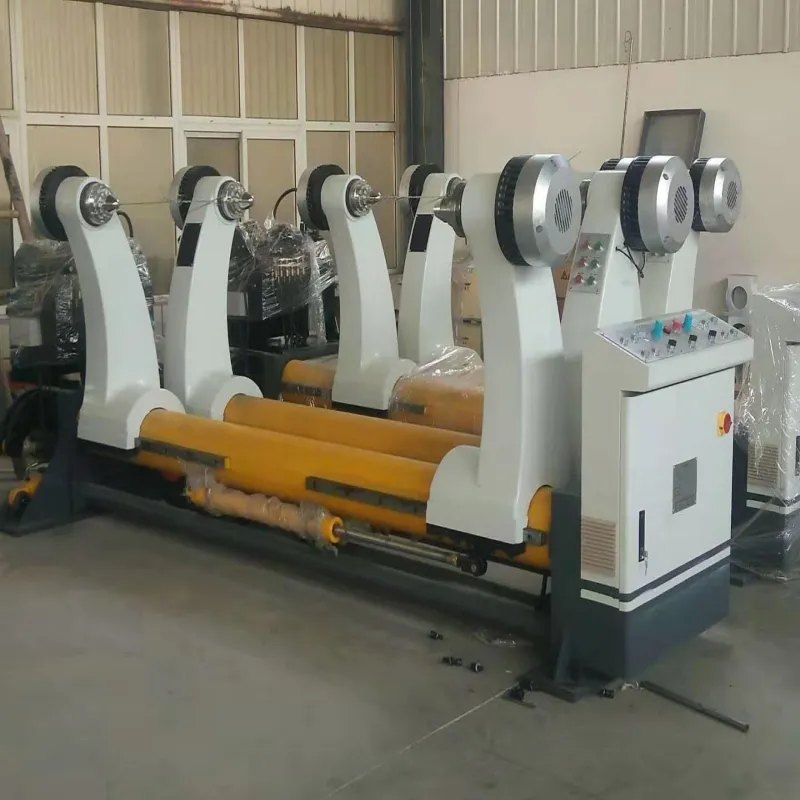

ZJ-V5B Hydraulic Shaftless Paper Rack (7 sets): Full hydraulic drive for clamping, loosening, and centering. Features multi-point brake system and double-sided loading trolleys.
JZJ Automatic Paper Splicer (7 sets): PLC controlled, no-paper-tail splicing at speeds up to 250m/min. Splicing accuracy ensures continuous operation.

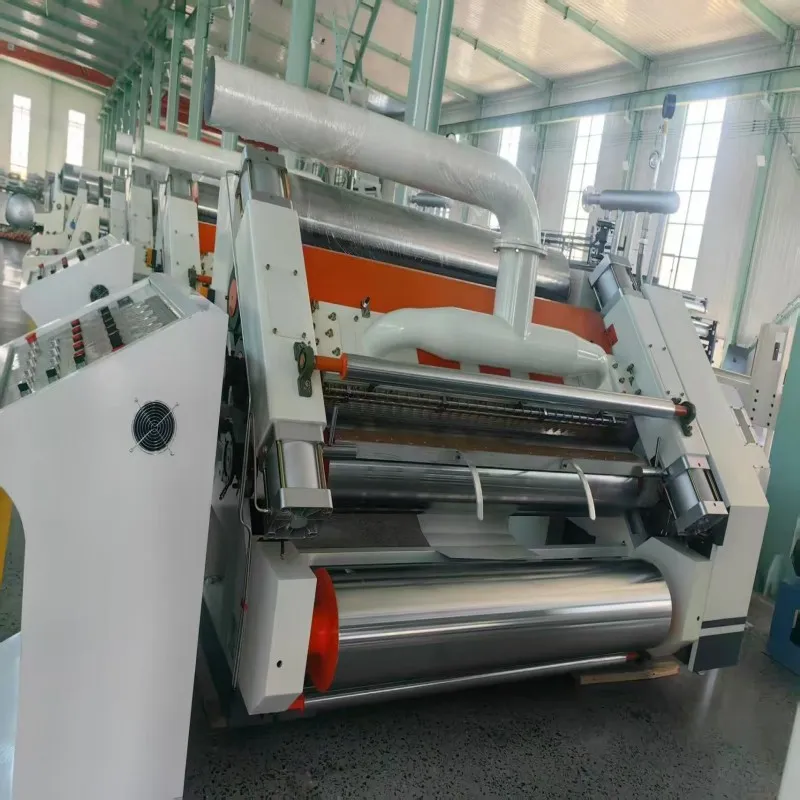

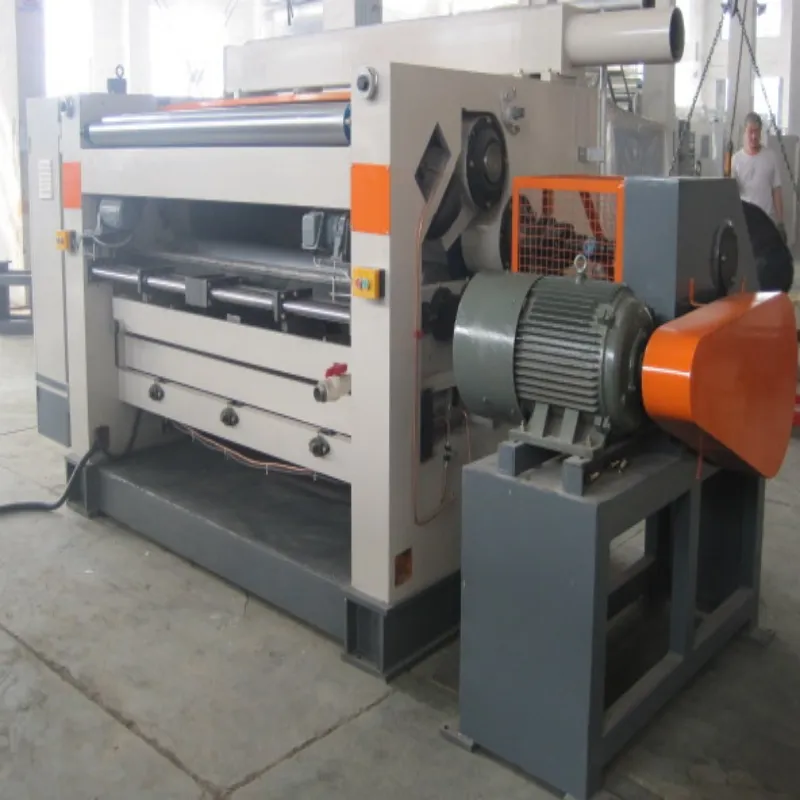

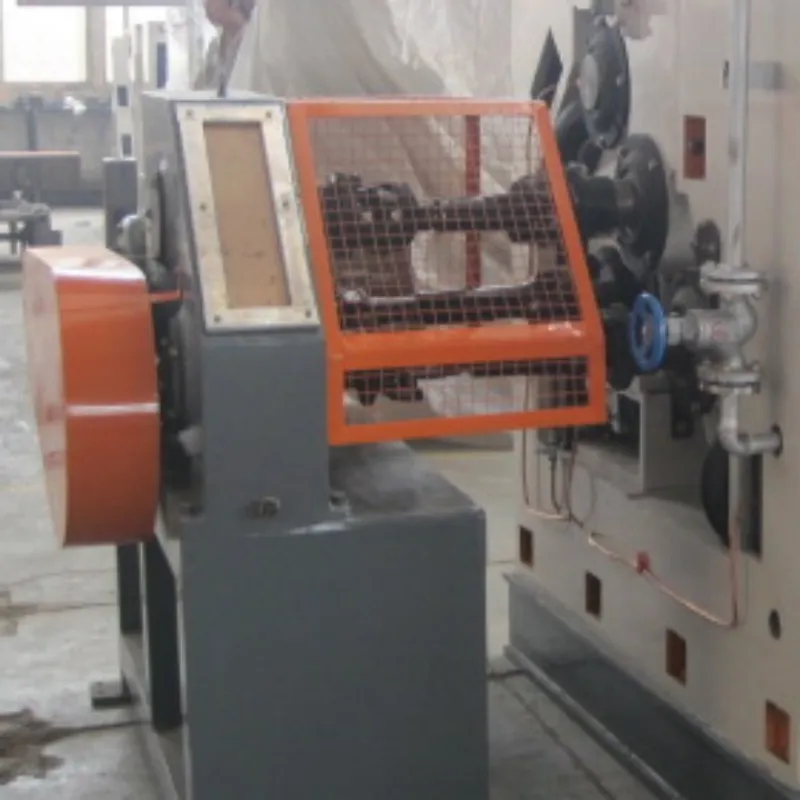

SF-320C Adsorption Single-Sided Machine (3 sets): 48CrMo alloy steel corrugated rollers (¢320mm) with modular group hanging change and PLC automatic glue control.
Dry End Equipment

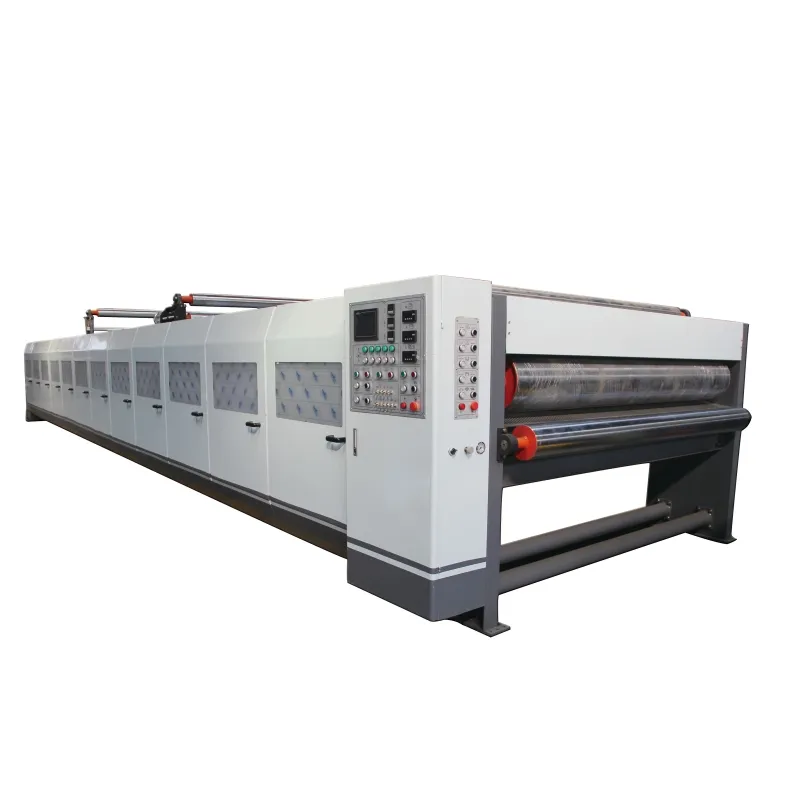

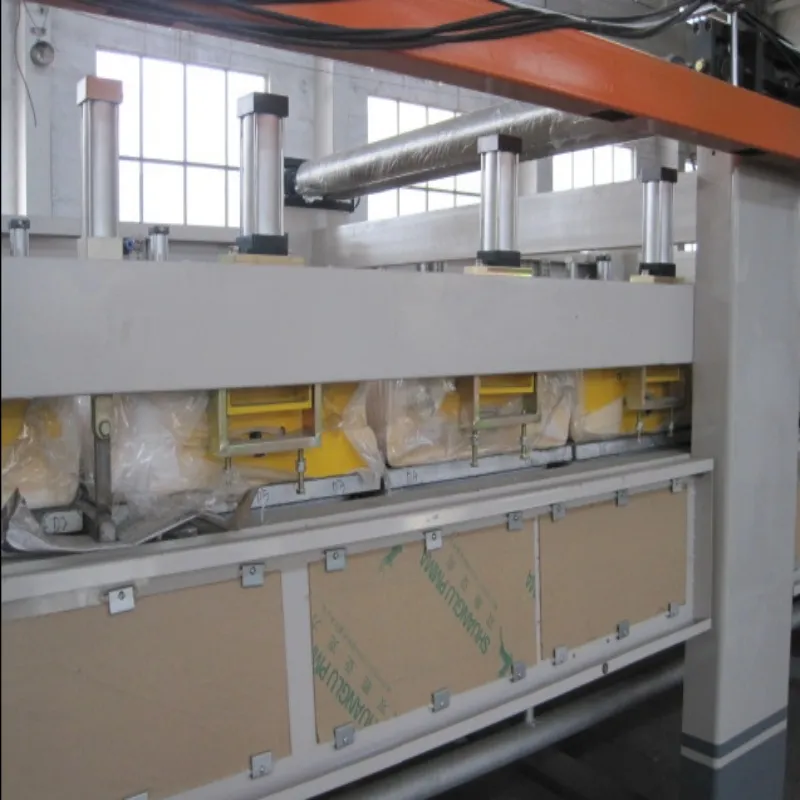

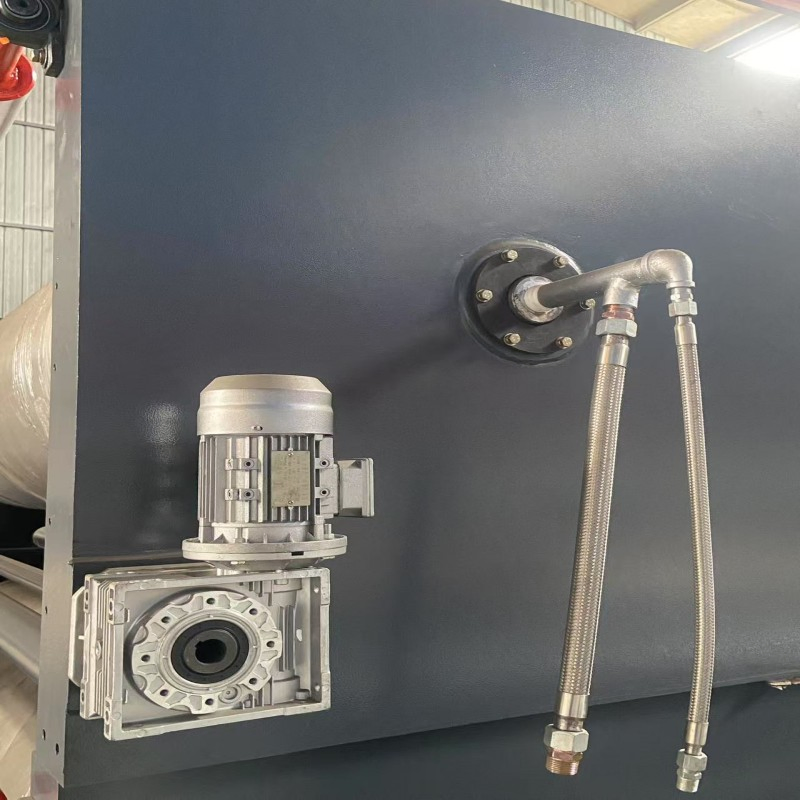

SM-F Double-Sided Machine: 16 pieces of 600mm chrome-plated hot plates with S-shaped steam channels for optimal heat distribution.

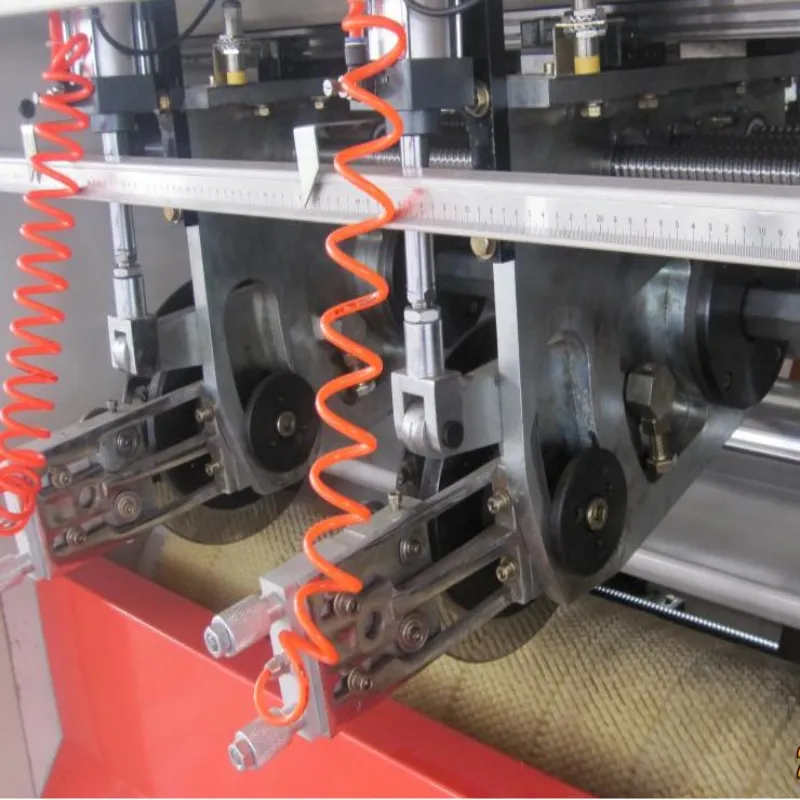

Computer Thin Blade Slitting Machine: 6 blades, 10 lines, tungsten steel alloy blades with a lifespan exceeding 8 million meters. Servo motor knife arrangement.
NC-150 Computer Spiral Knife Cross-Cutting Machine: Energy storage brake and spiral blade structure driven by servo motors for ±1mm accuracy.

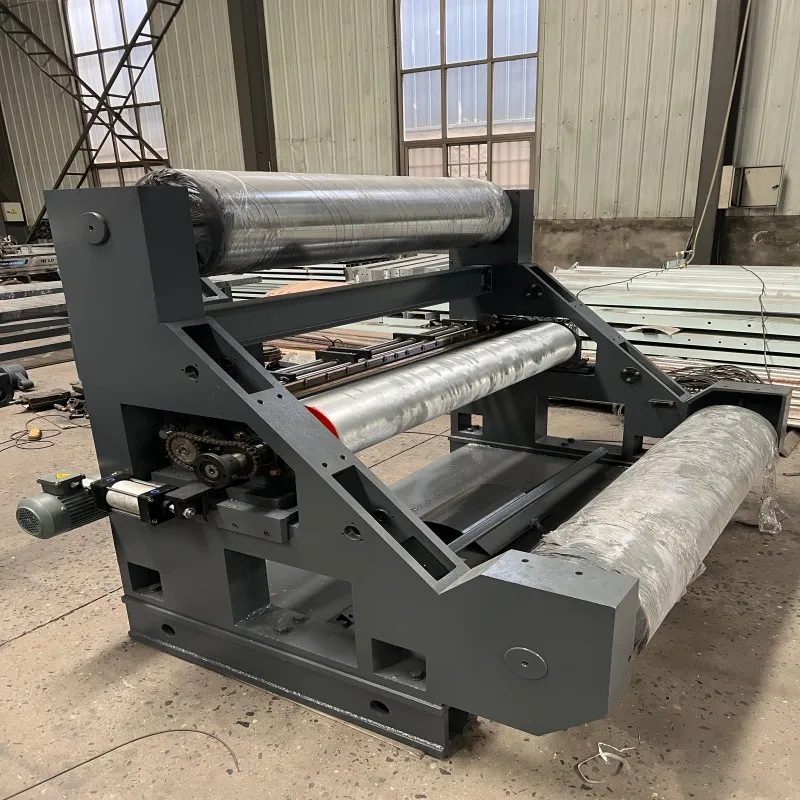

| Model | Name | QTY | Technical Remarks |
|---|---|---|---|
| ZJ-V5B | Hydraulic shaftless mill roll stand | 7 | Spindle ¢240mm, hyperbolic heavy rocker, hydraulic drive lifting. |
| JZJ | Automatic splicer | 7 | Max speed 150m/min, reduces paper consumption. |
| SF-320C | Fingerless single facer | 3 | Main roller ¢320mm, 48CrMo alloy steel, PLC auto glue control. |
| GM-20 | Double glue machine | 1 | Roller 269mm, independent variable frequency motor drive. |
| NC-150 | Computerized spiral knife | 1 | Full AC servo control, helical knife structure, 10.4-inch touch screen. |
| DM-LM | Gantry stacker | 1 | Servo drive platform lifting, automatic point stacking output. |
⚠️ Self-contained Parts (Customer Provided)
- Steam boiler (4000Kg/Hr, 1.25MPa) and pipelines.
- Air compressor and air/glue conveying pipes.
- Power supply wires and connection to operation panels.
- Water source, foundations, and civil construction.
- Raw materials for testing (paper, starch, caustic soda, borax).
Efficient Production
Design speed of 150m/min with order change times as low as 3 seconds.
Precise Control
Full automation via Servo motor + PLC system ensures ±1mm cutting accuracy.
Energy Saving
Energy storage braking and segmented steam systems save up to 70% electricity.
Quality Assurance
48CrMo alloy rollers and pressure vessel-certified hot plates ensure board strength.
