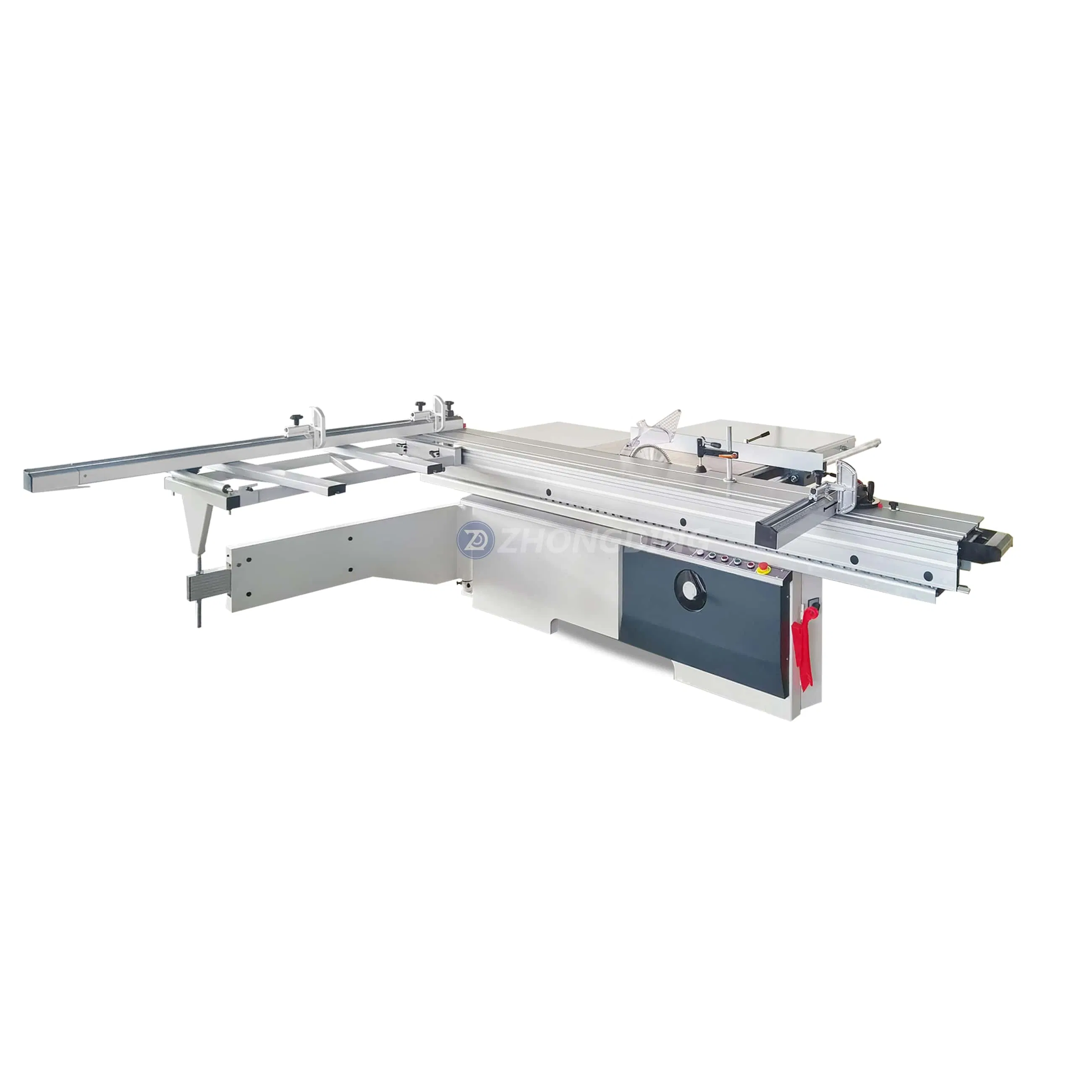

Heavy-Duty Wood Cutting Saw Machine for Large Boards
Product Description
Basic Info
| Model NO. | ZDV8D |
| Power Type | Electric |
| Layout | Horizontal |
| Controlling Mode | Artificial |
| Automatic Grade | Semiautomatic |
| Precision | High Precision |
| Certification | CE, ISO |
| Condition | New |
| After-sales Service | Online Services and Video Services |
| Target Audience | Wood Working Population, Wholesaler and Retailer |
| Specification | 3250*3150*900mm |
Product Description

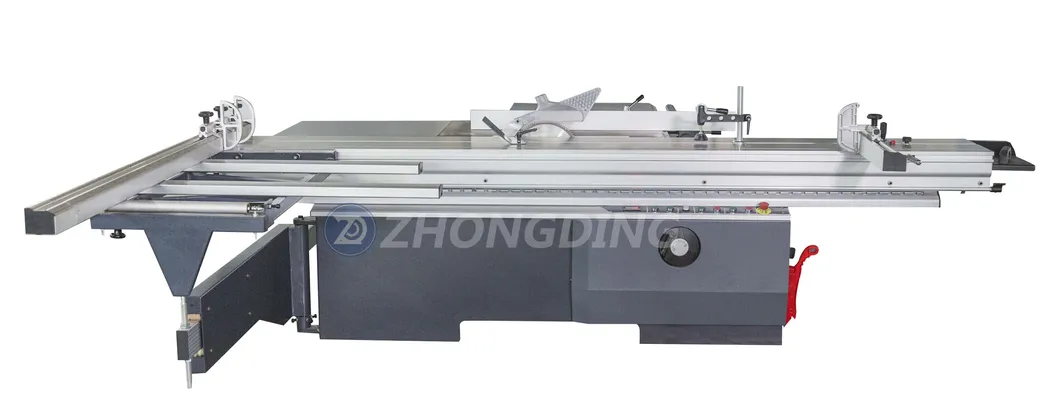

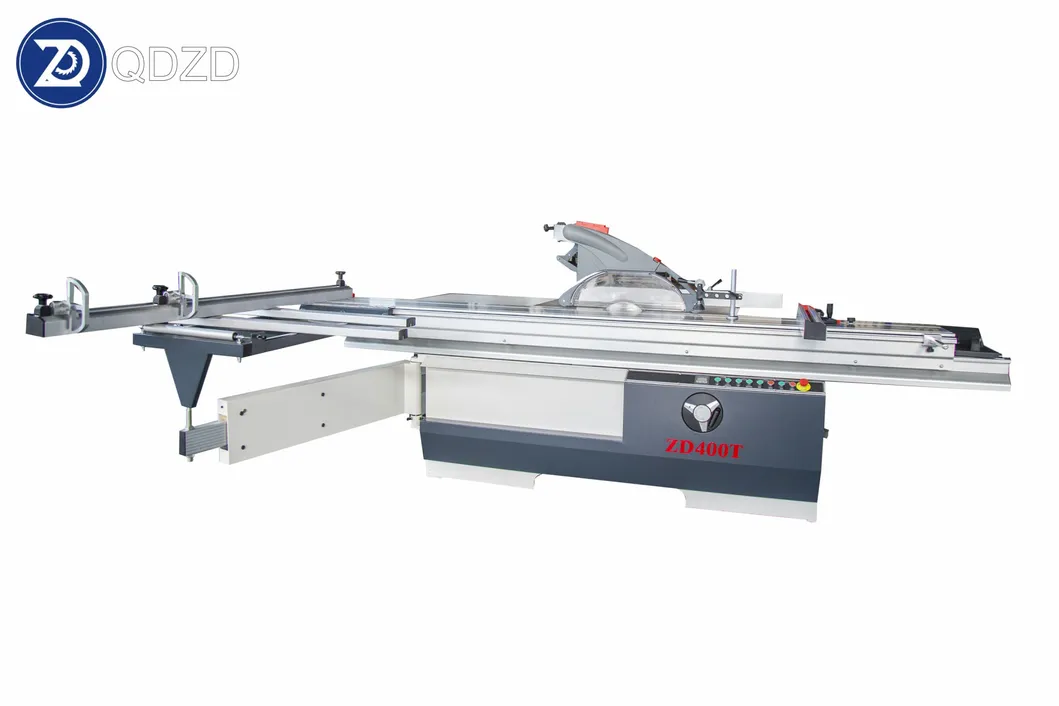

High Precision Sliding Table Saw Electronic Panel Saw Wood Cutting Machine Cutter Machine
This sliding table saw is completely competitive. We use the Odento structure to improve machine quality. The fuselage uses the national standard widening 6mm steel laser cutting, the corner at the end of the whole plate bending treatment, reducing welding, resulting in a solid and beautiful finish without burrs.
Product Parameters
| Dimension of sliding table | 3200x388/395 mm |
| Gross cut capacity | 3200 mm |
| Width of cut (saw blade to rip fence) | 1250 mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 350 mm |
| Max cutting height 90°/45° | 80 mm / 55mm |
| Speed of main saw spindle | 4000/6000 r.p.m |
| Main saw motor power | 5.5 kw |
| Diameter of scoring saw blade | 120 mm |
| Scoring saw motor power | 1.1 kw |
| Overall dimension | 3250x3150x900 mm |

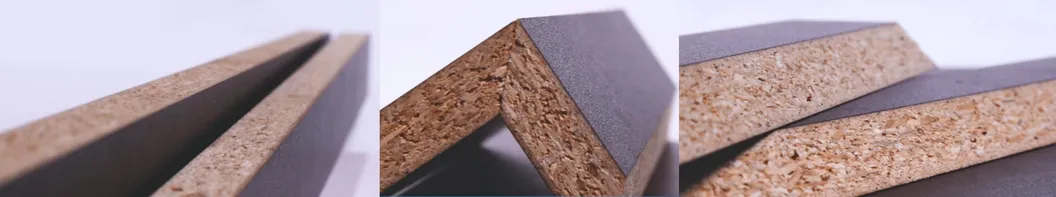

Product Effect
With our machines, we can make high quality products.

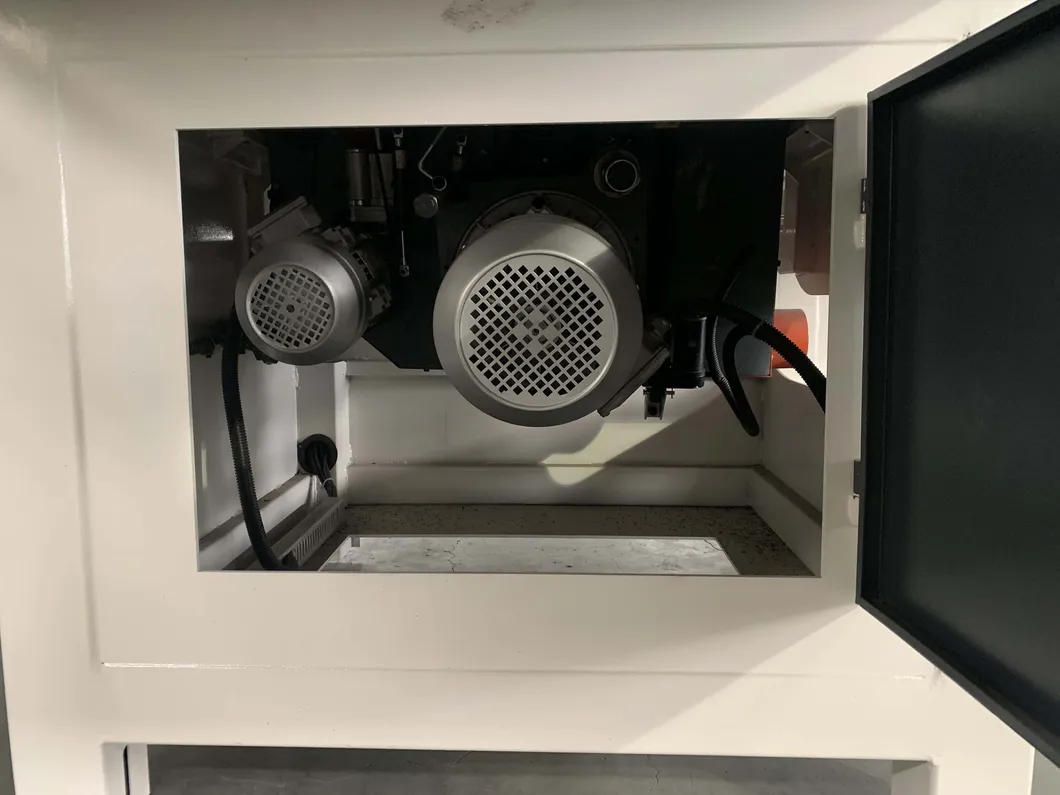

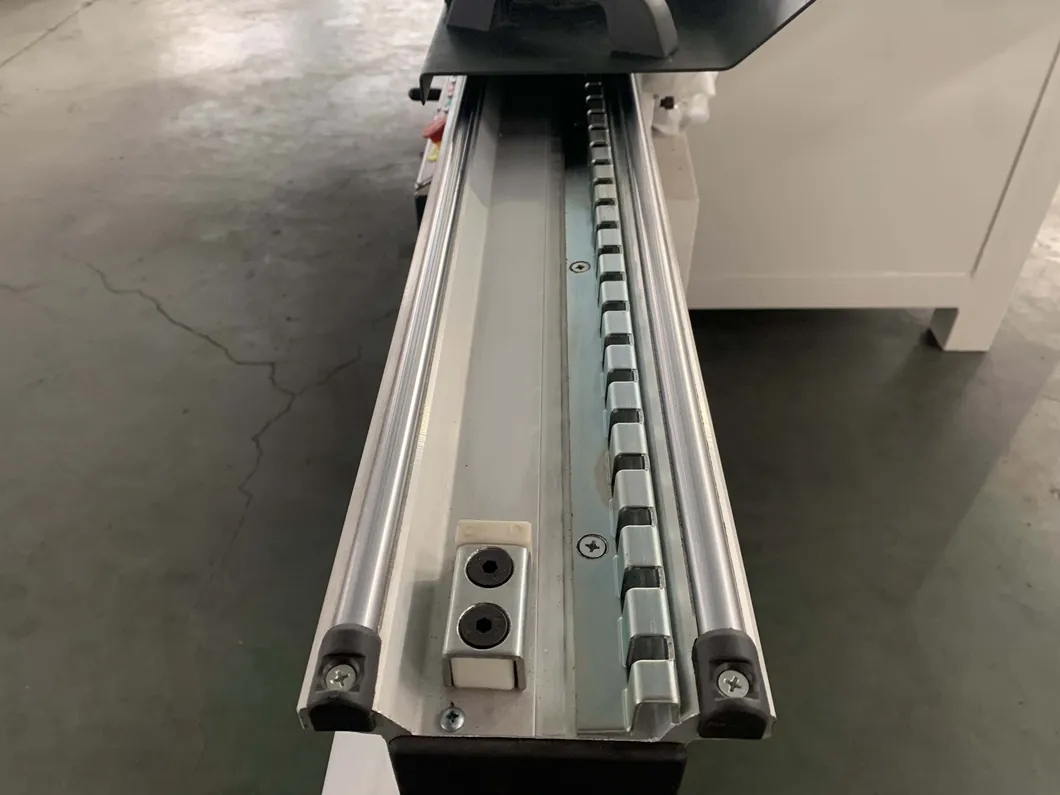

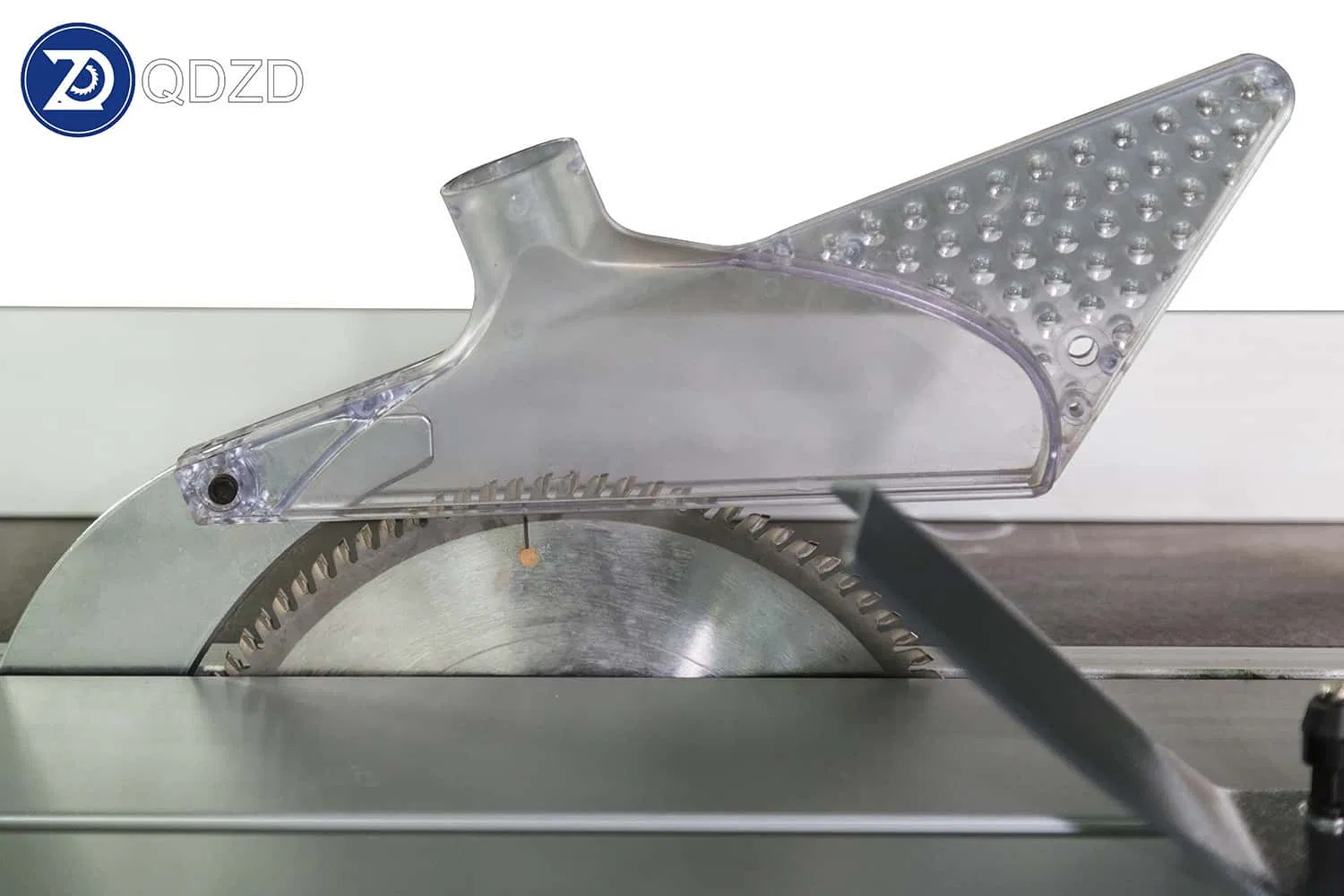

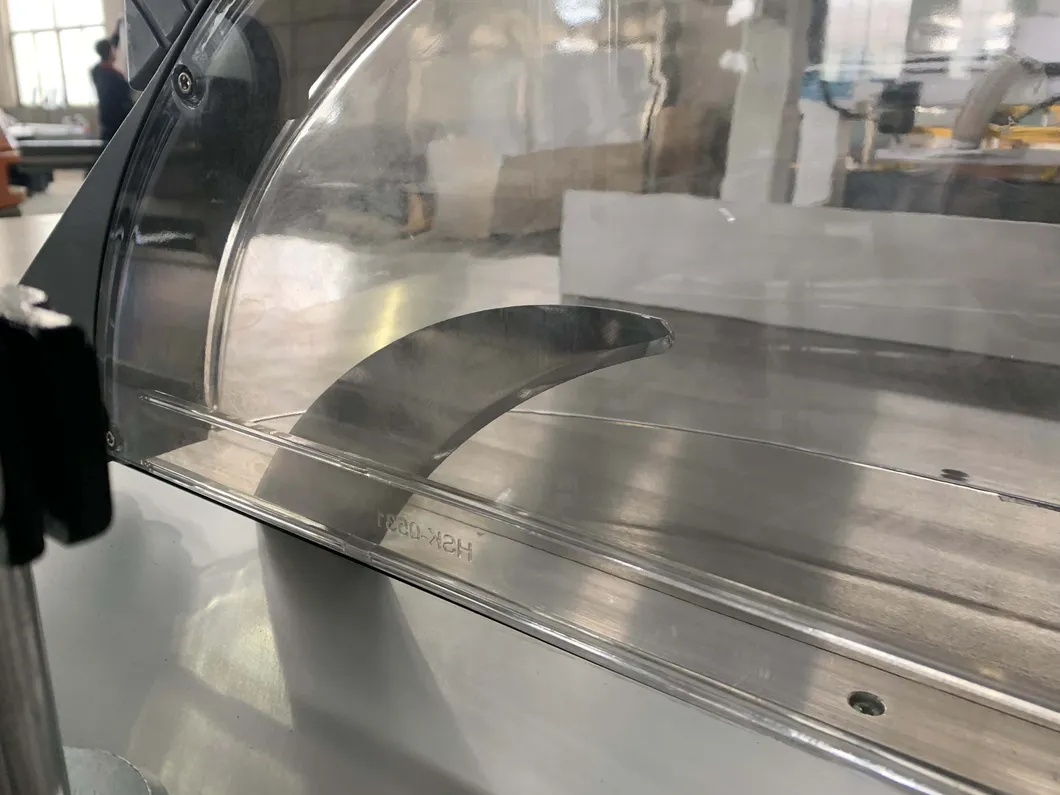

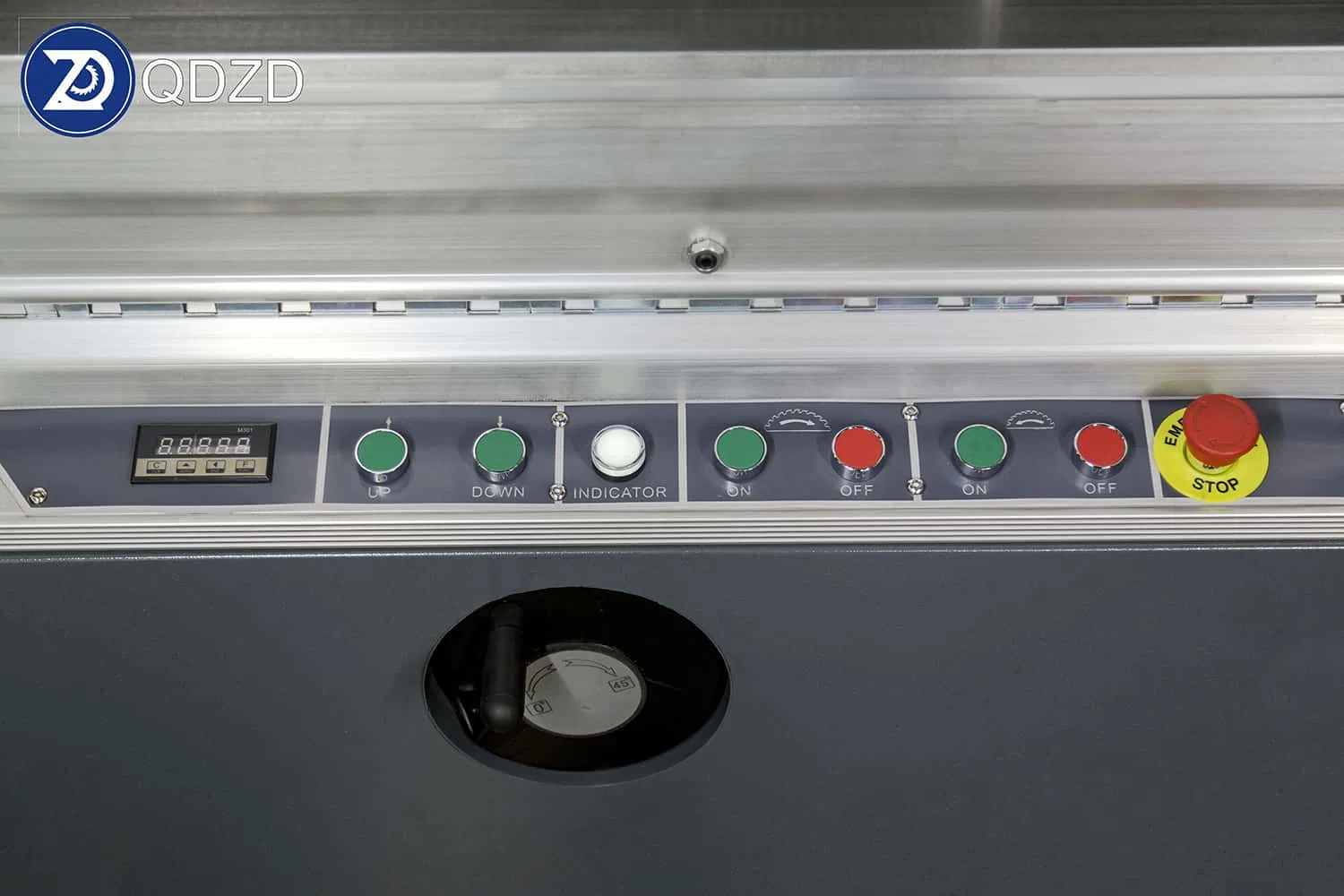

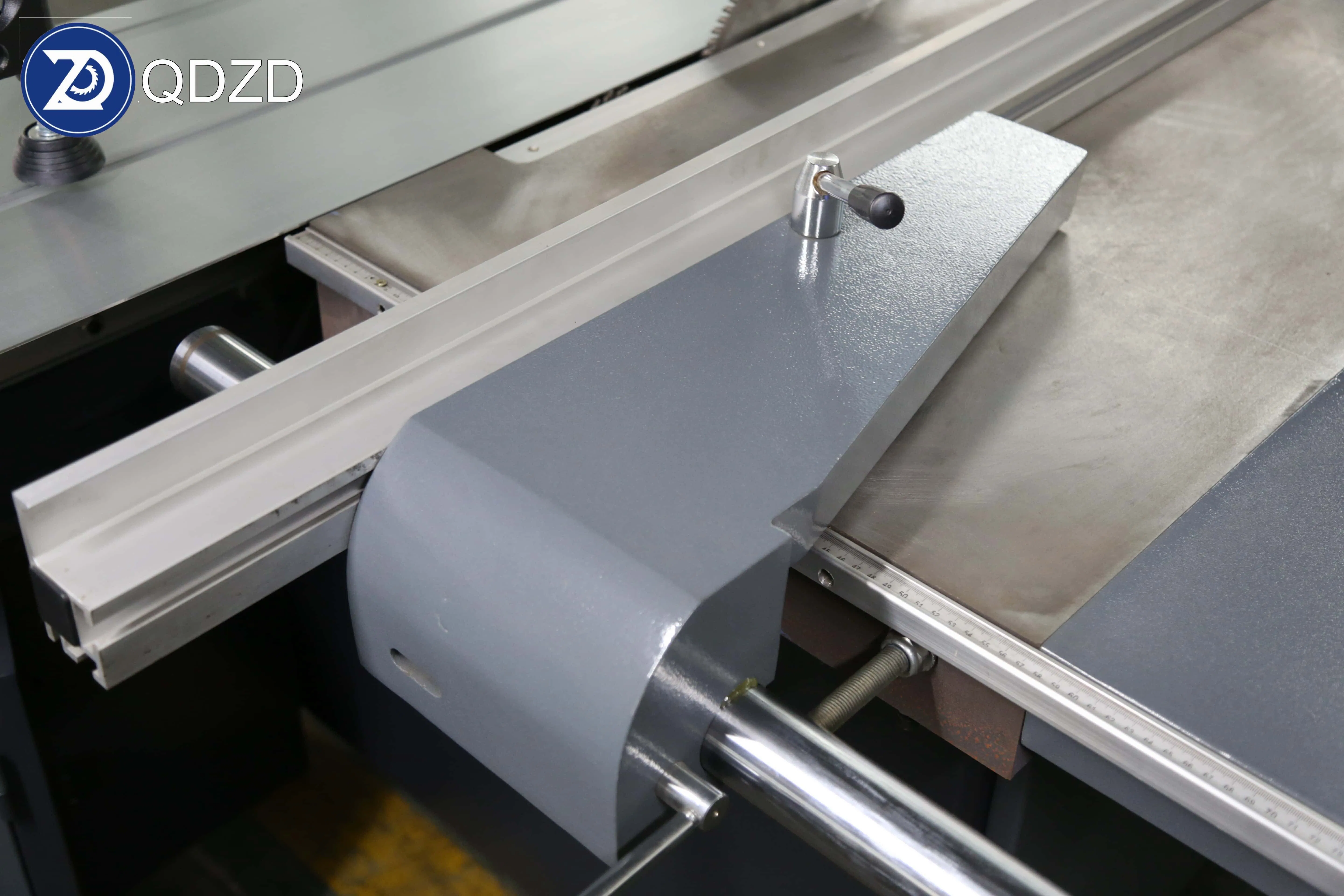

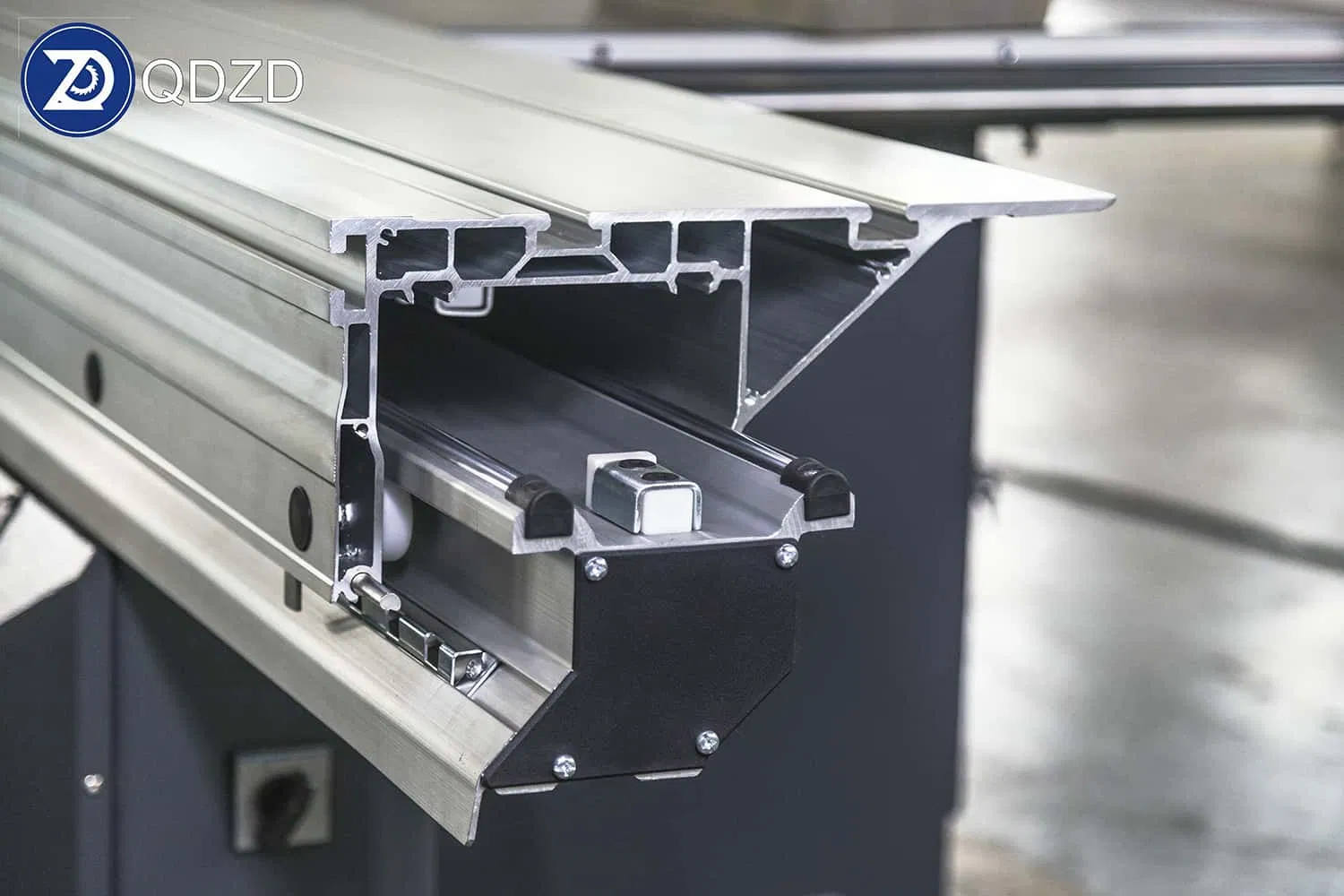

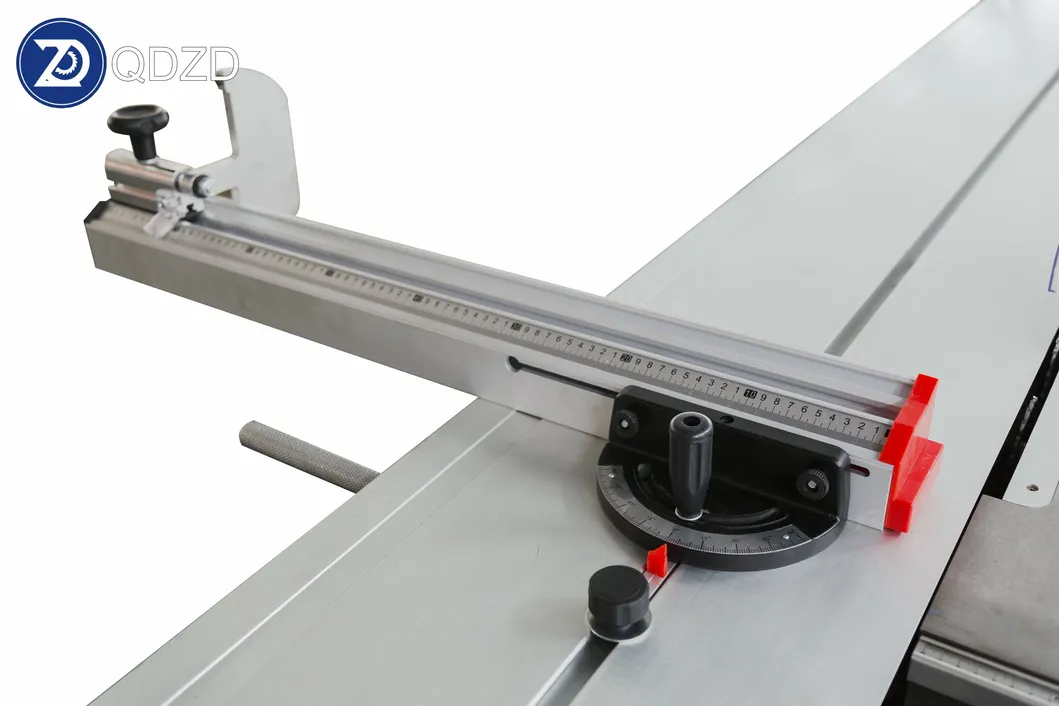

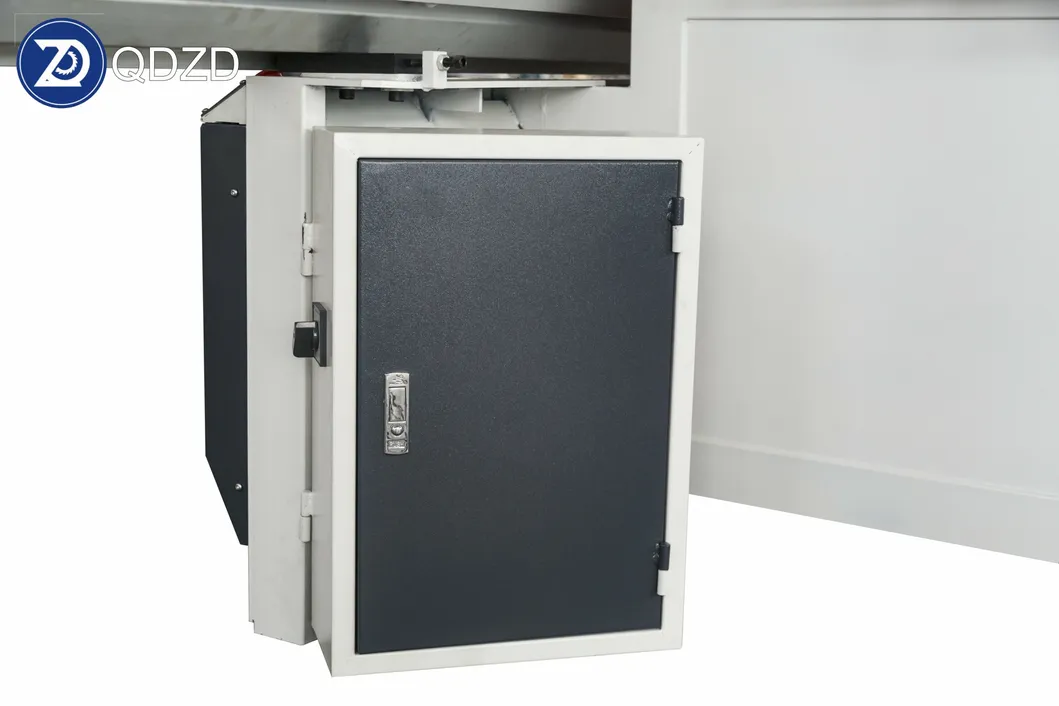

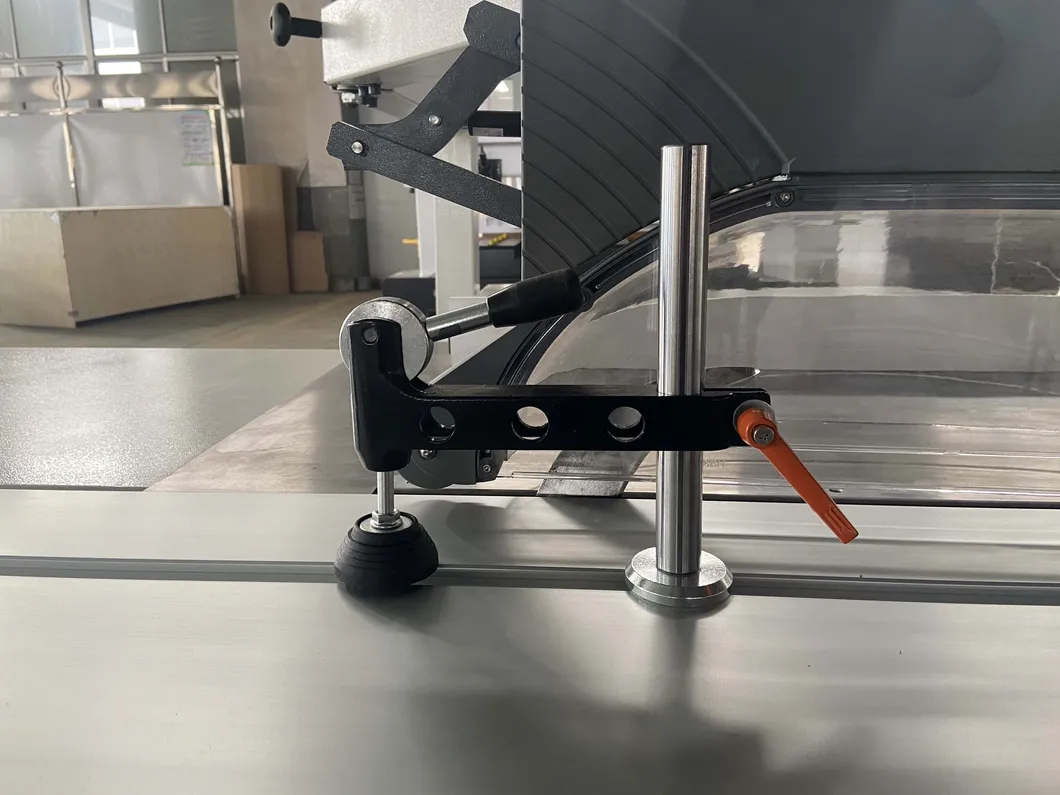

Detailed Photos & Accessories
Key Advantages
- Cast iron table flatness less than 0.3mm.
- Perpendicularity between the ruler and the table is less than 0.2mm.
- Depth of parallelism between the ruler and workbench is 0.6m, friction smooth without resistance.
- Altitude difference between moving table and fixed table is 0.5mm.
- Optional upgrade parts available for specialized requirements.

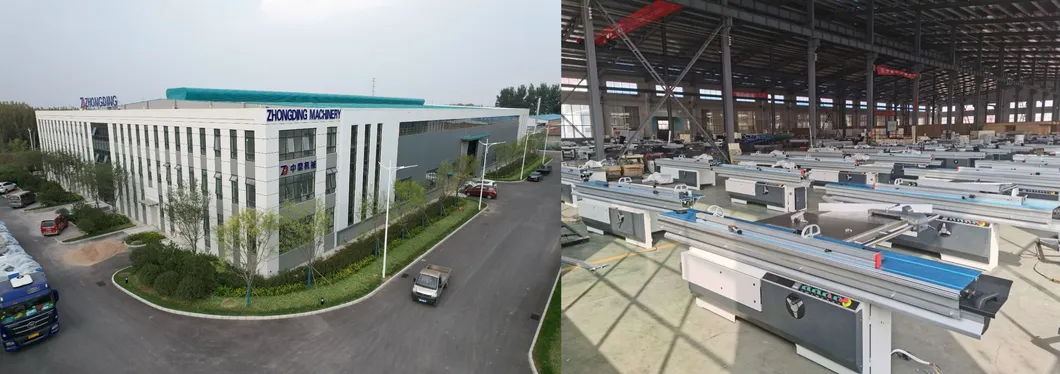

Company Profile
A leading company specializing in manufacturing and exporting woodworking machines for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts, and technical advice.
Packaging & Shipping
Standard Plywood Cases for International Export.

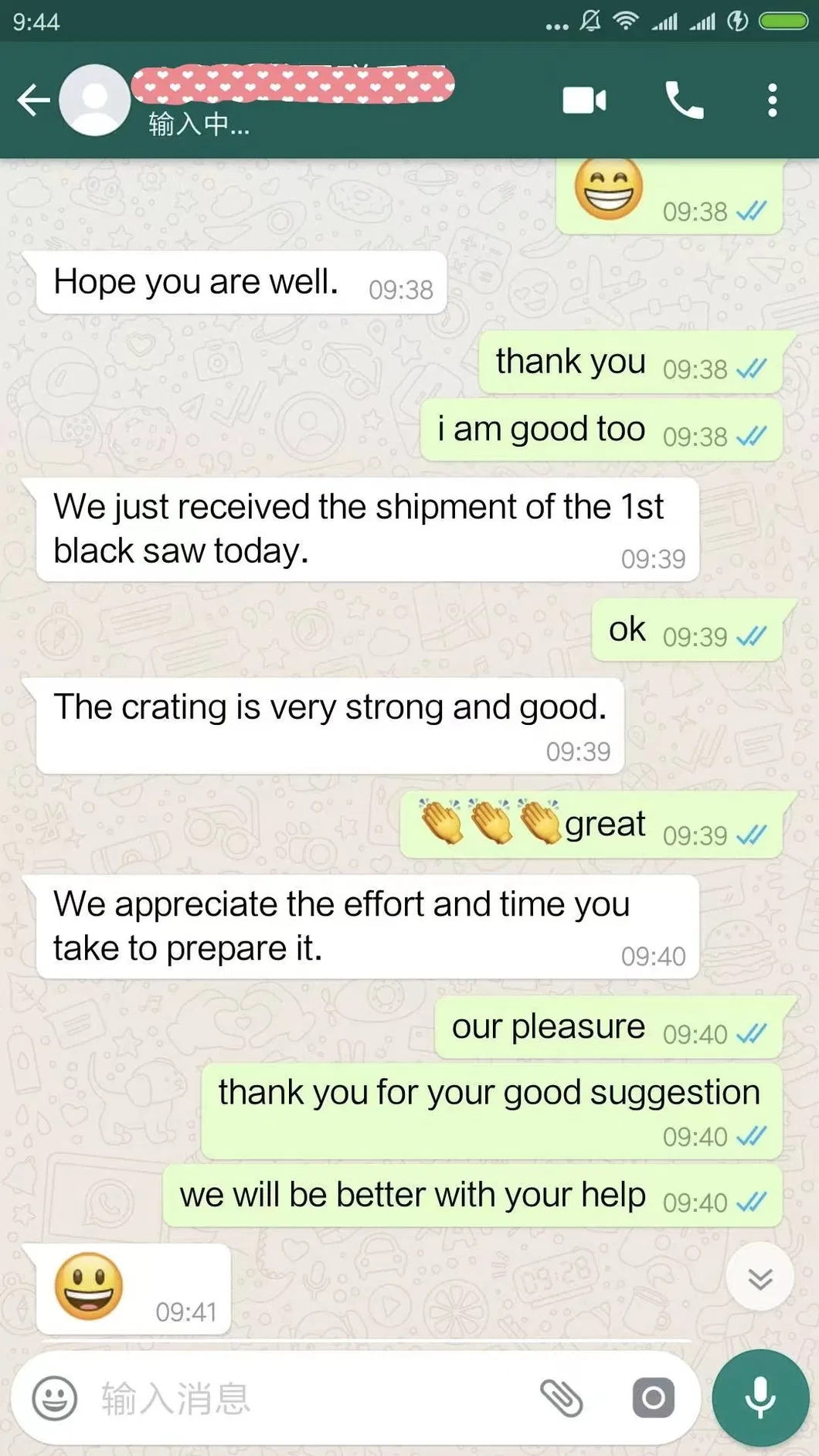

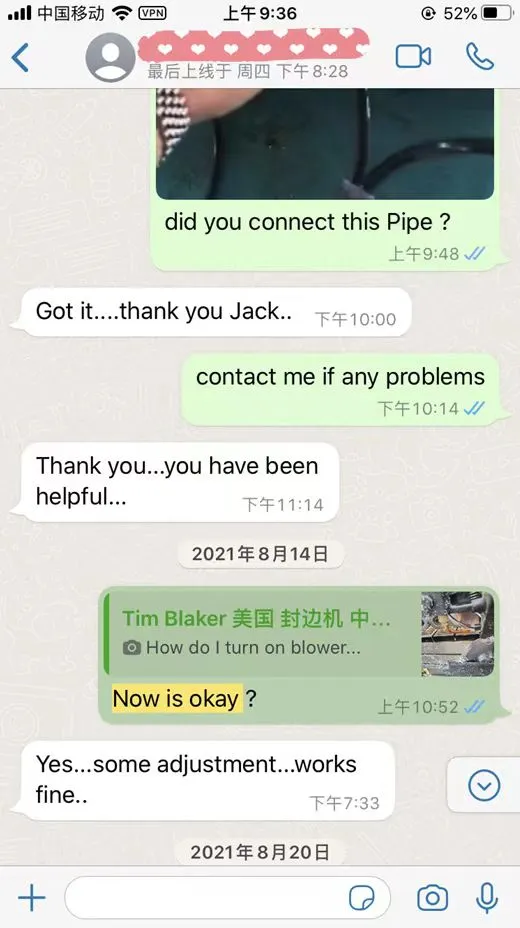

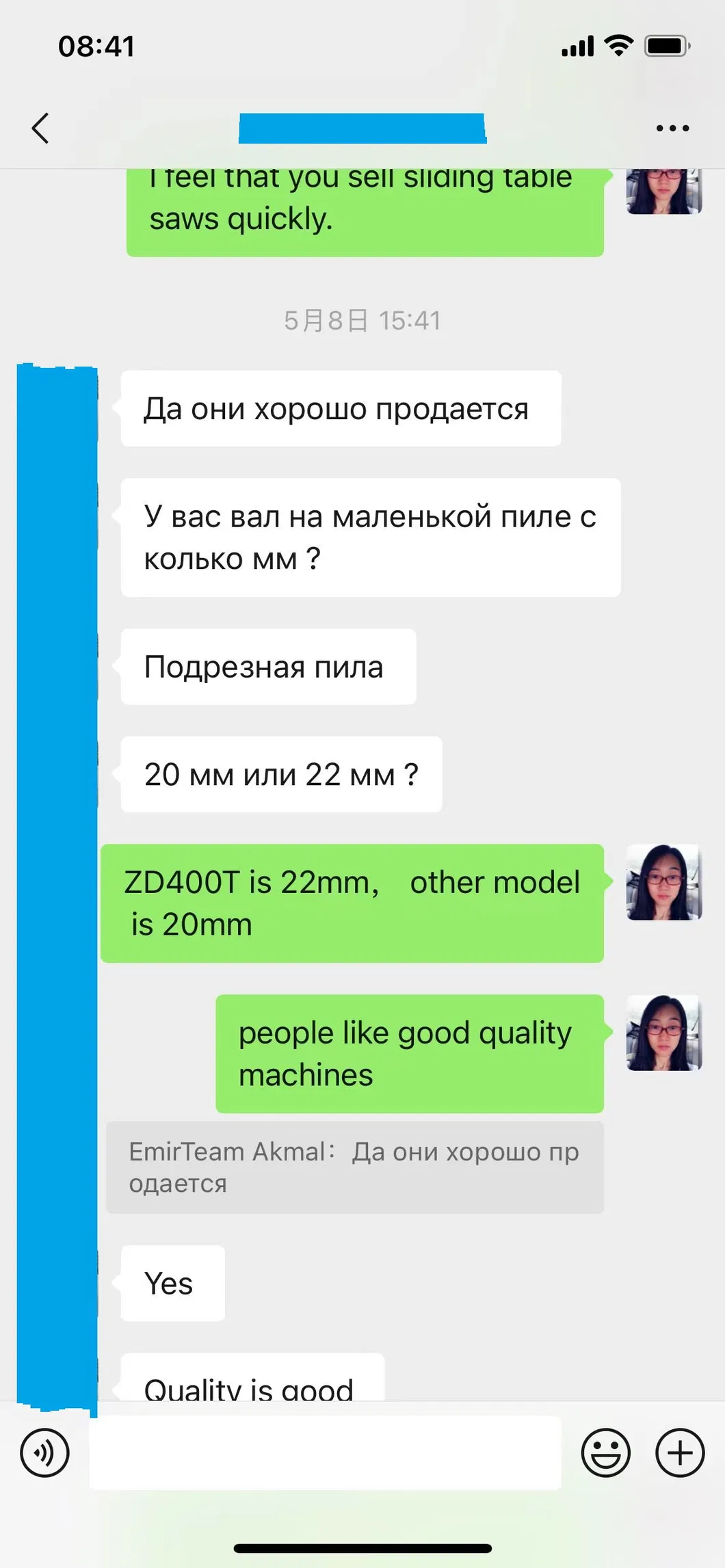

After Sales Service
Relative Products

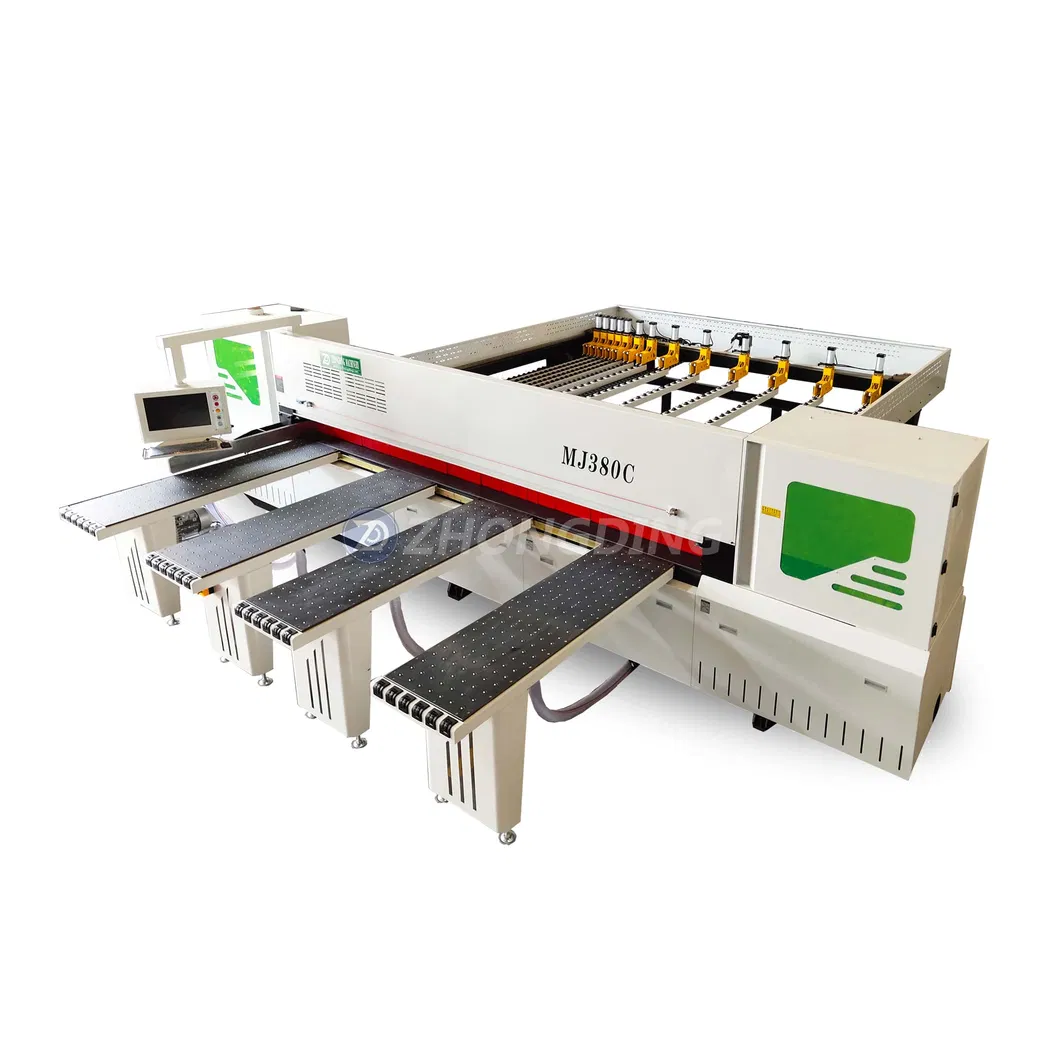

CNC Beam Saw
Sliding Table Saw

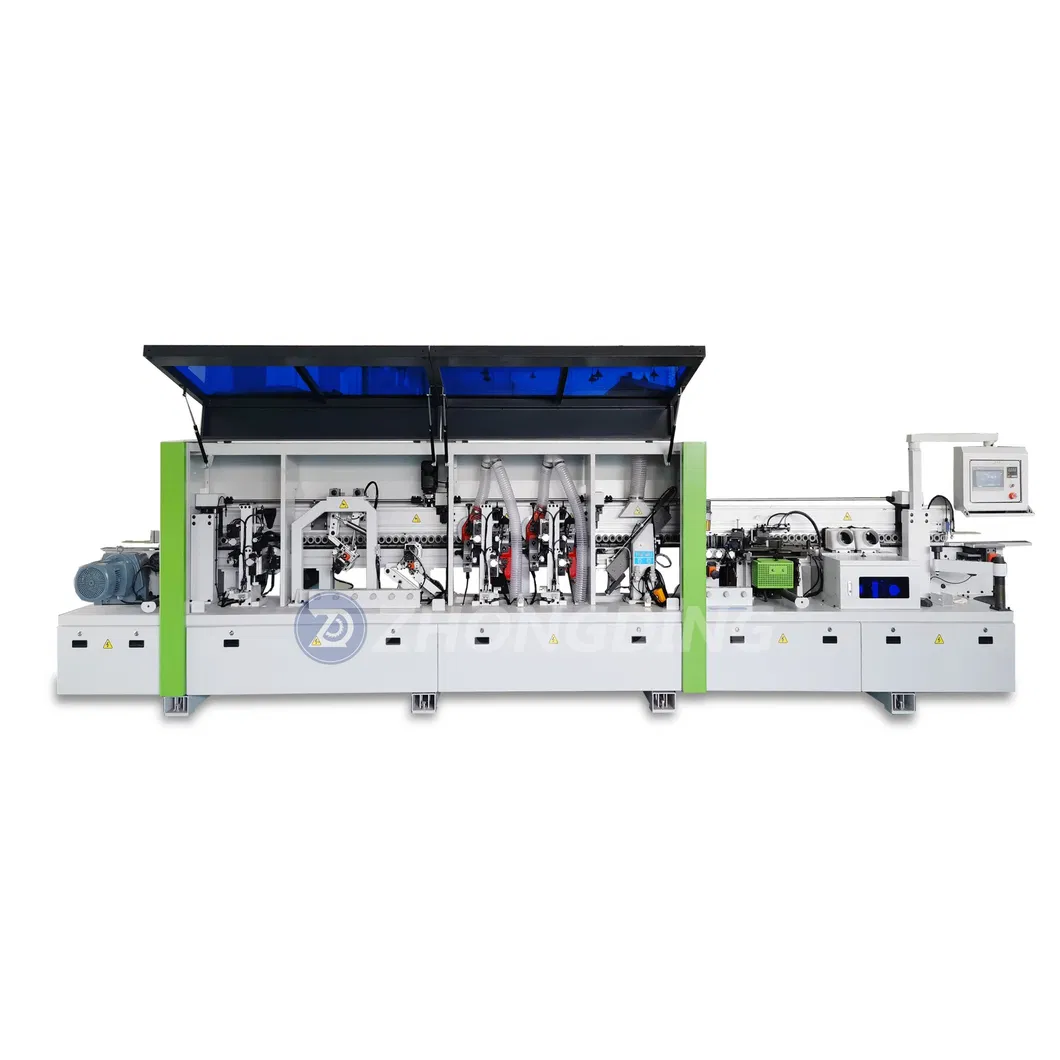

Edge Banding Machine
