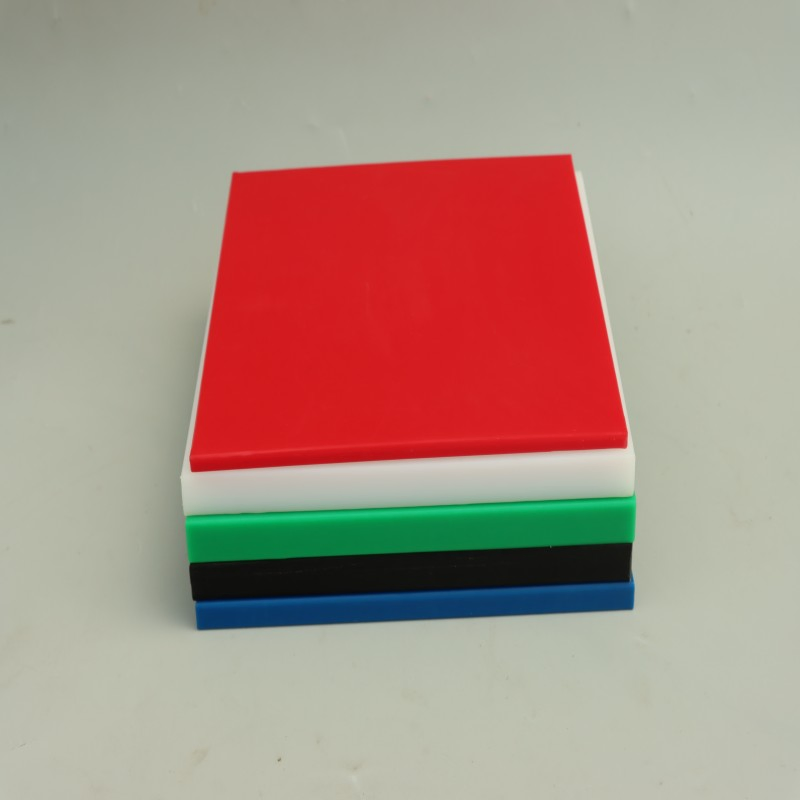

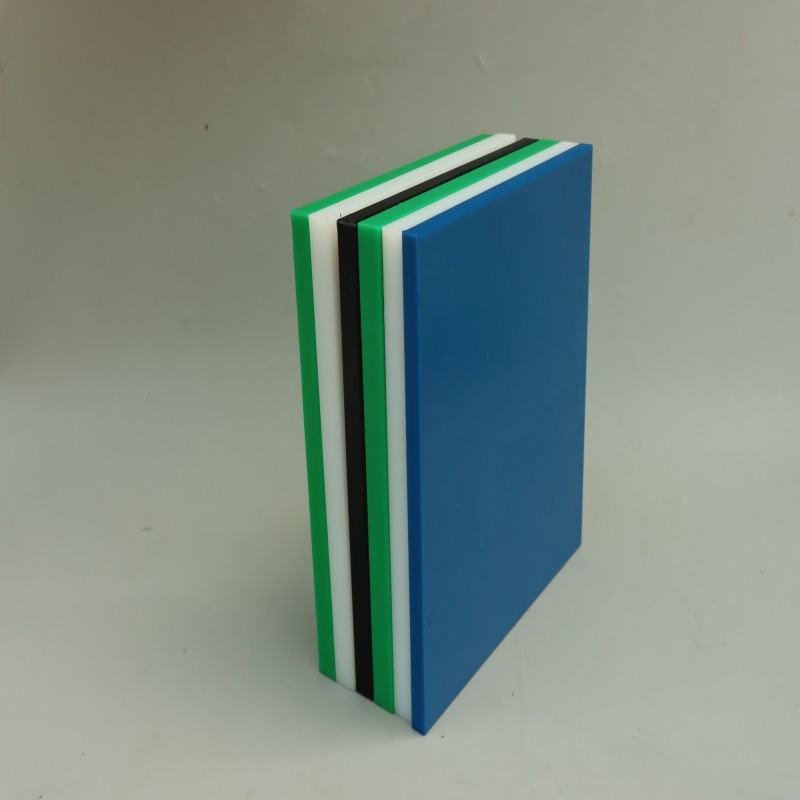

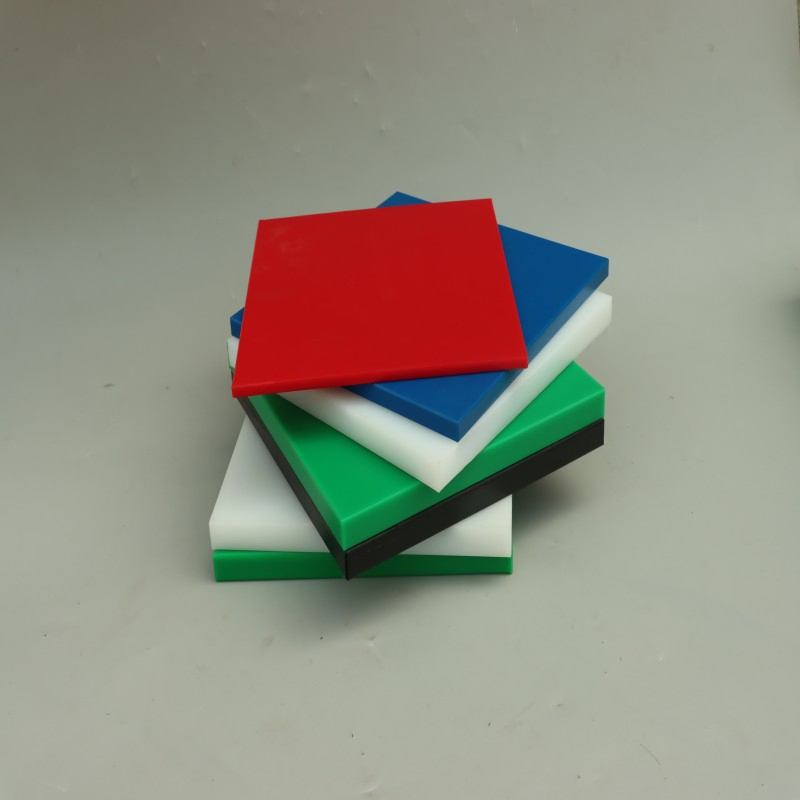

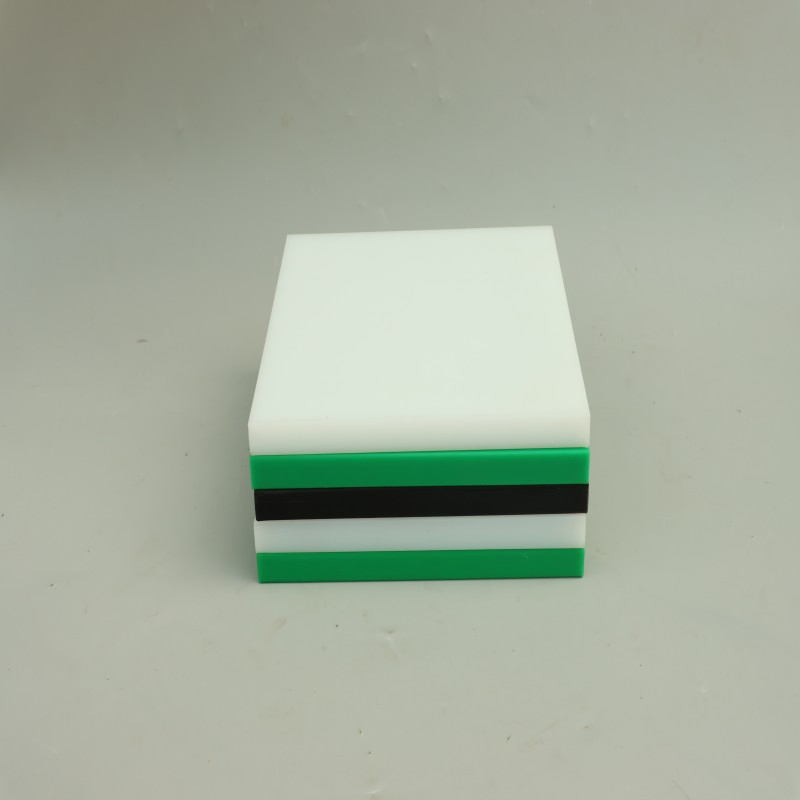

Food Grade Cutting Board Material White PE1000 Plastic Plate UHMWPE Sheet
Product Description
Material
HDPE
Forming Way
Compression
Material Properties
Chemical Resistance
Markets Served
Industrial
Usage
Exterior
Color
Multi Color
Certification
ISO 9001
Water Absorption
<0.01%
Tensile Strength
51~80MPa
Thickness
3-300 mm
HS Code
3920109090
Capacity
5,000,000 ton/Year
UHMWPE Sheet Expert
UHMWPE Sheet (Ultra High Molecular Weight Polyethylene) is a high-performance engineering plastic known for its excellent wear resistance, low friction, and impact strength. It is widely used in chute liners, conveyor systems, dock bumpers, and material handling equipment to reduce abrasion and extend equipment service life.
🛡️
Superior Wear Resistance
Longer service life under high load conditions.
Longer service life under high load conditions.
⚙️
Low Friction
Self-lubricating properties reduce maintenance costs.
Self-lubricating properties reduce maintenance costs.
🌊
Corrosion Resistant
Ideal for outdoor, chemical, and marine use.
Ideal for outdoor, chemical, and marine use.
🛠️
Easy Fabrication
Supports precise cutting, drilling, and CNC machining.
Supports precise cutting, drilling, and CNC machining.
🎨
Customizable
Flexible sizes and colors to suit different industries.
Flexible sizes and colors to suit different industries.
🏭
Direct Supply
Competitive factory pricing and fast delivery.
Competitive factory pricing and fast delivery.
| Property | Unit | Value | Test Standard |
|---|---|---|---|
| Density | g/cm³ | 0.93 – 0.96 | ASTM D792 |
| Tensile Strength | MPa | 20 – 35 | ASTM D638 |
| Impact Strength (Notched) | KJ/m² | No Break | ASTM D256 |
| Elongation at Break | % | ≥ 300 | ASTM D638 |
| Shore Hardness D | — | 65 – 70 | ASTM D2240 |
| Water Absorption (24h) | % | < 0.01 | ASTM D570 |
| Working Temperature | ℃ | -200 to +80 | — |
| Coefficient of Friction | — | 0.08 – 0.12 | ASTM D1894 |
| UV Resistance | — | Excellent | — |
- Conveyor chute liner plates for mining and quarry
- Hopper and silo liners for bulk material handling
- Bumper pads and dock fenders for ports
- Slide pads for mechanical equipment and logistics
- Ice rink side boards and impact protection plates
- Wear strips and machine components
✔️ ISO 9001 Quality Management Certified
✔️ CE Certification for Export
✔️ SGS Material Test Report Available
✔️ FDA food-grade standard compliance
1. What are the key benefits of using UHMWPE sheets?
UHMWPE offers exceptional wear resistance, extremely low friction (self-lubricating), high impact strength even at low temperatures, and excellent chemical resistance.
2. Can UHMWPE sheets be used for food contact applications?
Yes, our UHMWPE materials can be produced to comply with FDA food-grade standards, making them ideal for cutting boards and food processing machinery.
3. What is the temperature range for UHMWPE?
UHMWPE can operate in extreme conditions ranging from -200°C to +80°C. It maintains its impact strength even in cryogenic environments.
4. How does UHMWPE compare to HDPE in terms of wear?
While both are polyethylenes, UHMWPE has a much higher molecular weight, providing significantly better abrasion resistance and a lower coefficient of friction than standard HDPE.
5. Do you offer customized sizes and colors?
Yes, we provide full customization for thickness (3mm to 300mm), dimensions, and colors (White, Black, Blue, Green, etc.) to meet specific project requirements.
6. What industries commonly use these sheets?
Common industries include mining, material handling, marine (dock fenders), food processing, logistics, and sports (artificial ice rinks).
