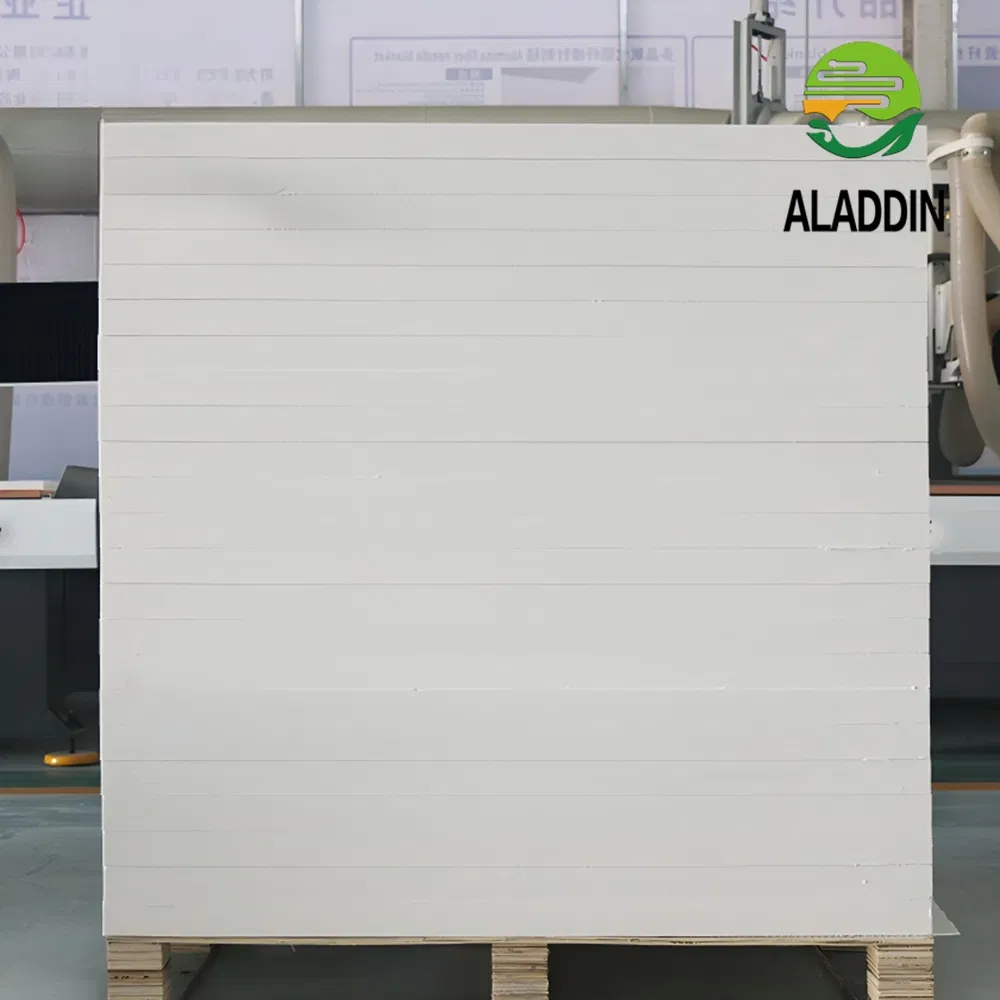

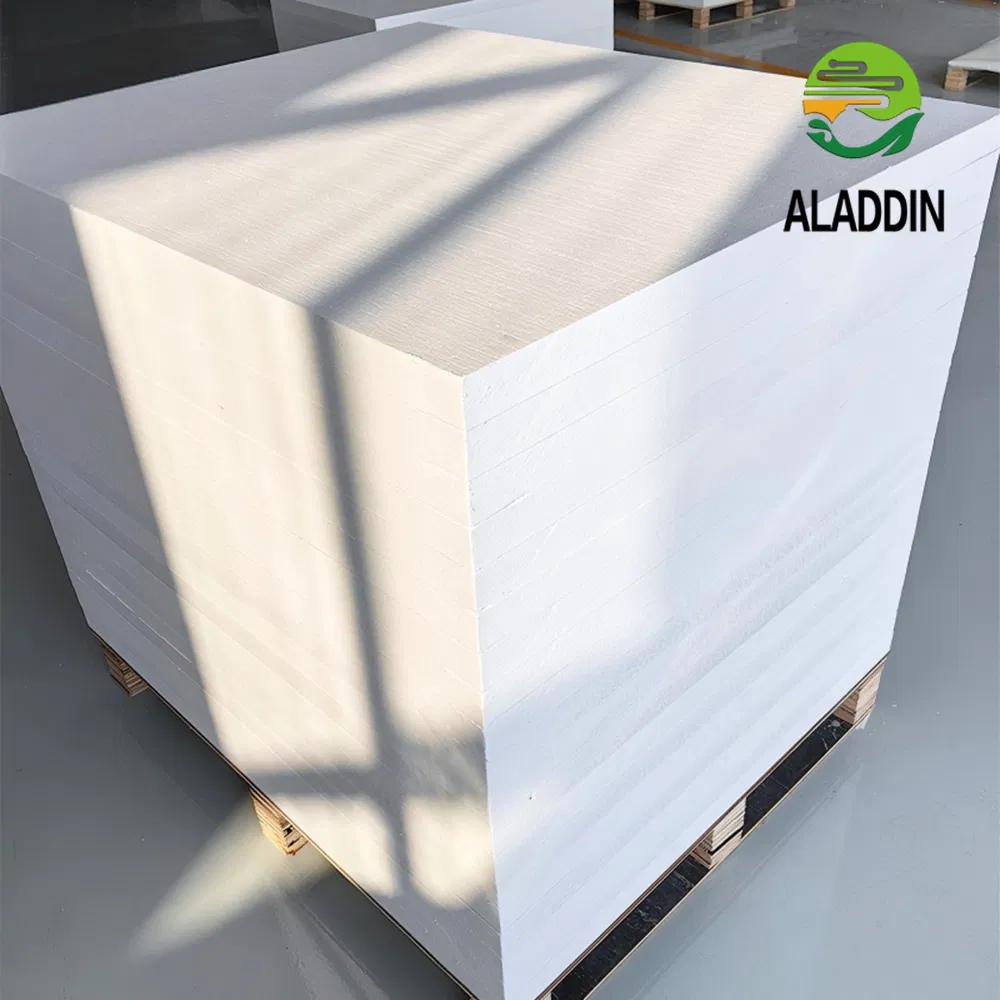

Ceramic Fiber Board Cutting and Blanking Services Provided: Reduces on-Site Processing
Product Description

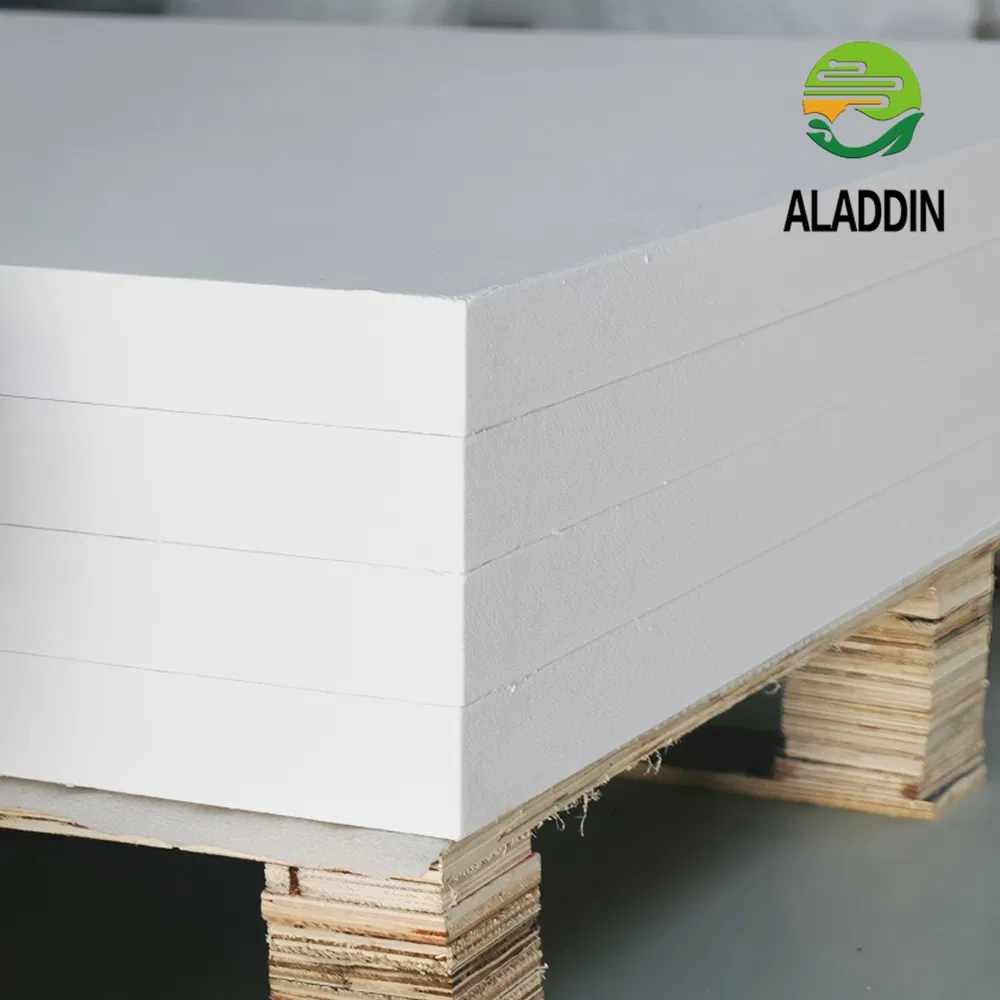

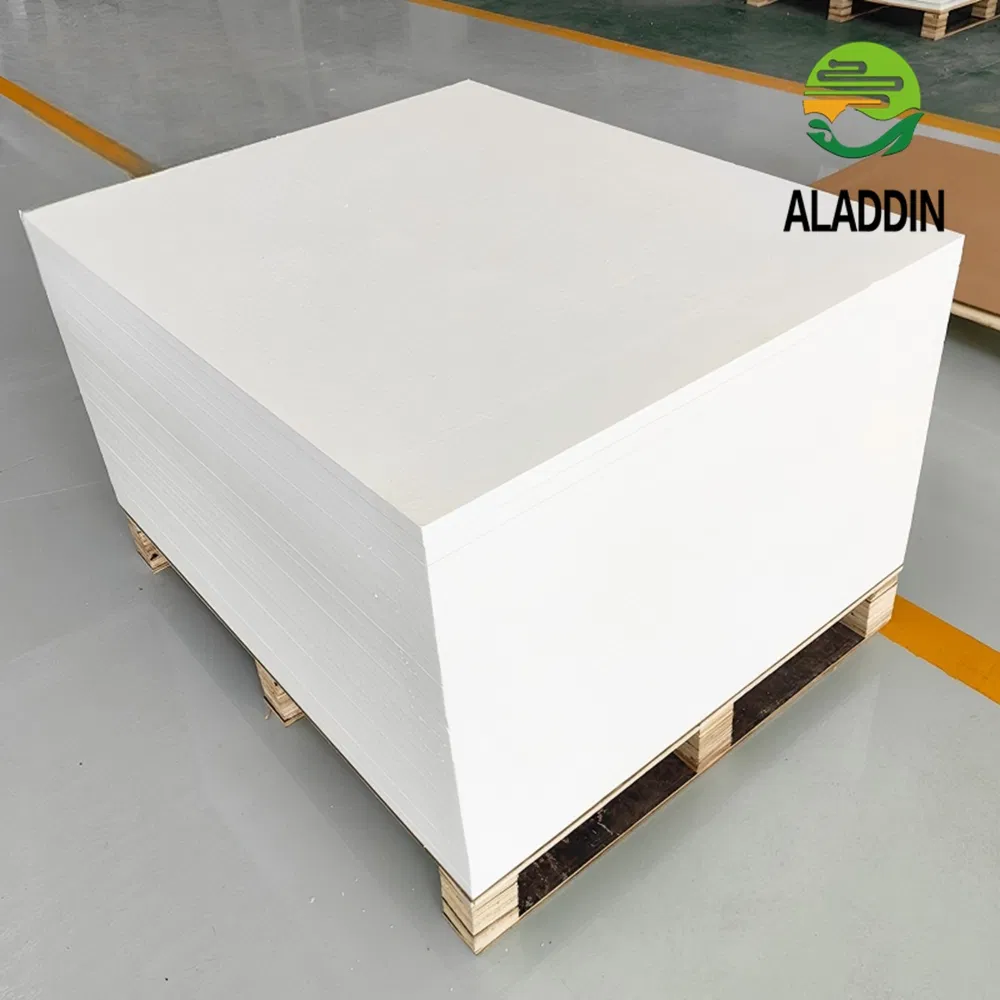

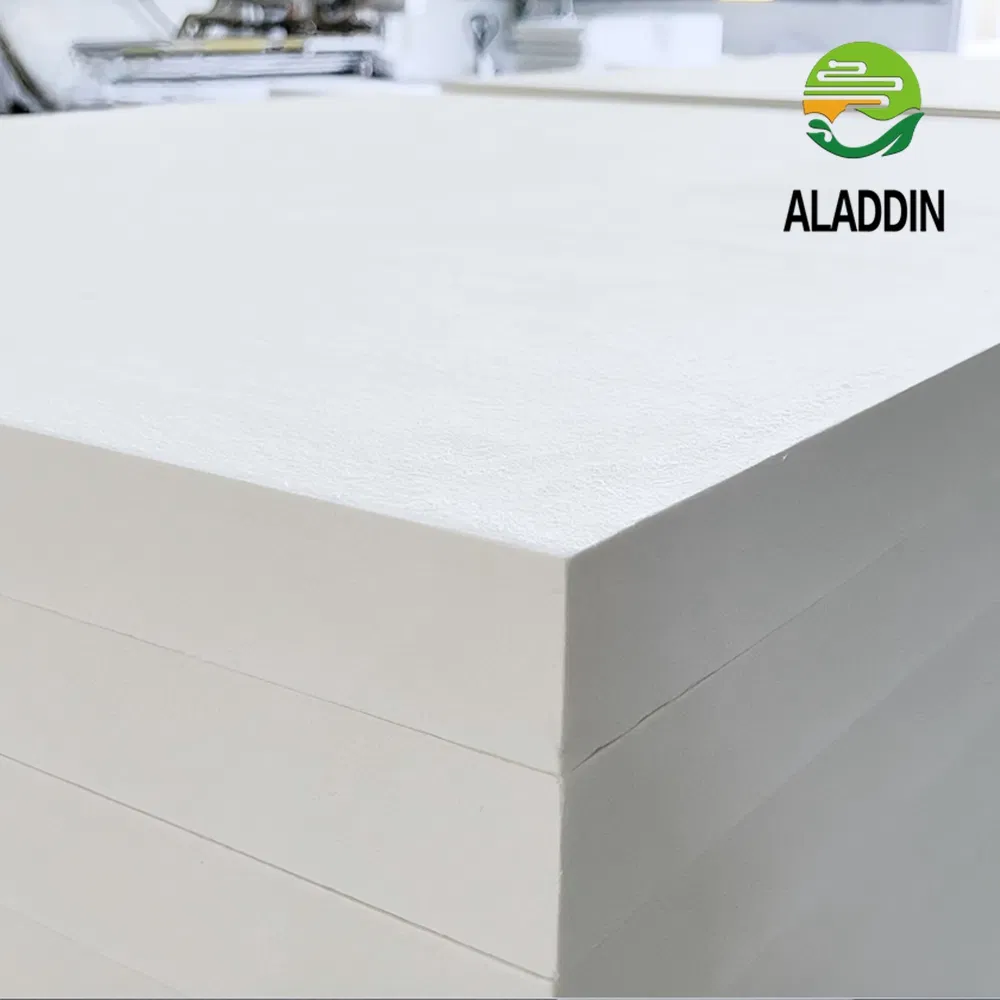

Ceramic Fiber Board Series are rigid board products made from ceramic fiber bulk, added with appropriate amounts of organic binders and inorganic adhesives. The products undergo vacuum forming, drying, and precision processing. They can be sintered to form inorganic fiber boards; alternatively, their organic properties can be retained if the application scenario is compatible with organic materials.

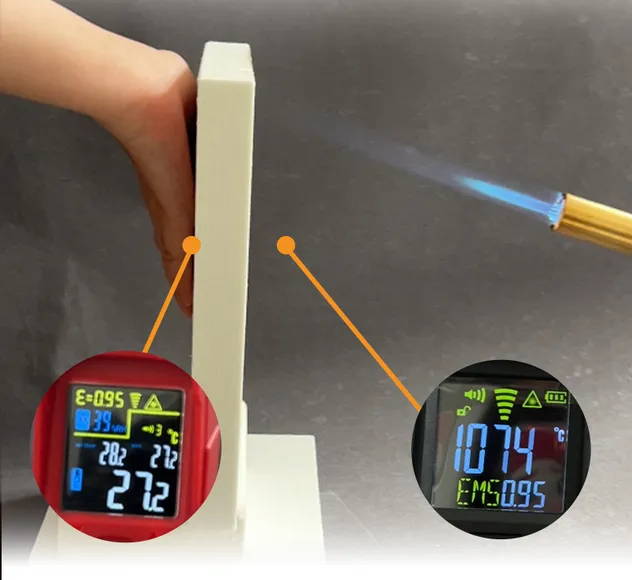

- Low thermal conductivity and low heat capacity.
- Excellent thermal shock and corrosion resistance.
- Uniform density and hardness with good internal bonding strength.
- Excellent post-fire strength and resistance to thermal jet erosion.

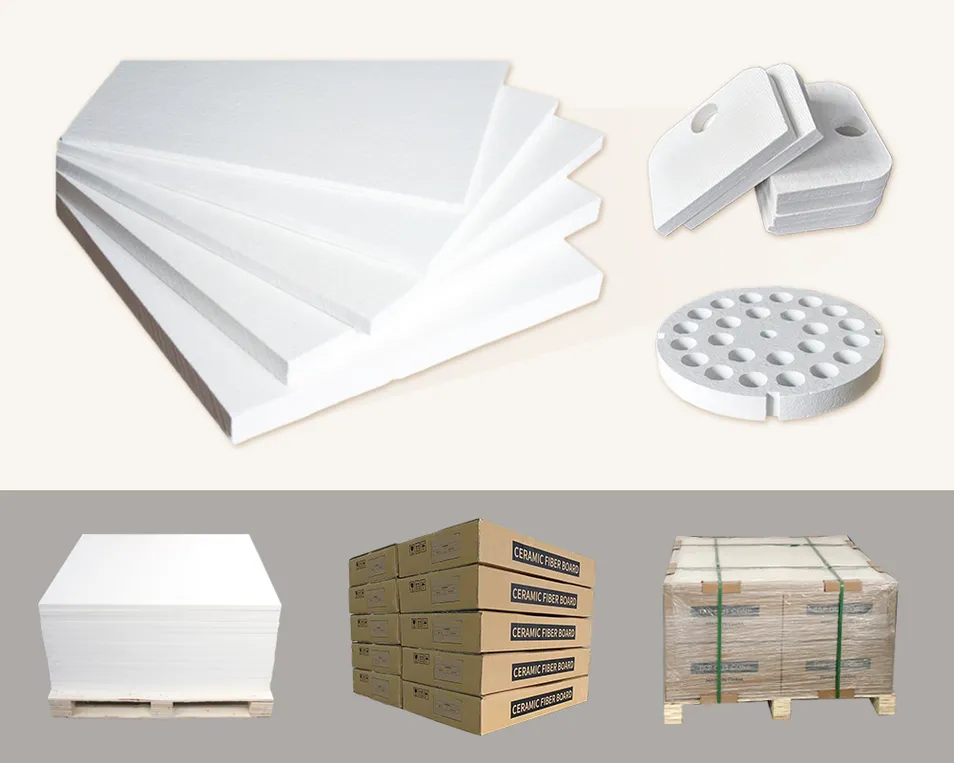

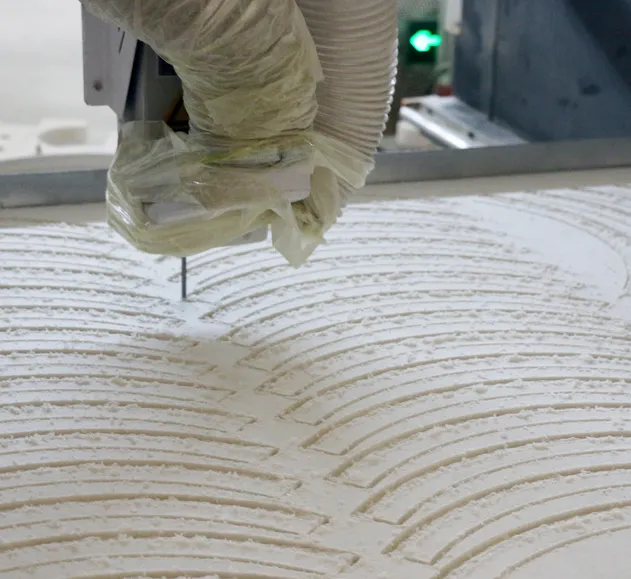

- Easy to cut, convenient for installation and use.
Refractory thermal insulation materials for ladle back lining, bell-type furnace, tunnel kiln, roller kiln and aluminum melting furnace. Thermal treatment furnace insulation lining and backing materials. Ceramic kiln insulation lining and backing materials.
| Product Name | STD | HP | GL | HA | Zr | CHr | Bio-soluble | |
|---|---|---|---|---|---|---|---|---|
| Classification temp (℃) | 1260 | 1260 | 1350 | 1400 | 1430 | 1500 | 1200 | |
| Density (Kg/m³) | 300±10% | |||||||
| Flexural strength (MPa) | ≥0.8 | |||||||
| Loss on ignition (%) | ≤8 | |||||||
| Thermal conductivity W/(m·K) | 400℃ | 0.08 | ||||||
| 600℃ | 0.11 | |||||||
| 800℃ | 0.15 | |||||||
| 1000℃ | 0.19 | |||||||

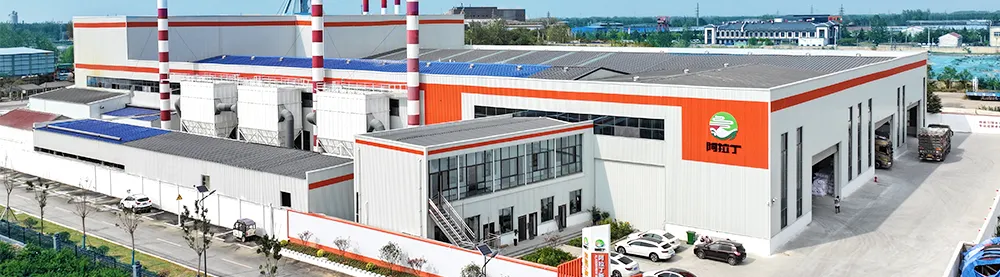

Founded in 1996, thermal management is at our core. With 30 years of experience, our high-temperature resistant products deliver reliable solutions for metallurgy, petrochemicals, and power industries. Our production bases cover over 117,000 m² with advanced specialized lines for ceramic fiber products.
