Heavy-Duty Fully Automated 3-Layer Corrugated Board Cutting Machine
Product Description
⚙️ Basic Information
Model NO.
3/5/7-layer corrugated carton production line
Condition
New
Automation
Automatic
Suitable for
Paper
Paper Thickness
Thick Paper
Production Capacity
5,000 Units Produced Per Year
📦 Product Description

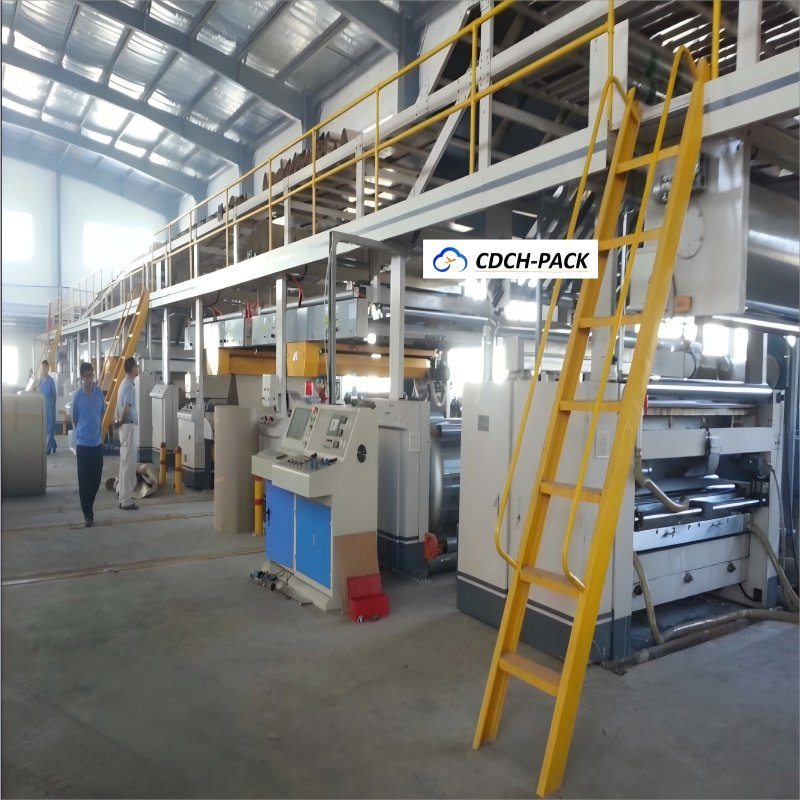

WJ-150-2200-III Seven-Layer Corrugated Cardboard Production Line
This production line is certified under ISO: 9001-2008 standard quality management systems. It is designed for high-efficiency manufacturing of 3, 5, and 7-layer corrugated boards.
✦Max Width: 2200mm
✦Design Speed: 150m/min
✦Splicing Speed: Up to 250m/min
✦Accuracy: Longitudinal/Cross-cutting accuracy ±1mm

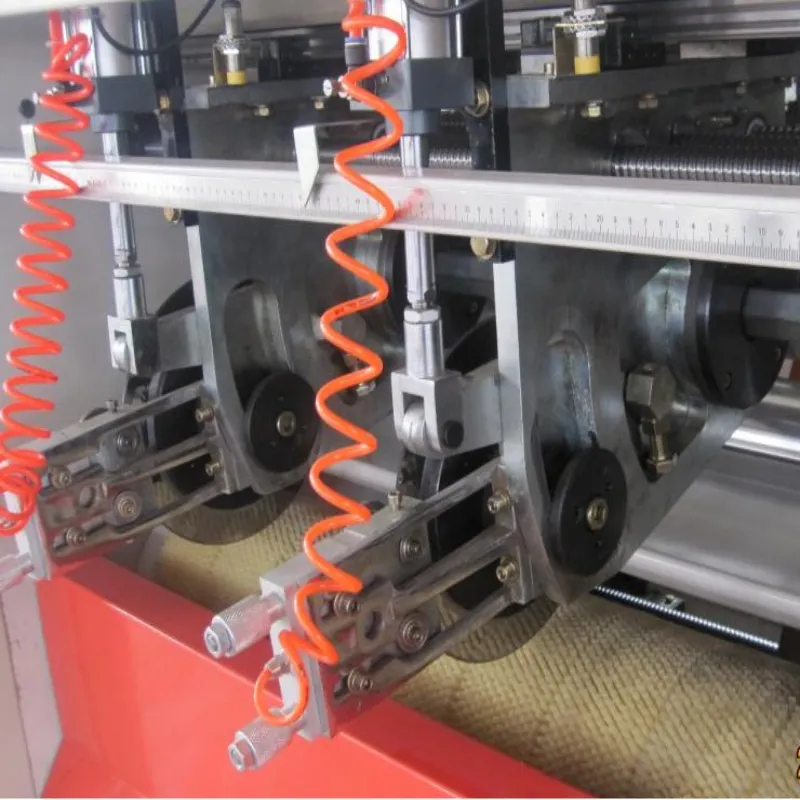

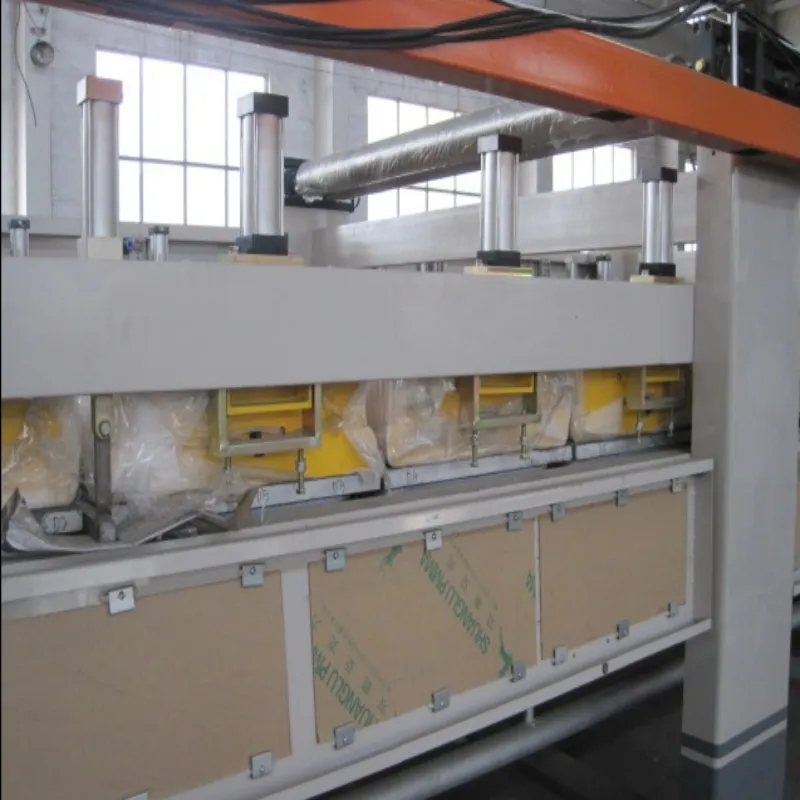

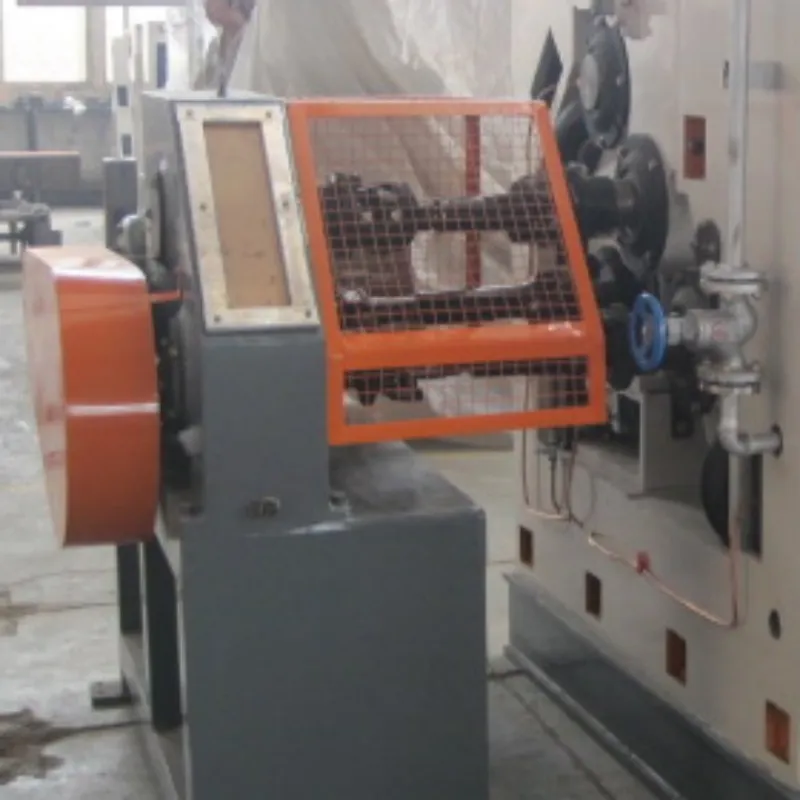

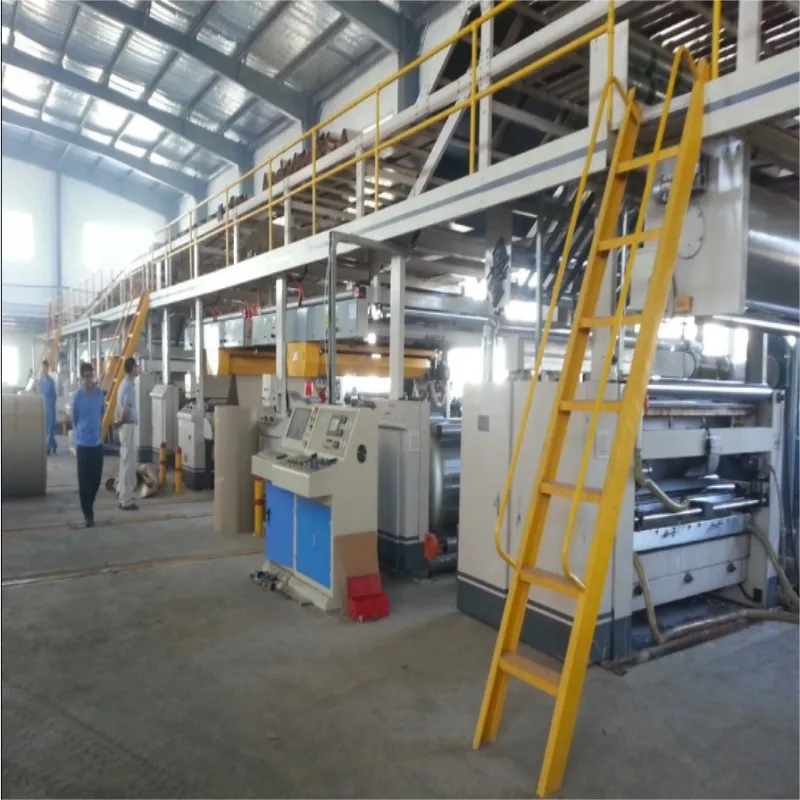

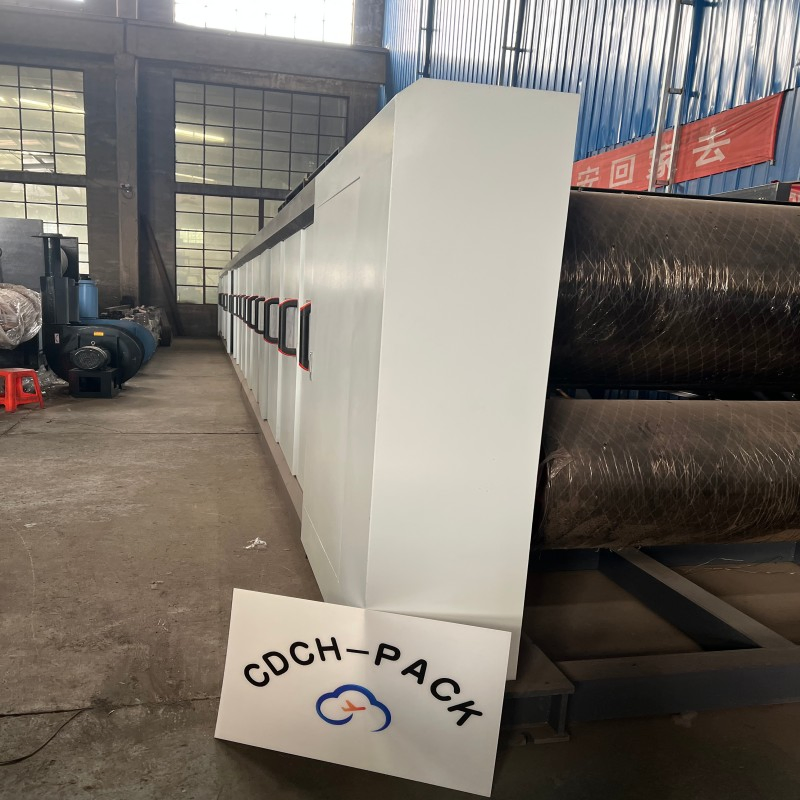

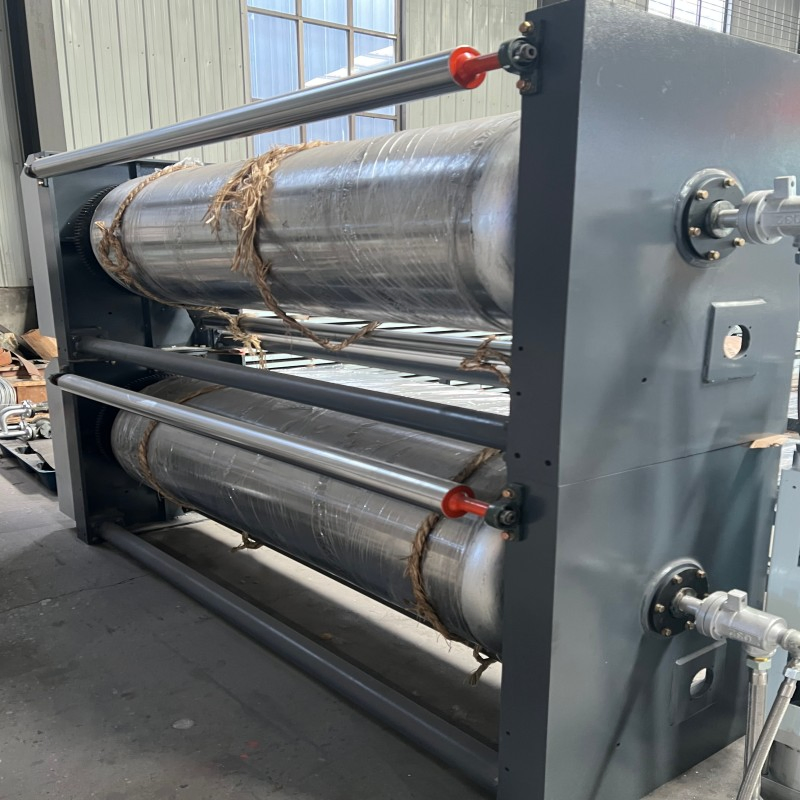

🖼️ Detailed Equipment Photos
📊 Configuration & Parameters
| Model | Name | QTY | Technical Highlights |
|---|---|---|---|

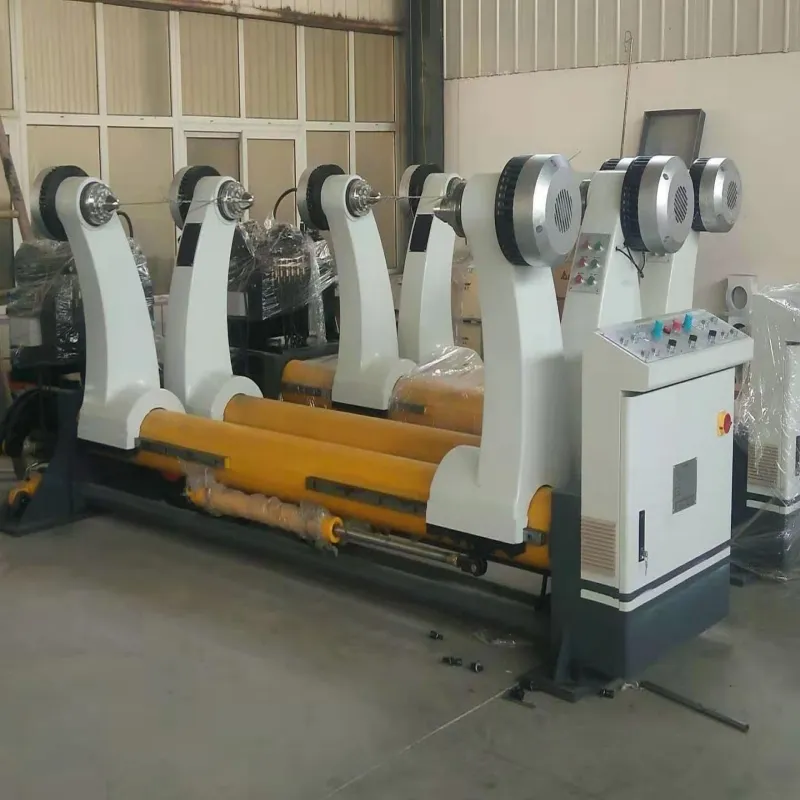

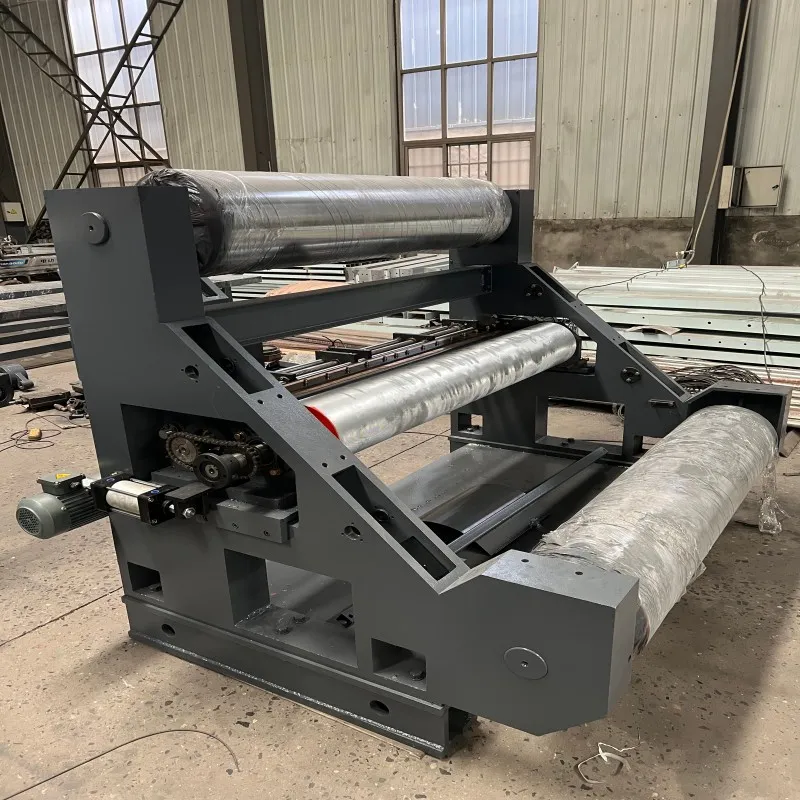

| ZJ-V5B | Hydraulic Shaftless Mill Roll Stand | 7 | Spindle ¢240mm, multi-point brake, hydraulic drive. |
| JZJ | Automatic Splicer | 7 | Max speed 150m/min, reduces paper consumption. |

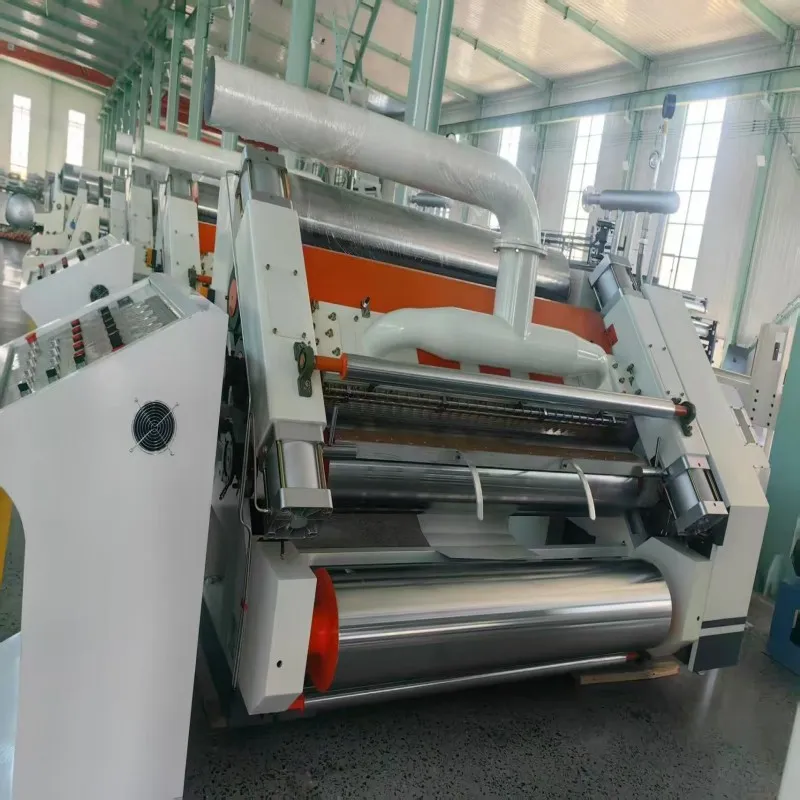

| SF-320C | Single Facer | 3 | 48CrMo alloy steel roller (¢320mm), PLC glue control. |
| GM-20 | Glue Machine | 1 | Roller ¢269mm, PLC gap adjustment. |

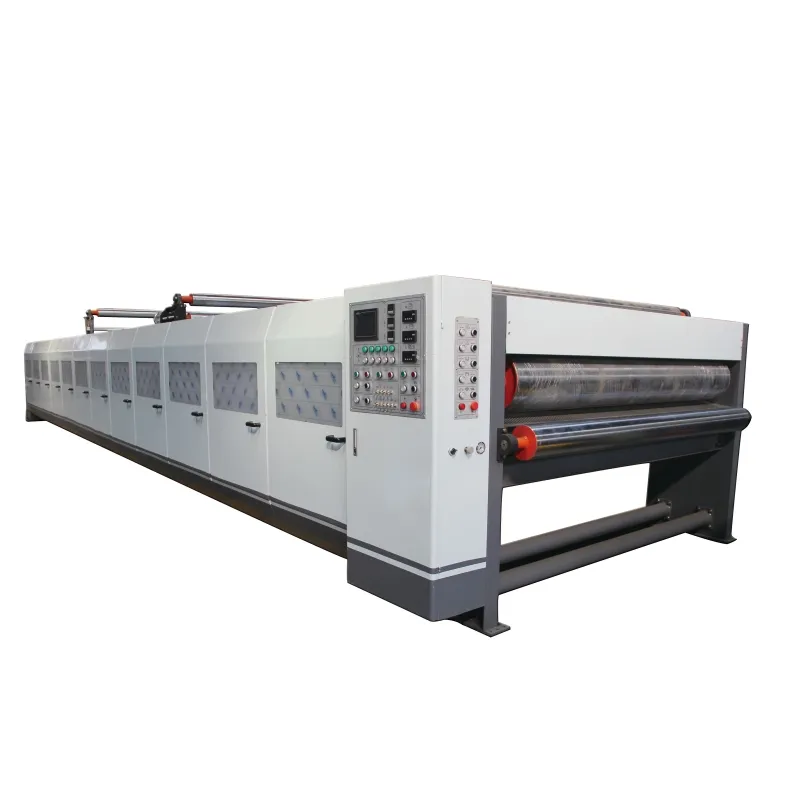

| SM-F | Double Facer | 1 | Chrome hot plates (16 pcs), frequency motor control. |
| NC-150 | Computer Spiral Knife Crosscutter | 1 | Spiral blade, Servo drive, 200 orders storage. |
| DM-LM | Gantry Stacker | 1 | Servo lifting, automatic counting, high-strength belt output. |
🚀 Core Advantages
✔Efficient Production: Design speed 150m/min with 3-second order change time.
✔Precise Control: Servo motor + PLC system ensures ±1mm accuracy.
✔Energy Saving: Segmented temperature control saves up to 70% electricity.
✔High Quality: 48CrMo alloy rollers ensure superior board strength.
✔Full Automation: Integrated PLC control from splicing to stacking.
🏢 Manufacturing Excellence
❓ Frequently Asked Questions
What is the maximum production width for this line?
The WJ-150-2200-III production line supports a maximum paper width of 2200mm.
What is the design speed and working speed?
The design speed is 150m/min. For practical production, 3-layer boards work at 100-130m/min and 5-layer boards at 80-100m/min.
What kind of control system does the equipment use?
The system utilizes Delta variable frequency control, OMRON switches, and German Kobe flying shear servo systems for high precision.
How many orders can the computerized cross-cutting machine store?
The NC-150 cross-cutting machine can store up to 200 sets of orders for non-stop order changes.
What are the power and steam requirements?
It requires approximately 220KW installed capacity and a steam consumption of 2.5-3 tons/hour with 10-12kg/cm² pressure.
What materials are the corrugated rollers made from?
The corrugated rollers are made of 48CrMo alloy steel, ensuring durability and high-quality board formation.
