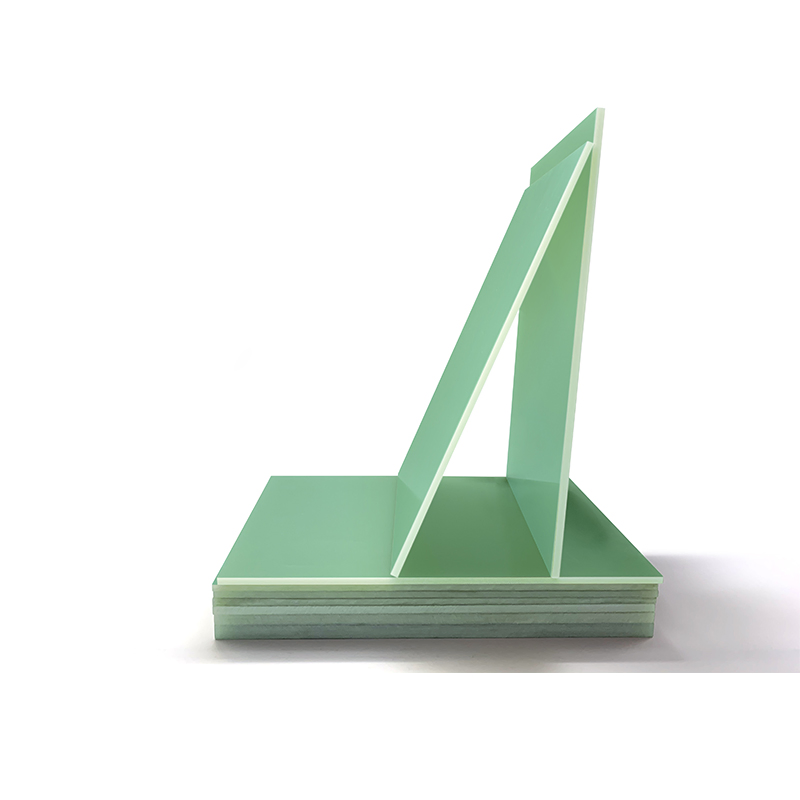

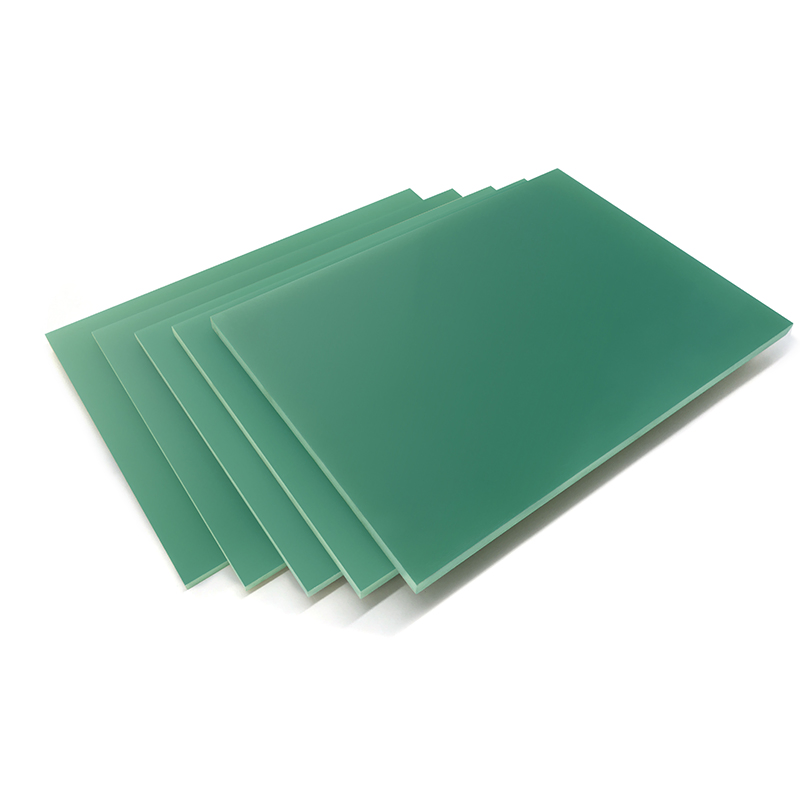

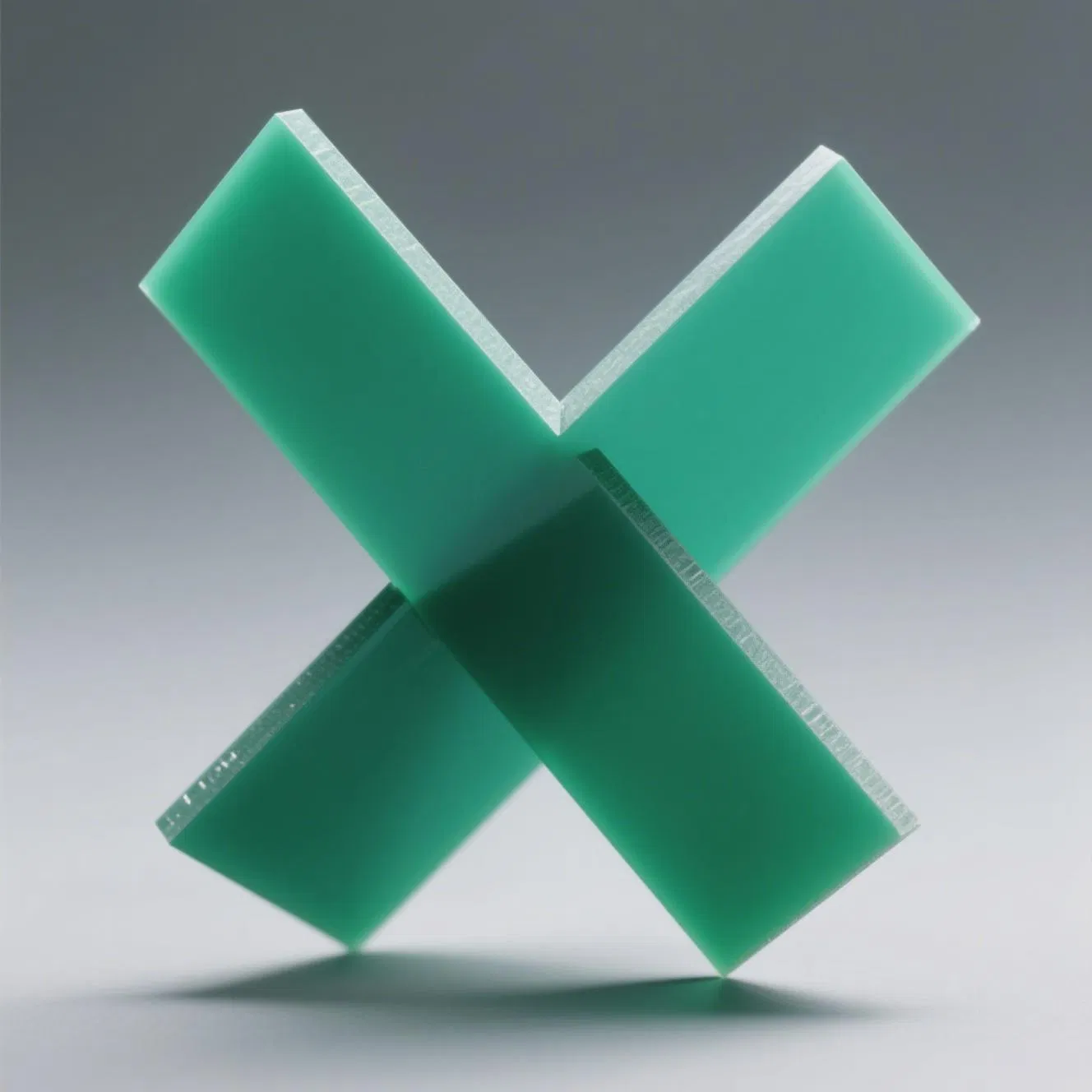

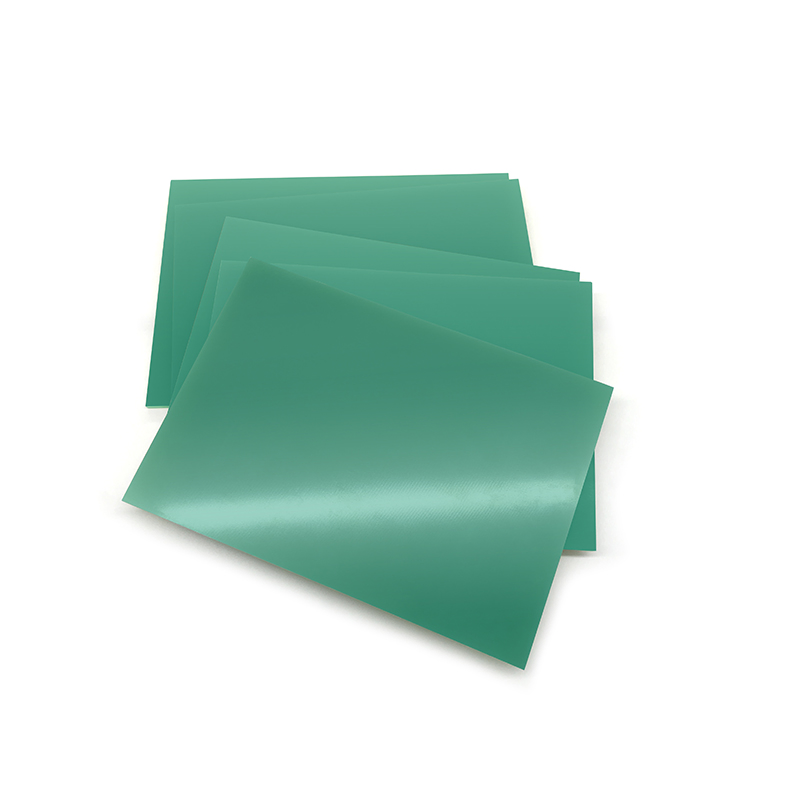

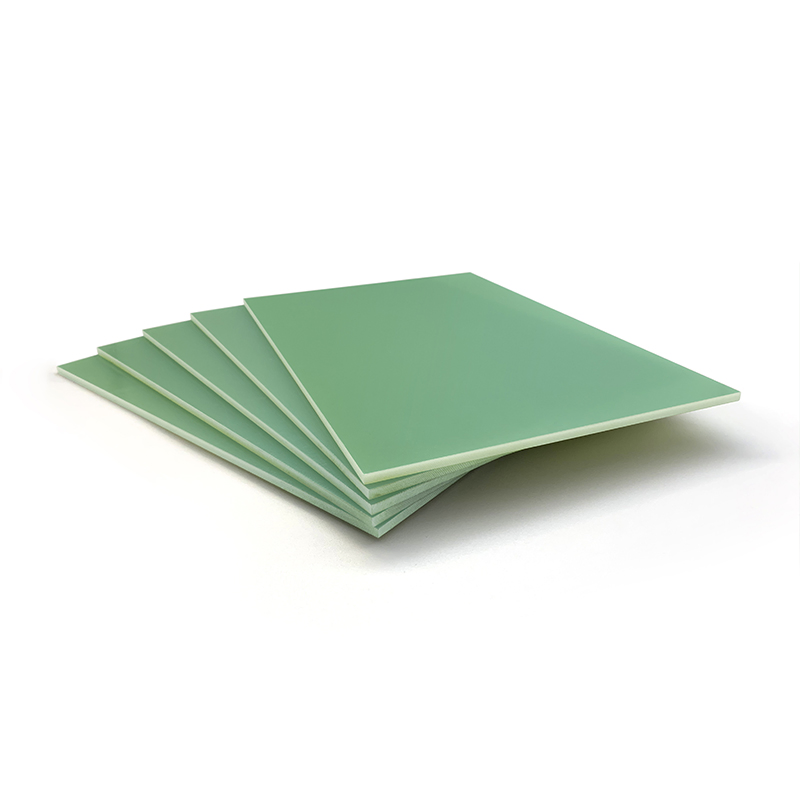

Customized Fr-4 Board - on-Demand Cutting of Electronic Circuit Base Material
Product Description
Basic Information
Material:Insulation Sheet
Maximum Voltage:<10KV
Thermal Rating:B 130
Thickness:1mm~60mm
Certification:ISO, ISO9001:2008
Tensile Strength:400MPa
Keywords:Fr4 Fiberglass
Sample:Free Sample
Density:1.8-2.0g/cm3
Rated Voltage:220V
Type:Insulation Sheet
Dimension:1020X1220mm, 1020X2040mm, 1220X2440mm
Heat Resistance:F Class
Color:Yellow, Green, Black
Packaging & Delivery
Package Size:100.00cm * 120.00cm * 20.00cm
Gross Weight:50.000kg
Packing Method:Export Packaging on Pallet
Product Description

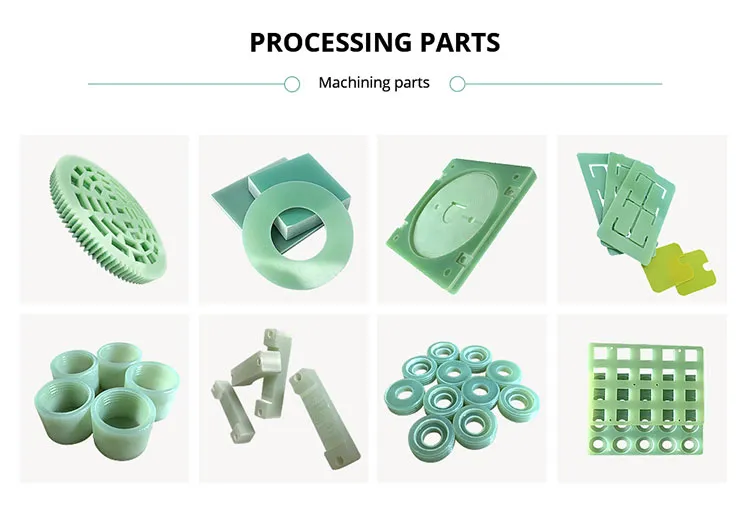

G10 glass epoxy is a composite sheet material that consists of glass fabric, electrical grade epoxy resin. The material is extremely strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. Custom cuts available.
Available Specifications:
Size: 1020*1220mm; 1020*2020mm; 1220*2020mm
Thickness: 0.2mm-150mm
Color: Green, Yellow, Black
Size: 1020*1220mm; 1020*2020mm; 1220*2020mm
Thickness: 0.2mm-150mm
Color: Green, Yellow, Black
| No. | Index name | Unit | Value |
|---|---|---|---|
| 1 | vertical bending strength | MPa | ≥340 |
| 2 | parallel impact strength | KJ/m2 | - |
| 3 | water absorbency | mg | - |
| 4 | vertical electrical strength | Kv/mm | 13-19.5 |
| 5 | vertical layer voltage resistance | KV | - |
| 6 | parallet layer breakdown voltage | KV | ≥35 |
| 7 | dielectric constant | / | ≤5.5 |
| 8 | dielectric loss factor | / | ≤0.04 |
| 11 | heat resistance grade | / | ≥5x104 |
Frequently Asked Questions
How about providing samples?
We can send you a sample for free. Customers just need to pay a small shipping charge.
How about the quality of mass production?
Our warehouse staff will maintain a reference sample identical to yours. The production process strictly follows your requirements.
How about the delivery time?
It depends on the order quantity. Generally, the delivery time is within 3 to 7 days.
How about the packaging?
We use professional craft paper to package on plywood pallets. Special packaging requirements can also be met upon request.
How about the payment terms?
For payments ≤1000 USD, 100% in advance. For payments ≥1000 USD, 30% T/T in advance, with the balance due before shipment.
Is customization for size and color available?
Yes, we offer on-demand cutting and support customized colors including Green, Yellow, and Black based on your specifications.
